1/2-20UNF Automatic Thread Rolling Machine

1/2-20UNF Automatic Thread Rolling Machine is compact, solid, reasonable design, easy maintenance and other characteristics by the majority of customers. This product is better than other similar models of products for normal thread, shaped bolts, thread thread processing, free transfer disorder.
Process diameter:
max 56mm
Power:
7.5kw
Weight:
1800kg
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Z28-150

  • greatcity

  • 8463200000

automatic thread rolling machine 1/2-20UNF Thread Rolling Machine automatic thread rolling machine 1/2-20UNF
Product Description

1/2-20UNF Automatic Thread Rolling Machine



What is the Characteristic of automatic thread rolling machine


It is a multifunctional cold extrusion rolling thread machine, the workpiece in the cold rolling pressure range can be made to straight lines, twill, spur, helical and bevel gear spline rolling; straightening, necking, rolling light and various rolling forming. The machine has safe and reliable electric liquid control system and implementation, which can make each work cycle in manual, semi-automatic and automatic selection in three ways. The cold rolling is an advanced non cutting process, which can effectively improve the internal and surface quality of workpiece, the radial compressive stress produced during processing, and can significantly improve the fatigue strength and torsion strength of the workpiece. It is an ideal process with high efficiency, energy saving and low consumption.


What is the Technical Parameter of automatic thread rolling machine



   Model
Z28-150
Biggest rolling dia
56mm
Min rolling dia
5mm
Main power
5.5kw
Hydraulic power
2.2kw
Dimensions
1550*1550*1450mm
Weight
2000kg

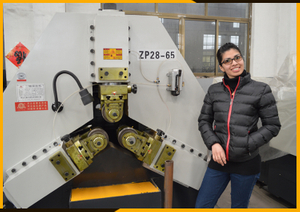

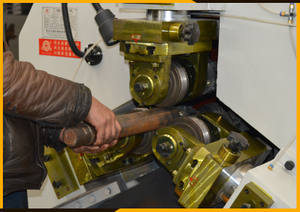

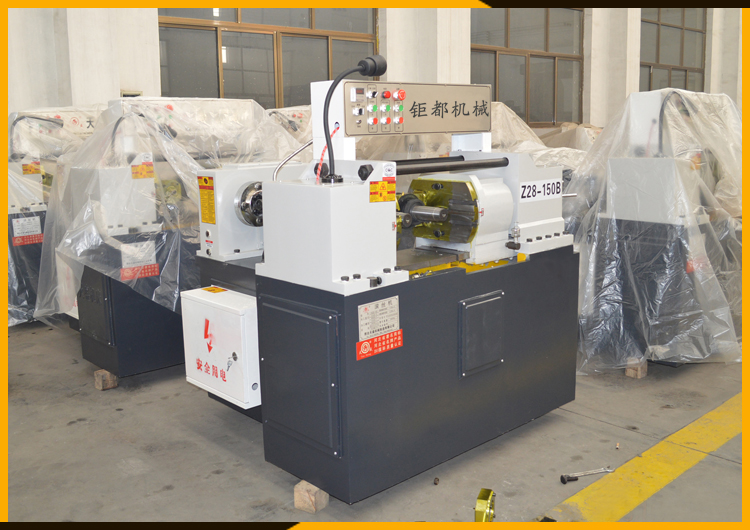

Detailed photos of automatic thread rolling machine

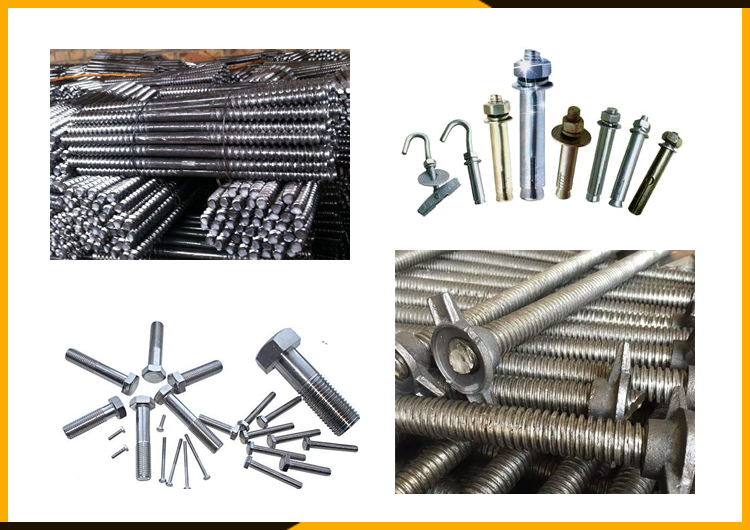

sample of thread rolling machine - judutechnologyjudutechnology - automatic thread rolling machinejudutechnology - thread rollerjudutechnology - screw bar of thread rolling machine


Full set parts together with the automatic thread rolling machine


parts of thread rolling machine - judutechnology


FAQ:


  1. Do you have any warranty?
    Yes, we have. Two years warranty on host machine is given. Six months free replacement warranty for spare parts.

    2. How is your after-sale service?
    We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

    3. What certification of stud rod thread rolling machine do you have?
    All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.

    4. Will you teach how to use the stud rod thread rolling machine?
    Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.

    5. How about the shipment?
    The machine will be shipped within 2-3 days after the receipt of your payment.

    6. Can visit your factory?
    Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
