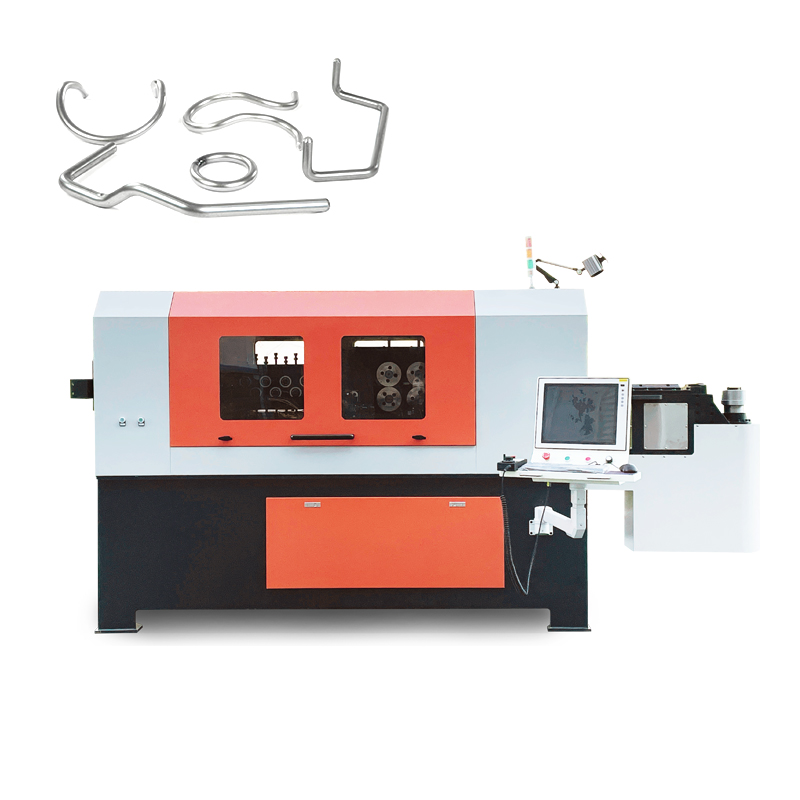

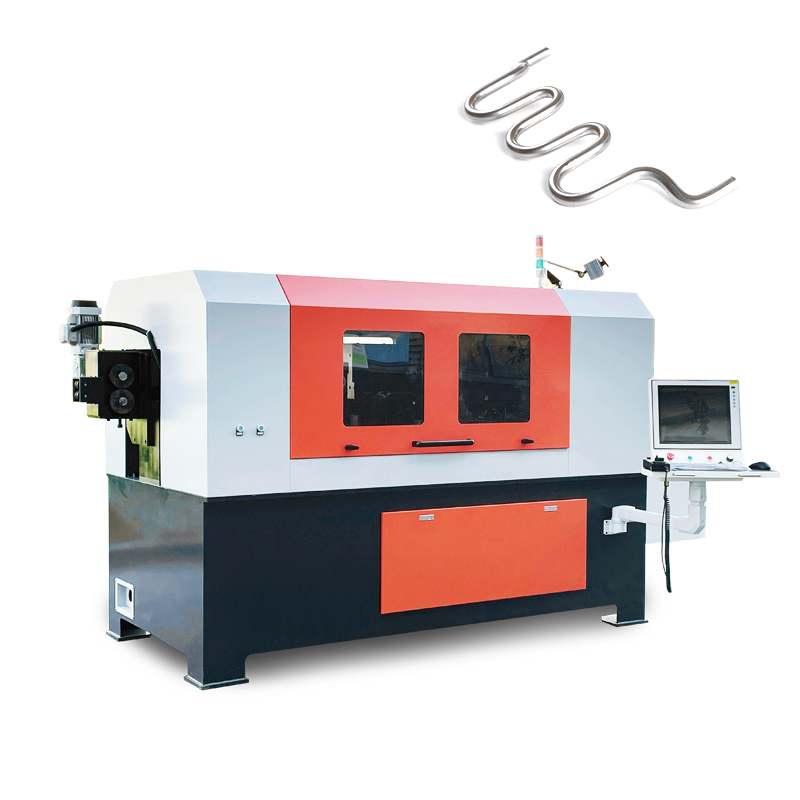

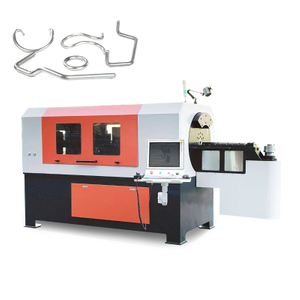

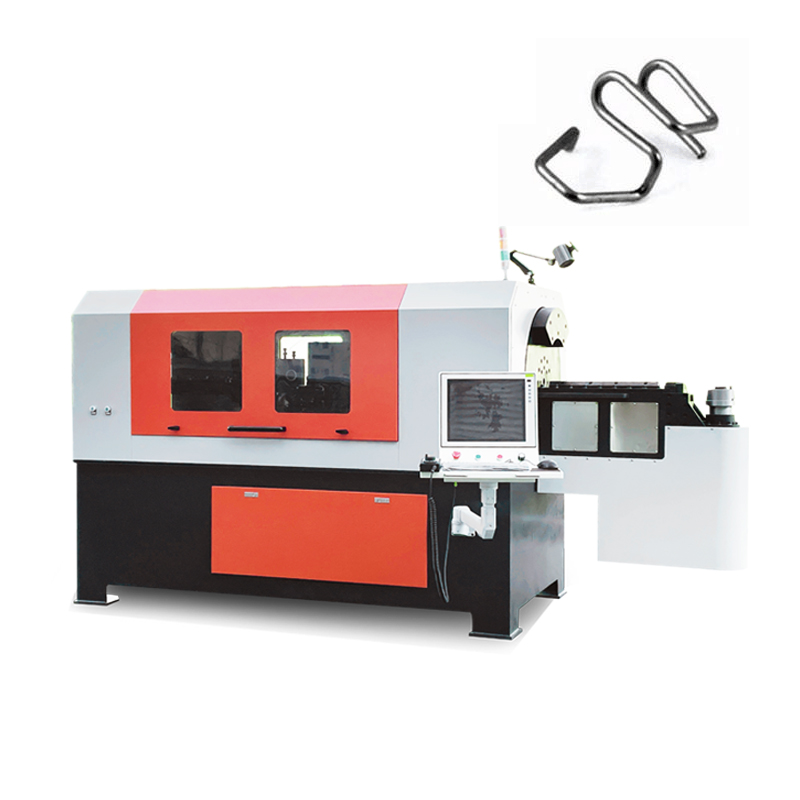

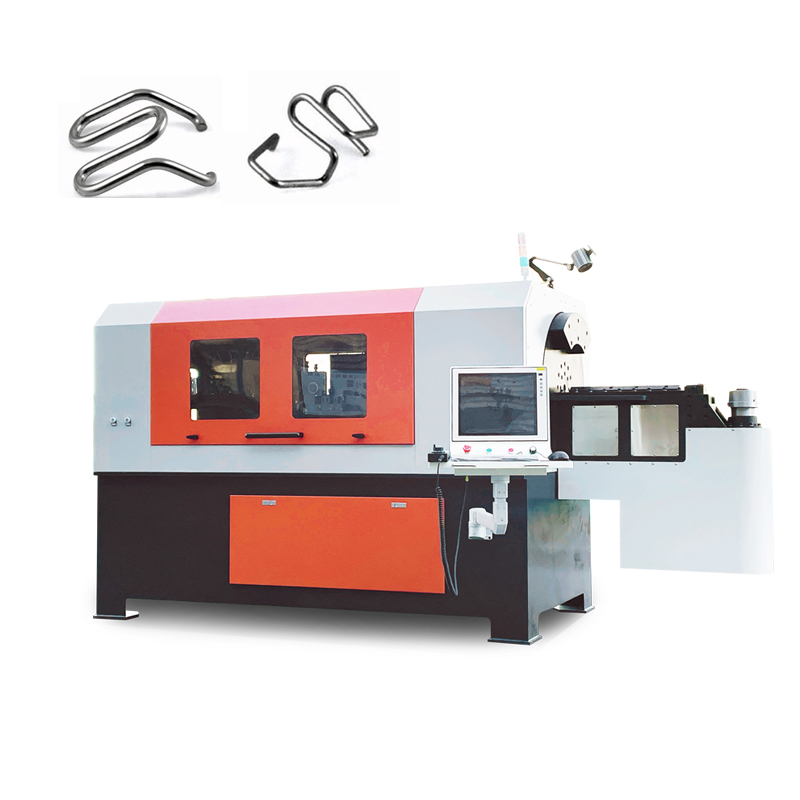

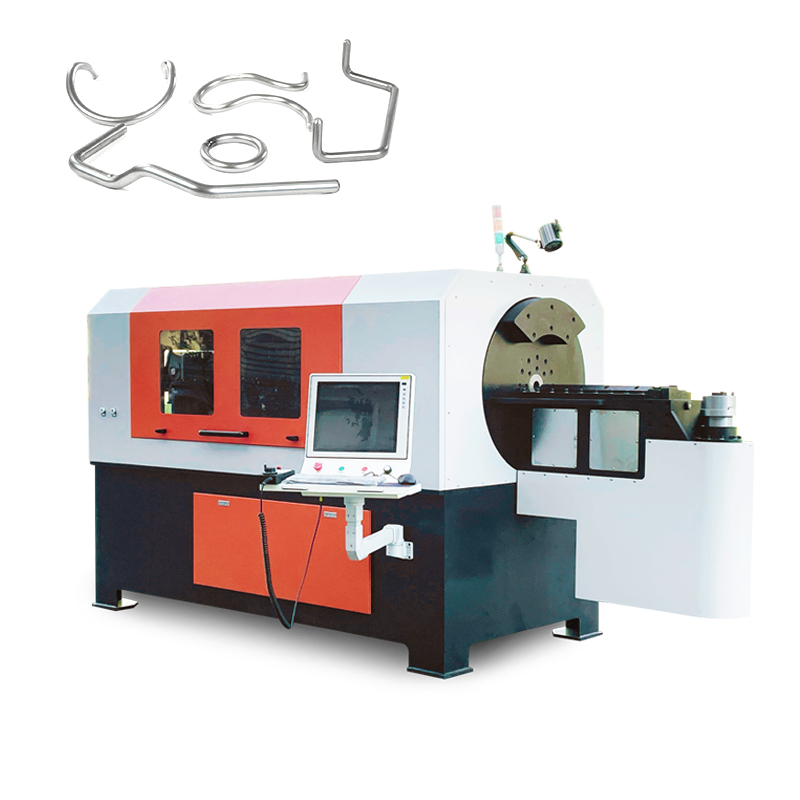

16mm Large Wire Diameter Wire Bending Machine CNC Wire Bender Machine

The ZD-3D-8016 wire bending machine is suitable for 8-16mm round and flat wire and iron wire. The machine adopts Yaqi servo motor and Yaqi CNC control system, and can store 10000 workpieces. It has functions such as wire feeding, turning, bending, cutting, and lifting, and is easy to operate. The equipment is equipped with a Taiwan Faston helical gear reducer, which has high precision and durability. The important components such as bearings and gears are all imported parts, with a one-year warranty. The 3D wire bending machine is durable and reliable, with quality assurance, and can meet customers' needs for high standard wire forming production. At the same time, all machines come with operation manuals when they leave the factory. We have a complete after-sales service system, and our company provides on-site guidance, installation, debugging, and teaching services, or remote video training. The wire bending machine comes with operation manuals that can also be read and operated by oneself.
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • ZD-3D-8016

  • Greatcity

wire bending machine Cnc Wire Bender Machine Wire Bender Machine
Product Description

16mm Large Wire Diameter Wire Bending Machine CNC Wire Bender Machine

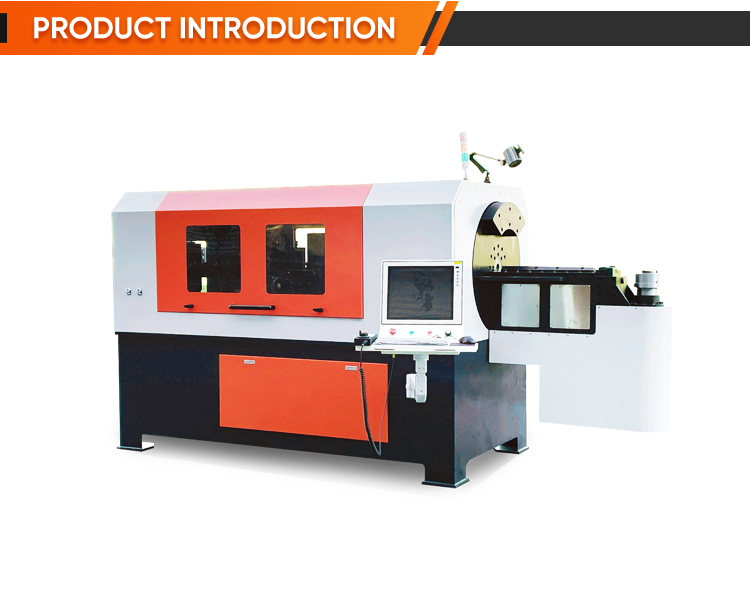

Product Introduction

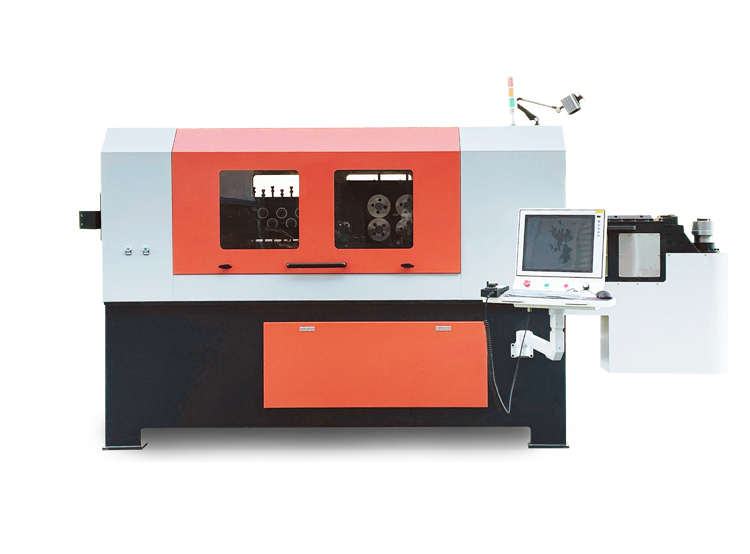

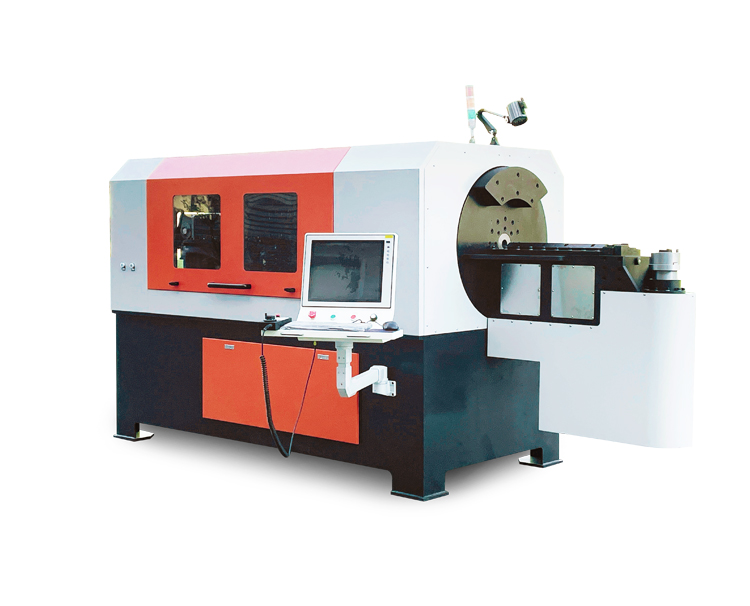

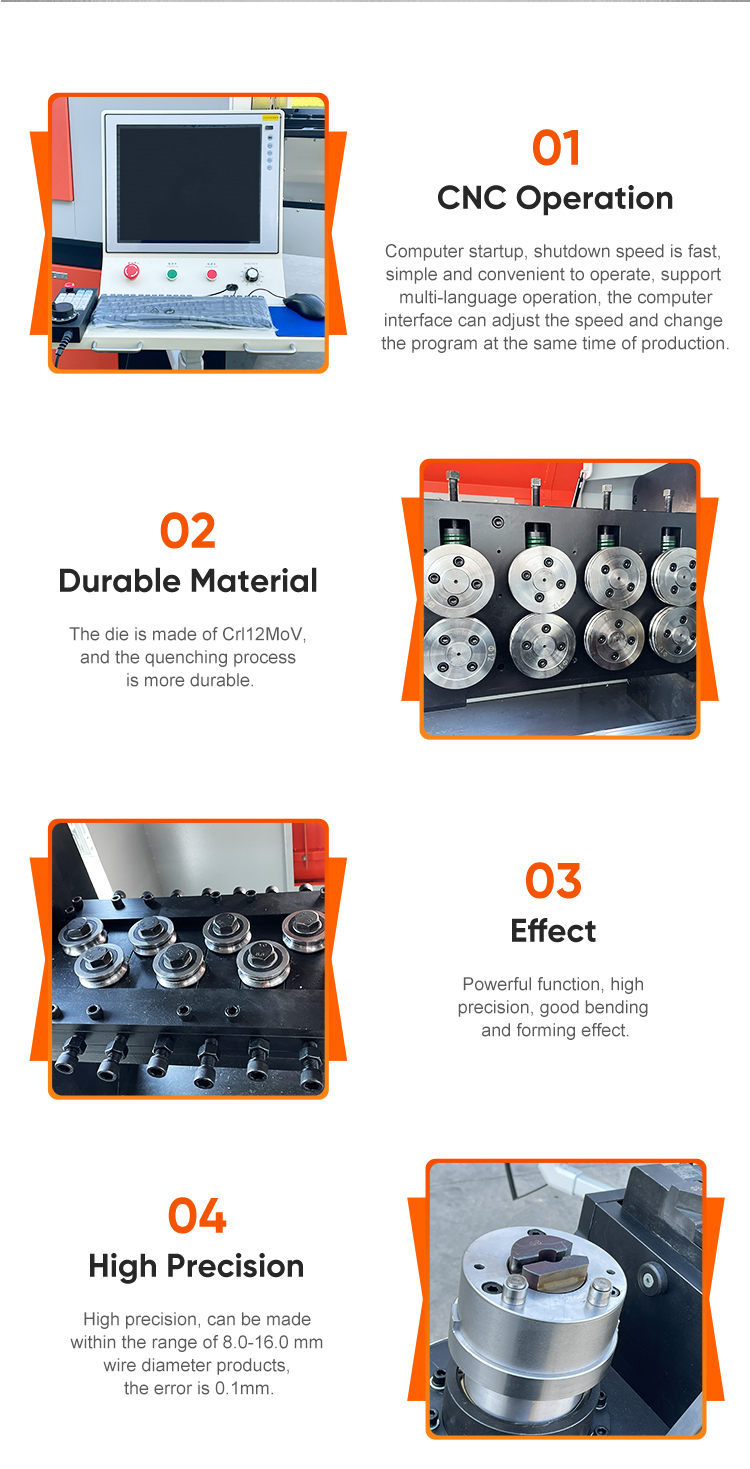

da3D_01da3D_04da3D_05da3D_06da3D_07da3D_08da3D_09da3D_10

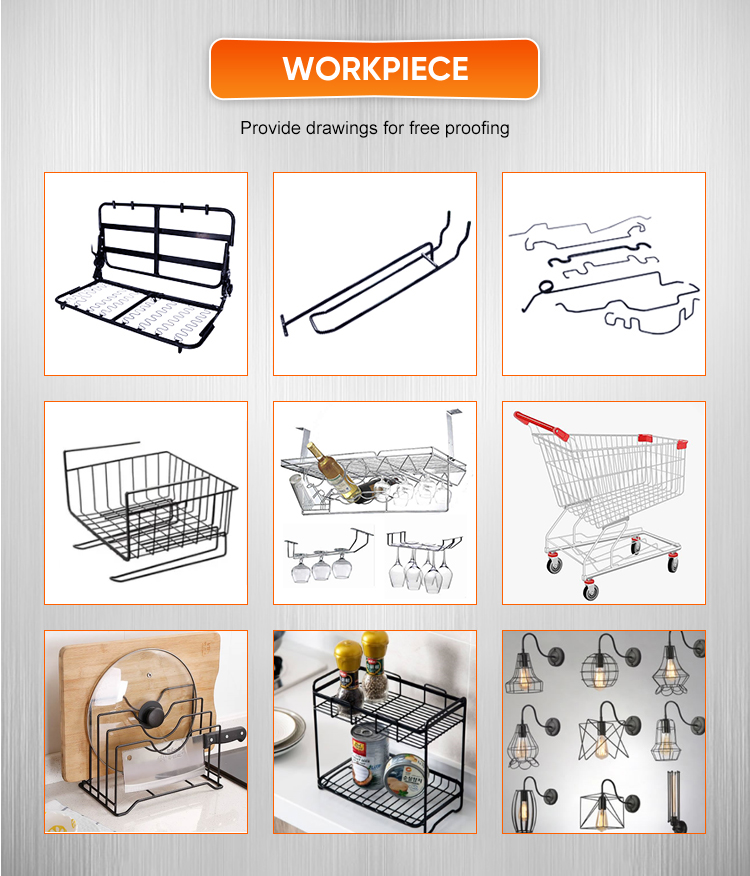

ZD-3D-8016 wire bending machine is suitable for various steel wire materials ranging from 8-16mm, and is suitable for various fields such as automotive parts, pet cage accessories, kitchen hardware accessories, garden tool accessories, wire crafts, and supermarket shelf hook forming. It can process various types of wires to meet the needs of different industries.

The 3D CNC wire bending machine has the functions of wire feeding, bending, turning, lifting and cutting. It adopts a CNC numerical control system with high machining accuracy and an error of less than 0.1mm, which can meet customers' needs for high-precision and high-efficiency wire and wire processing and forming. Automated operations reduce reliance on manual labor, significantly lower labor costs, ensure stable equipment operation, increase production efficiency, and reduce resource waste.


Technical Parameter

Diameter 8-16mm
Total power 28.4 KW
Feeding servo motor 9.9 KW
Head rotating servo motor 5.5 KW
Bending servo motor 5.5 KW
Cutting servo motor 5.5 KW
Lifting servo motor 2.0 KW
Machine size 3800*1500*1800 mm
No. of Motor 5 PCS
Machine Weight 4000 kg


Customer review

详情通用_02

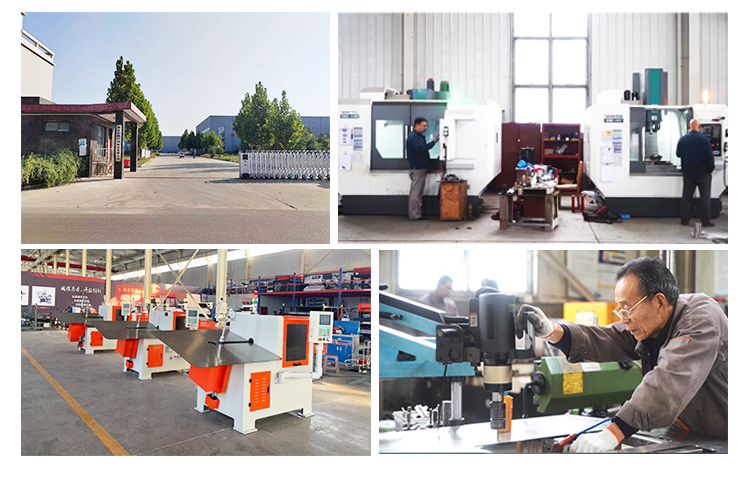

Company Profile

详情通用_03详情通用_04详情通用_05

Our advantages

详情通用_06详情通用_07详情通用_08详情通用_09详情通用_10

Packaging and shipping

详情通用_11详情通用_12

We are a Chinese manufacturer specializing in the production of 3D wire bending machine, with many years of industry experience. We have our own independent research and development design team and production team, as well as a complete after-sales service system. We can provide customized services according to your needs. If you are interested in our products, please feel free to contact us at any time.
