ZD-3D-6014
GREATCITY
8463300000

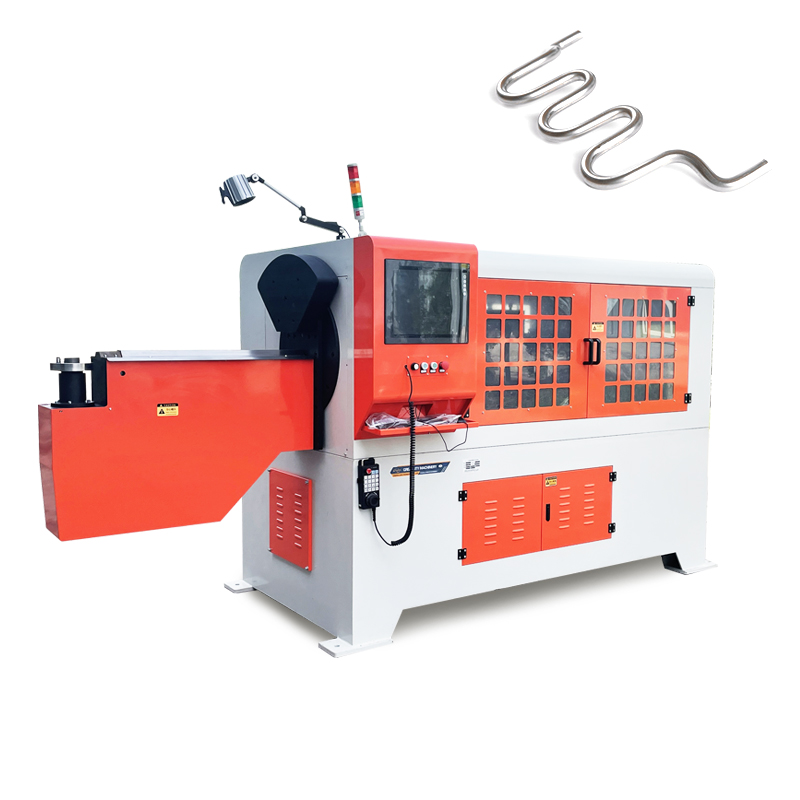

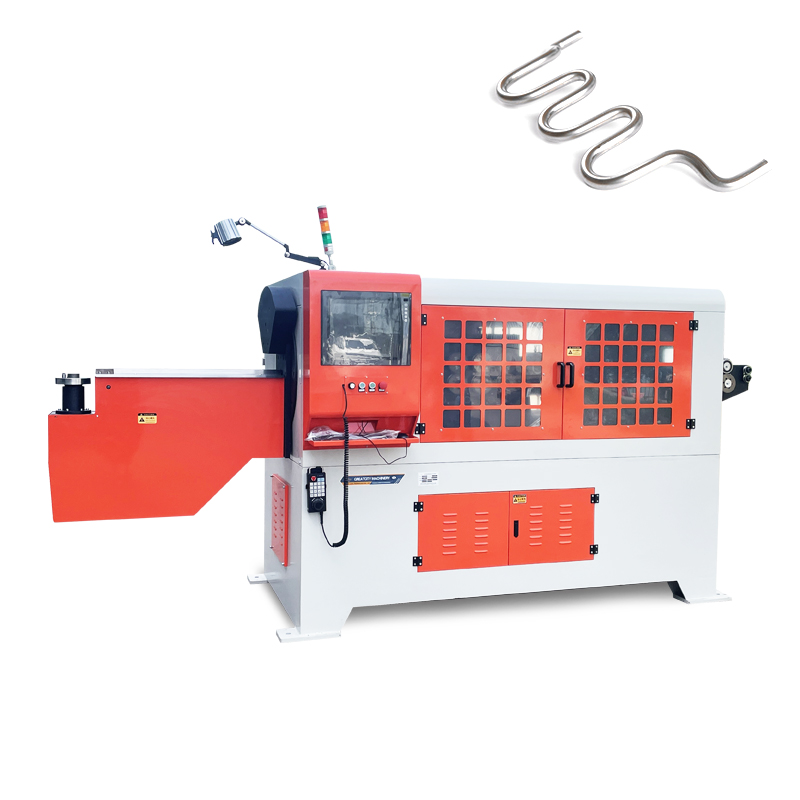

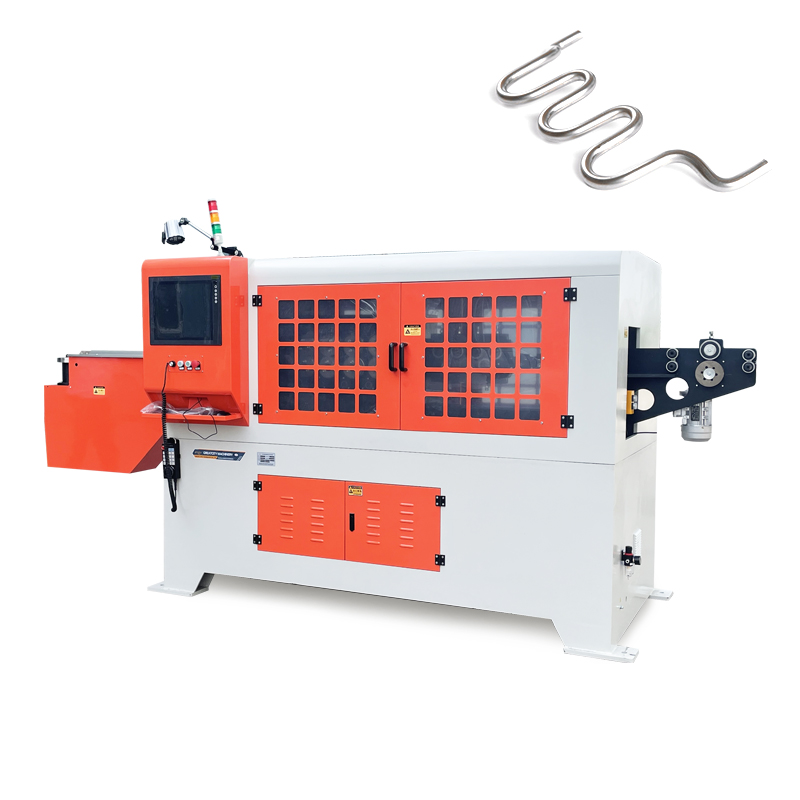

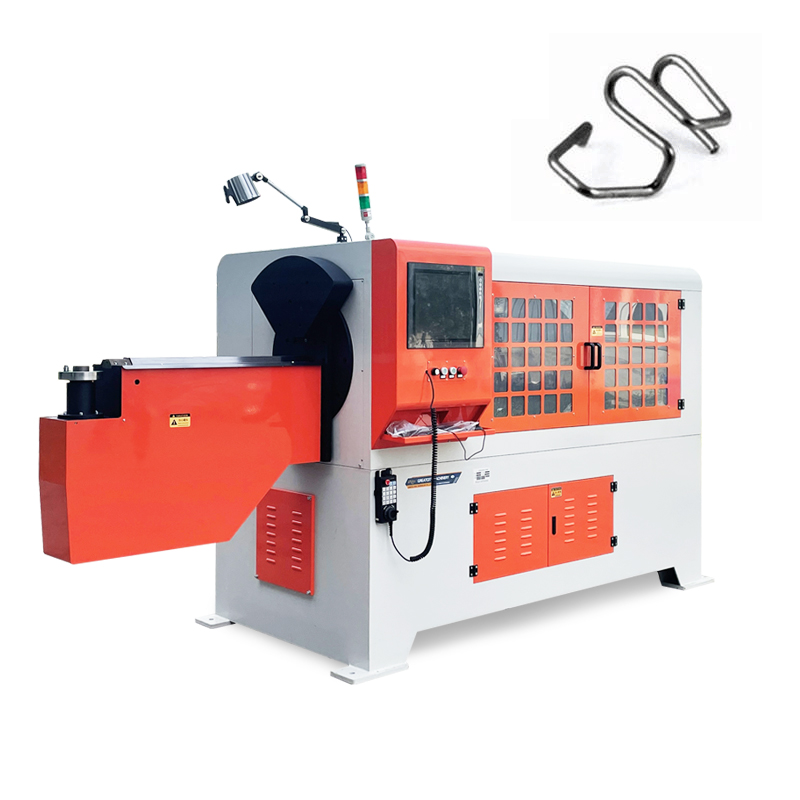

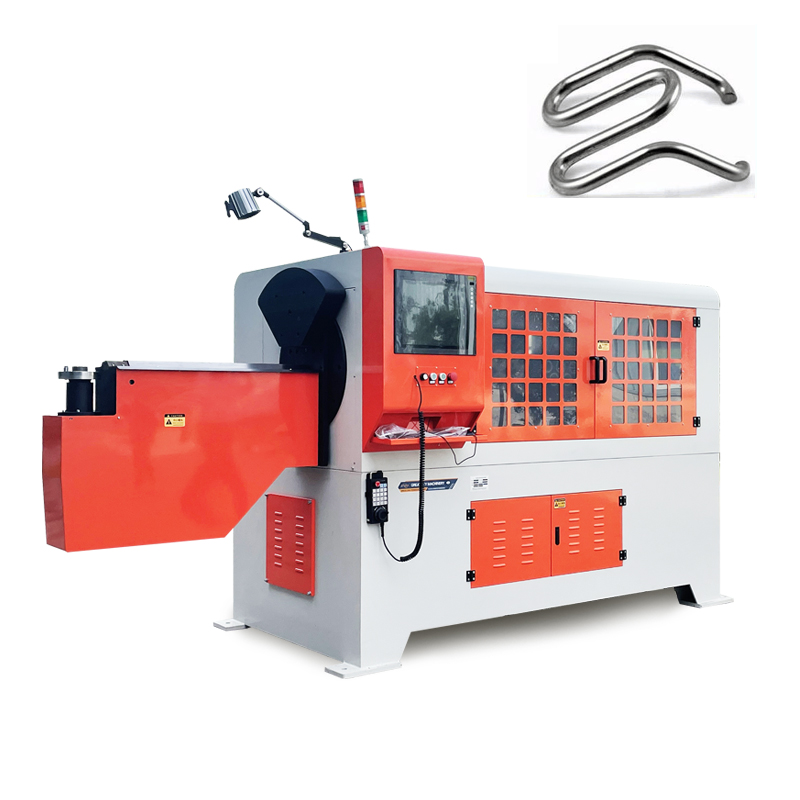

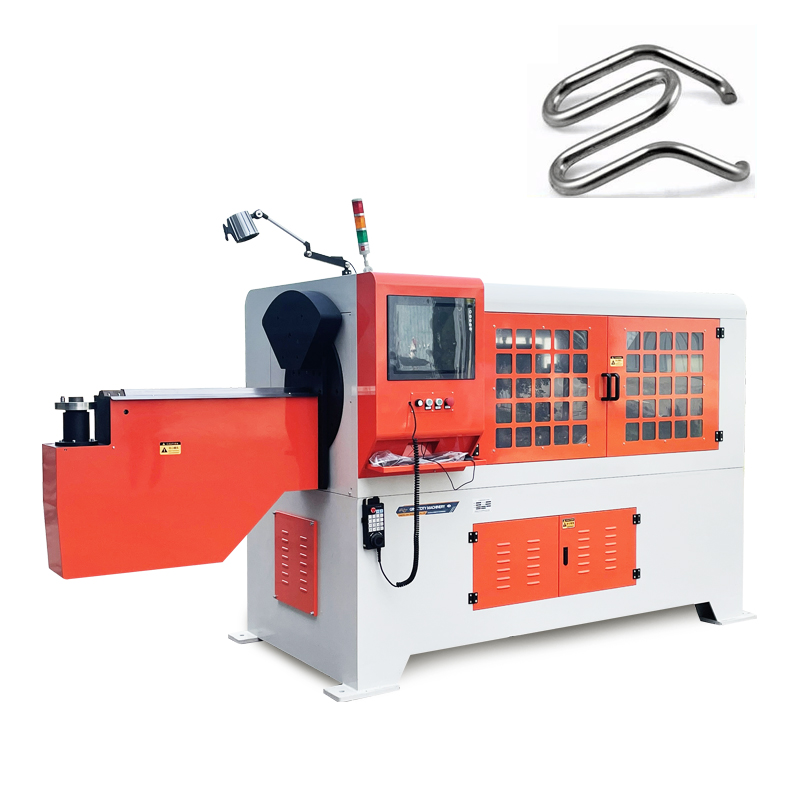

3D Cnc Wire Bender for Sale Cnc Wire Bending Machine Manufacturers
Characteristics for this model 3d cnc wire bending machine:
1. In principle, the head-turning forming machine does not turn the line, the head structure is light, and the head does not turn the line, so as to avoid errors caused by small line forming and ensure rapid and stable production operation.
2. The computer has fast startup and shutdown speed, simple and convenient operation, supports multi language operation, and the computer interface can change the program while adjusting speed while producing.
3. In terms of configuration, high-precision high-speed servo motor and reducer made or imported in China are adopted, which are stable and durable, and the production speed is more than 30% higher than that of similar products in China.
4. The wire feeding and rotating arm are separated and matched. When turning the head, the wire does not rotate, and the product forming of small outer diameter arc and multi circle can be realized.
5. The production program can realize that there is no change in the angle at different speed folding angles, and the production stability is better.
6. Bearings, gears and other important parts are imported accessories with a one-year warranty, and the equipment is durable and reliable
ZD-3D-6014 model 3d cnc wire bending machine basic parameters:
Model | ZD-3D-6014 |
Axis | 4 or 5 axis or customized |
Wire diameter | 5-14mm soft wire 4-12 mm hard wire |
wire-feeding axis servo motor | 7.5kw |
applicable wire | Round wire,flat bar, square wire (any material) |
Twisting axis servo motor | 3.8kw |
Feeding speed max. | 100(m/min) |
Forward-backward axis servo motor | 1.0(kw) |
Cutting axis servo motor | 3.8kw |
Angle-bending axis servo motor | 7.5kw |
Process | Lifting up and down for internal and outernal die |
Feeding accuracy | ±0.1mm |
Production capacity | 20-24 pieces/min,(200*200mm ,square) |
Operation system | in Chinese and English (upload and download) |
voltage | 380V50HZ/3 Phases or customized |
weight | 2200kg |
dimension | 3800×1400×2000mm |

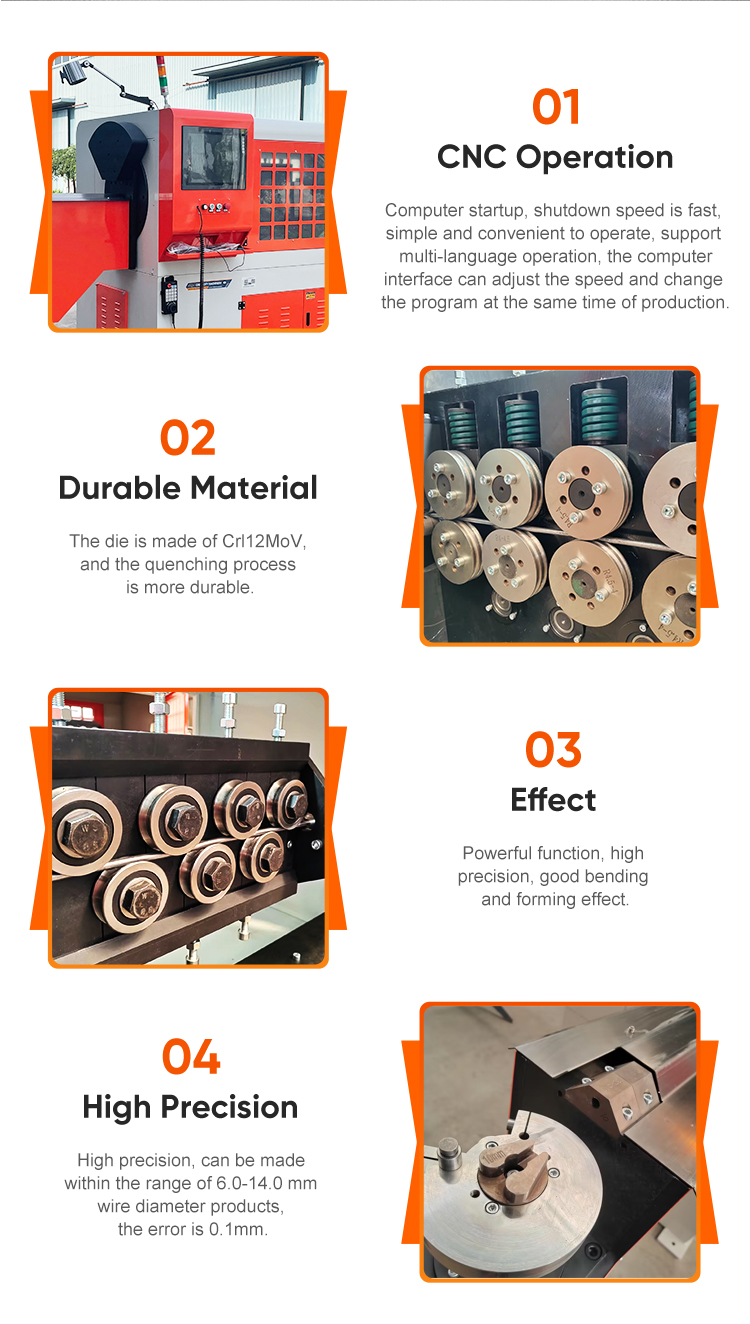

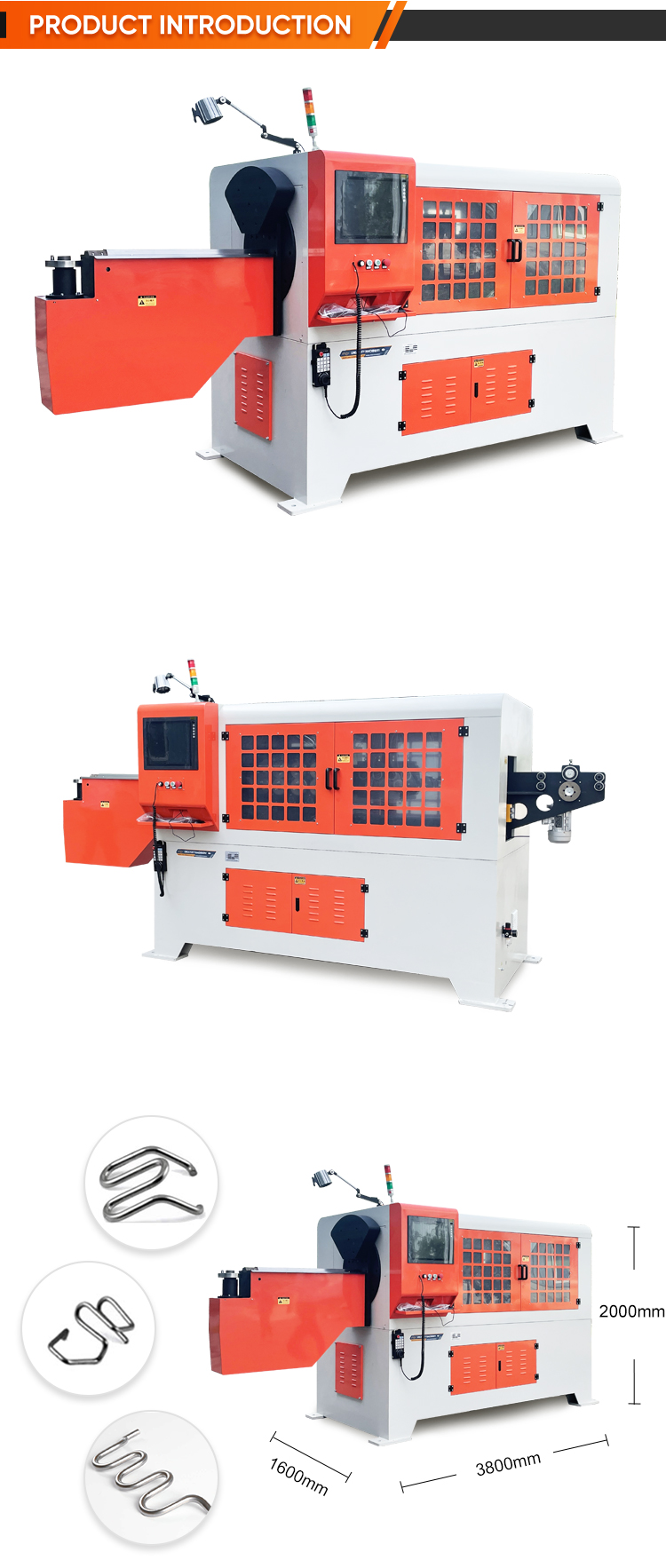

More detailed show for this model 3d cnc wire bending machine:
Packaging information: standard export wooden case packing for 3d cnc wire bending machine
We have our own farwarder. and check the delivery information timely.
You can also choose your own forwarder . We will contact with him ASAP.
Delivery time: about 25-30 working days after receiving the deposit
1. Help you choose the most suitable steel wire cnc bending machine.
2. Making the machine according to your request.
3. Give you machine’s details for help you use the machine more better.
4. 1 years warranty
5. Free repair whole using life without extra charge.
Xingtai Judu Technology Co.,LTD has more than 10 years professional production of 2d and 3d cnc wire bending machine production equipment experience, with high quality research and development, management and production. The team, relying on scientific and rigorous management, equipped with perfect means of production and testing conditions, is the birthplace of important metal wire and hanger equipment in China, and integrates research and development design, manufacturing and sales clothing as a whole enterprise. The company has independent research and development of a number of wire molding patents, company legal person comes to production and research and development frontline, independent research and development
1.what is 3d cnc wire bending machine Packaging?
Free fumigation safe Wood case package & iron pallet
2.what is MOQ?
one set can be acceptable for trail order.
Over 3 sets can be with agent price
3.can we do OEM and ODM?
Can changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4.what is your warranty?
Warranty 1 year
5.what is the time for delivery?
about 20-25 working days for our own design after receipt of deposit
6.How to make the payment?
TT, 40%-50% deposit ,balanced paid off when the machine is ready for the shipment (sending you the testing video for the confirmation)
We are a Chinese manufacturer specializing in the production of 3D wire forming machines, with many years of industry experience. We have our own independent research and development design team and production team, as well as a complete after-sales service system. We can provide customized services according to your needs. If you are interested in our products, please feel free to contact us at any time.
