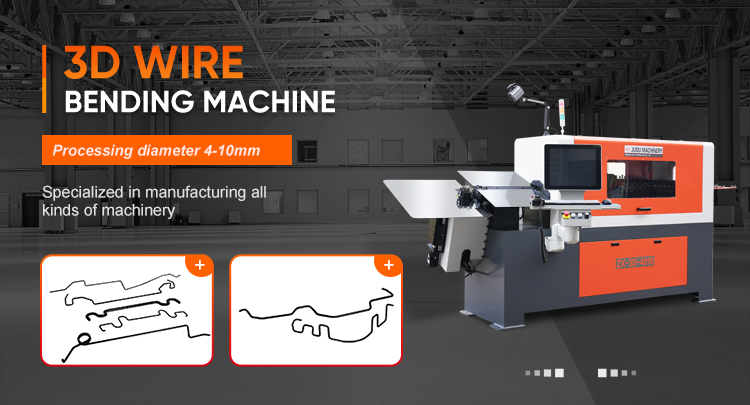

4-10mm 3D Wire Bending Forming Machine with CNC Control System 3D Steel Wire Bending Machine

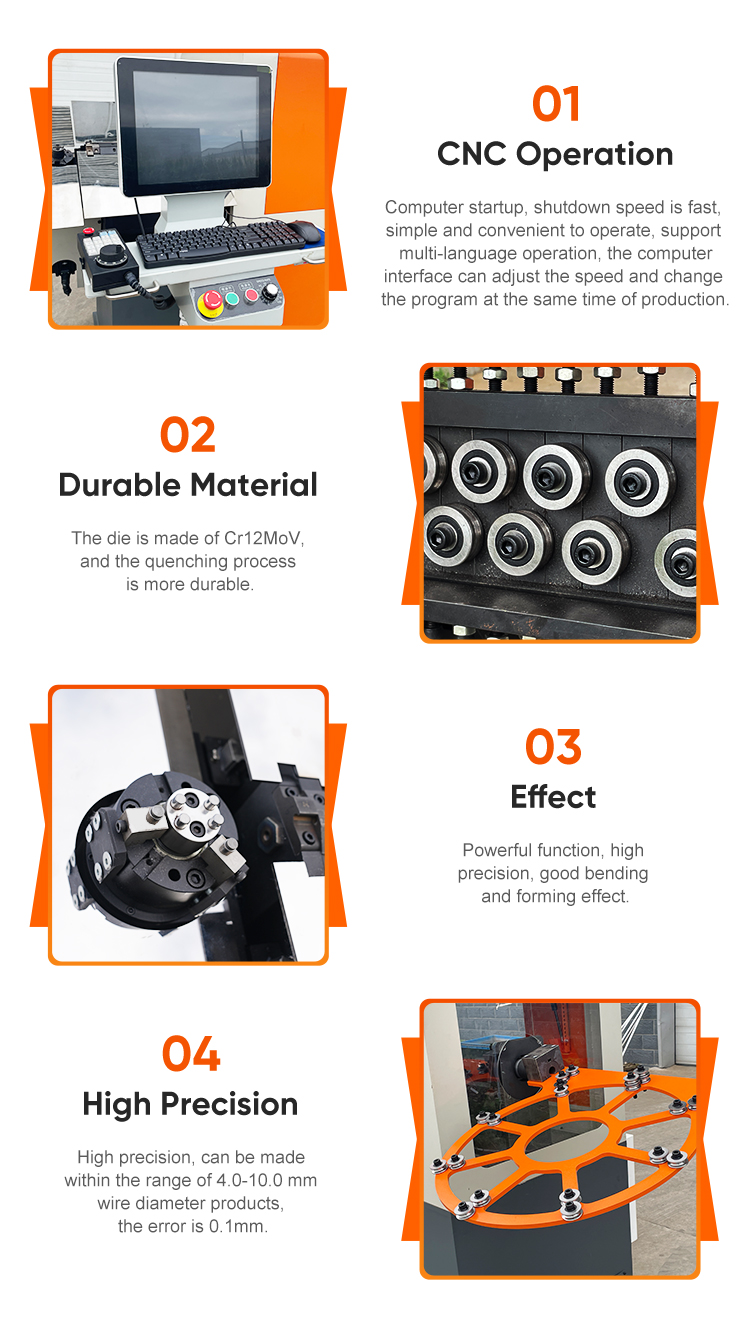

The ZX-3D-4010 wire bending machine is suitable for 4-10mm round and flat wire and iron wire. The equipment functions include wire feeding, wire turning, bending, cutting, platform lifting, inner and outer mold lifting, and inner and outer mold rotation.The machine adopts Yaqi CNC control system, Huichuan servo motor, Faston high-quality reducer and Chint Electric, which can be programmed freely, operated simply and conveniently, and has stable performance.The bottom blade, wire feeding wheel, and other mold accessories of the machine are all quenched with CR12MOV and DC53 alloy, which has good stability and long service life. The inner and outer molds can be customized according to the needs of the workpiece and have the function of lifting and rotating 360 ° freely.
Product Keywords:
3D wire bending machine
Certificate:
CE
wire-feeding error:
0.1mm
Weight:
2000kg
Dimension:
3900*1200*1700mm
Material:
Various steel wire
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • ZX-3D-4010

  • Greatcity

3D wire bending forming machine 3d wire forming machine 3d steel wire bending machine
Product Description

4-10mm 3D Wire Bending Forming Machine with CNC Control System 3D Steel Wire Bending Machine

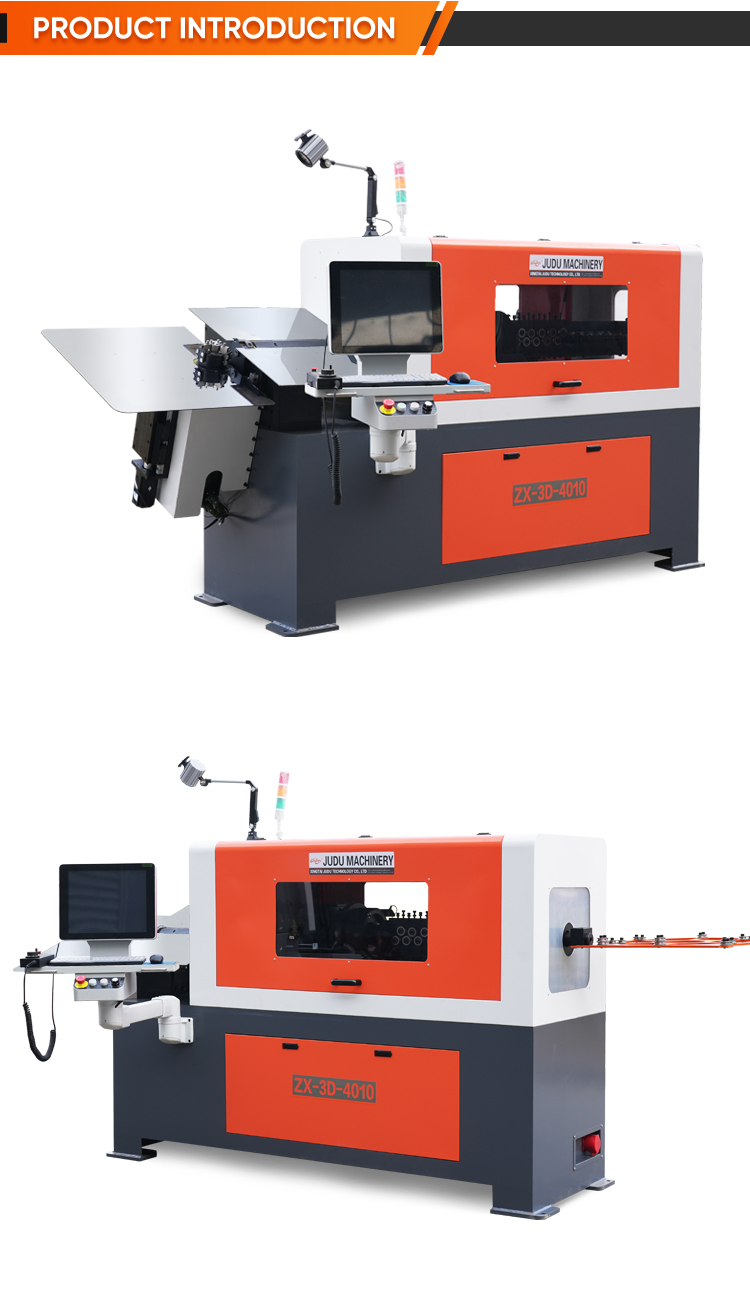

Product Introduction

详情_01详情_05详情_04详情_06详情_07详情_08

Product Description

 The rotating shaft of the 3D wire bending machine adopts a force increasing precision gear transmission, and is controlled by independent servo systems for wire feeding, bending, and rotation. The transfer line has fast positioning and anti rotation devices, high wire feeding and bending accuracy, small errors, and good forming effects, which can meet customers' requirements for high-precision workpieces and have a high degree of automation.

Technical Parameter

Model ZX-3D-4010
Wire diameter 4-10MM
Number of axes 7
Wire feeding motor 5.5KW
Wire rotating motor 2.9KW
Wire bending motor 2.4KW
Wire cutting motor 1.3KW
Platform lifting motor 1.0KW
Internal and external mold lifting motor 1.0KW
Internal and external mold rotating motor 1.8KW


详情通用_03详情通用_08详情通用_09详情通用_10详情通用_11

We are a Chinese manufacturer specializing in the production of 3D wire forming machines, with many years of industry experience. We have our own independent research and development design team and production team, as well as a complete after-sales service system. We can provide customized services according to your needs. If you are interested in our products, please feel free to contact us at any time.
