Automatic Camless CNC Wire Bending Machine Spring Making Machine
CNC Spring making Machine can produce various types of springs such as tension springs, compression springs, tower springs, double torsion springs, flat springs, etc. It can be applied to precision springs required by industries such as lighting, electronics, toys, home appliances, sports equipment, and automobiles.
Spring making machine Function and Features:
1.Adapt camless design, fast adjusting of machine, high precision and stable quality
2. Adopt Japan Panasonic Servo motor and Germany Roster reducer.
3. Wire rotation design , stable feeding and more convenient adjustment of machine
4. English and Chinese interface, easy operation , less experience required.
5. When upgrading the machine technology, it can solve technical difficulty which ordinary CNC wire bending machine
Spring making machine Technical Paramter:
Wire dia(mm) | 0.2-2.0 | 0.2-2.5 | 0.4-3.0 | 0.8-3.5 | 0.8-3.5 | 1.2-4.5 | 1.2-5.0 |
Max. wire feeding value | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 |
Min. wire feeding value | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Max. wire feeding speed | 120 | 120 | 120 | 120 | 80 | 80 | 80 |
Max. wire feeding length | Unlimited | ||||||
Axis number | 10 | 10 | 12 | 10 | 12 | 12 | 12 |
Total output power | 6.6KW | 10.0KW | 13.3KW | 14.2KW | 17.6KW | 21.8KW | 22.9KW |
Input power supply | 380V/50HZ/3phase | ||||||
Control system | Made in Taiwan | ||||||
Program storage | 3000+ | ||||||
Compressor air pressure | 5-6 | ||||||
Probe number | 3 | ||||||
length(mm) | 1100 | 1200 | 1500 | 1400 | 2200 | 2650 | 2650 |
width(mm) | 800 | 1250 | 1250 | 1550 | 1550 | 1800 | 1800 |
height(mm) | 1550 | 1760 | 1860 | 1800 | 1850 | 2070 | 2070 |
Net weight (kg) | 700 | 980 | 1500 | 1600 | 2500 | 4100 | 4500 |

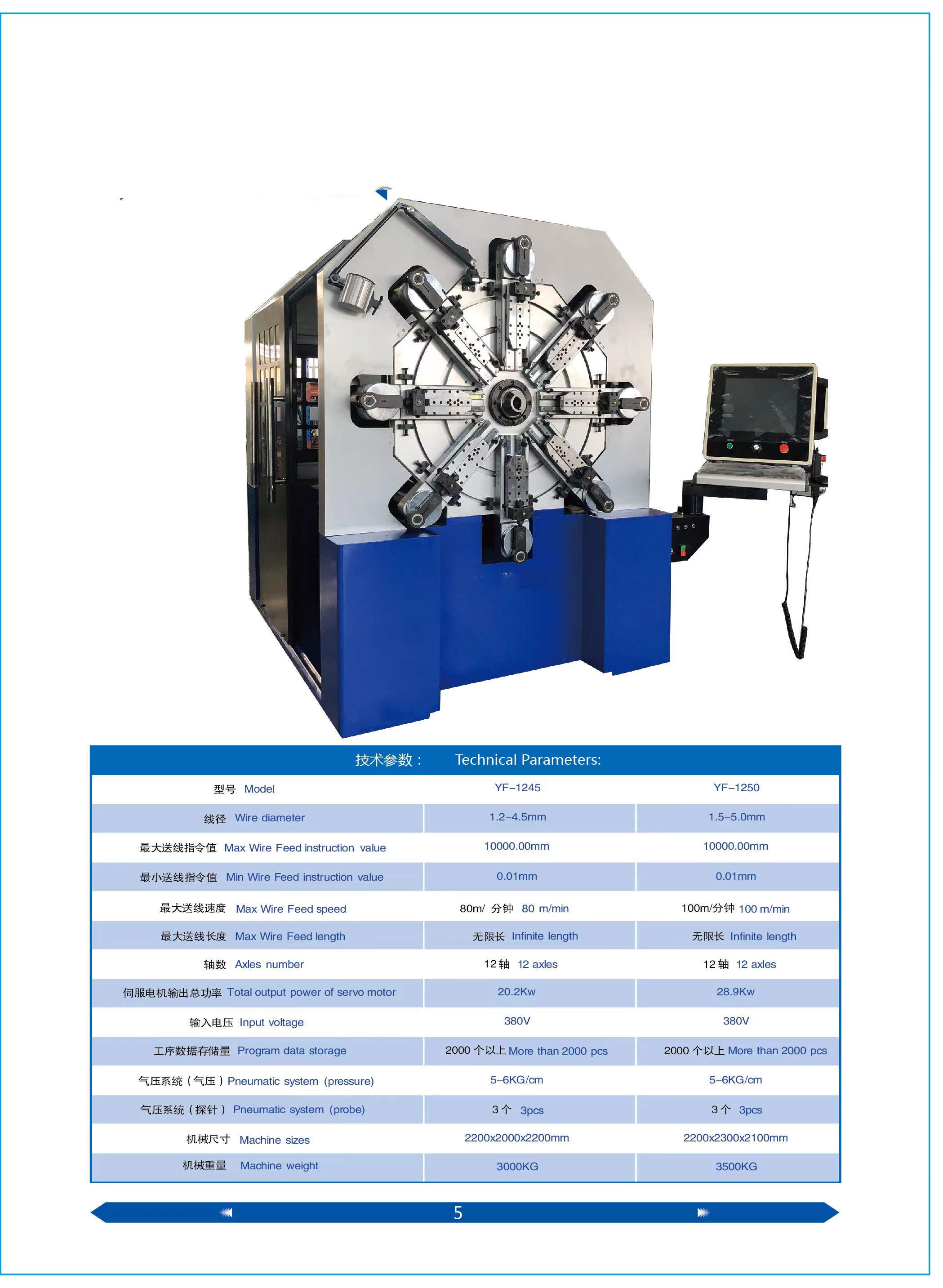

Detailed show for Spring making machine
finished workpiece show :
Packing : standard export strong wooden case for spring forming machine
Delivery time : about 30-35 working days after receipt of deposit
spring making machine workshop show
1. Help you choose the most suitable machine .
2. Making the machine according to your request.
3. Give you machine’s details for help you use the machine more better.
4. 2 years warranty
5. online video teaching and guidance technical service
