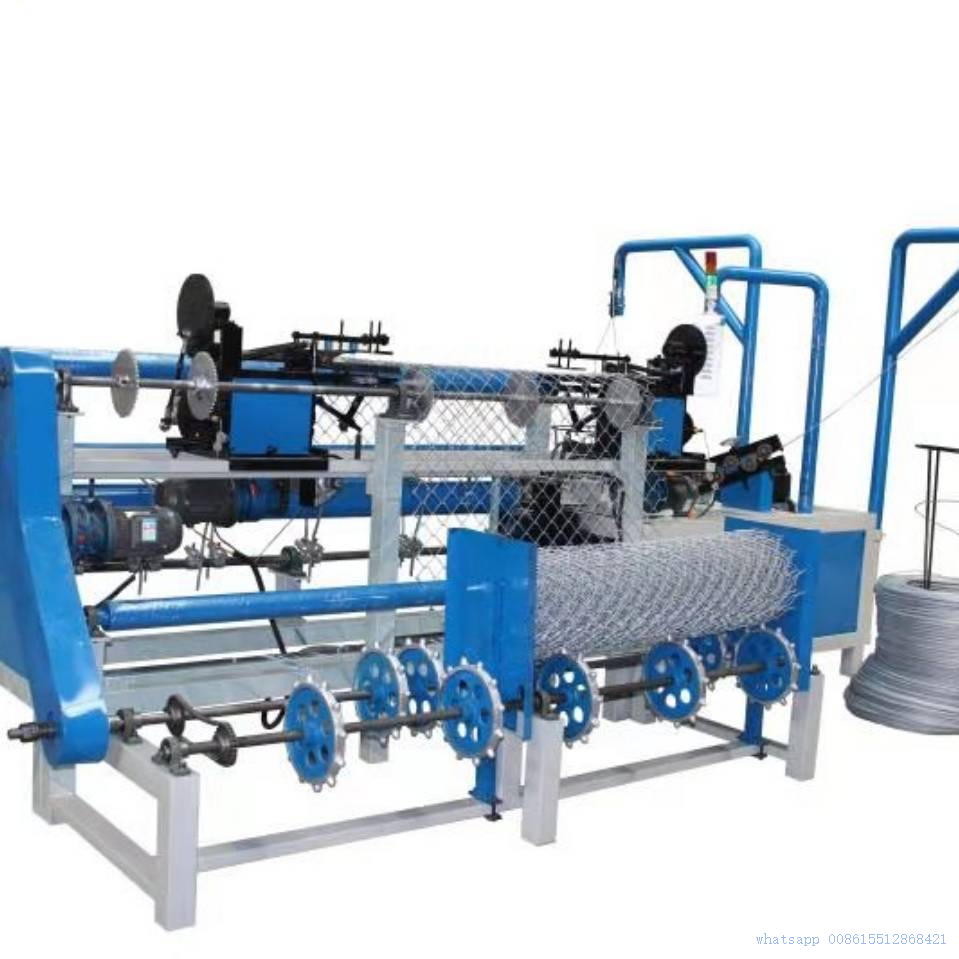

Automatic Chain Link Weaving Machine
Automatic Chain Link Weaving Machine with servo motor and PLC control system and alarming system when machine meet problem,alarming light and sound the alarm.chain link fence making machine stable working stable and high performance.
Material of chain link fence : hot galvanized low carbon steel wire,black steel wire,stainless steel wire and PVC coated wire
Application of chain link fence: security fence,airport fence,field fence,boarder fence,playground fence,yard fence etc.

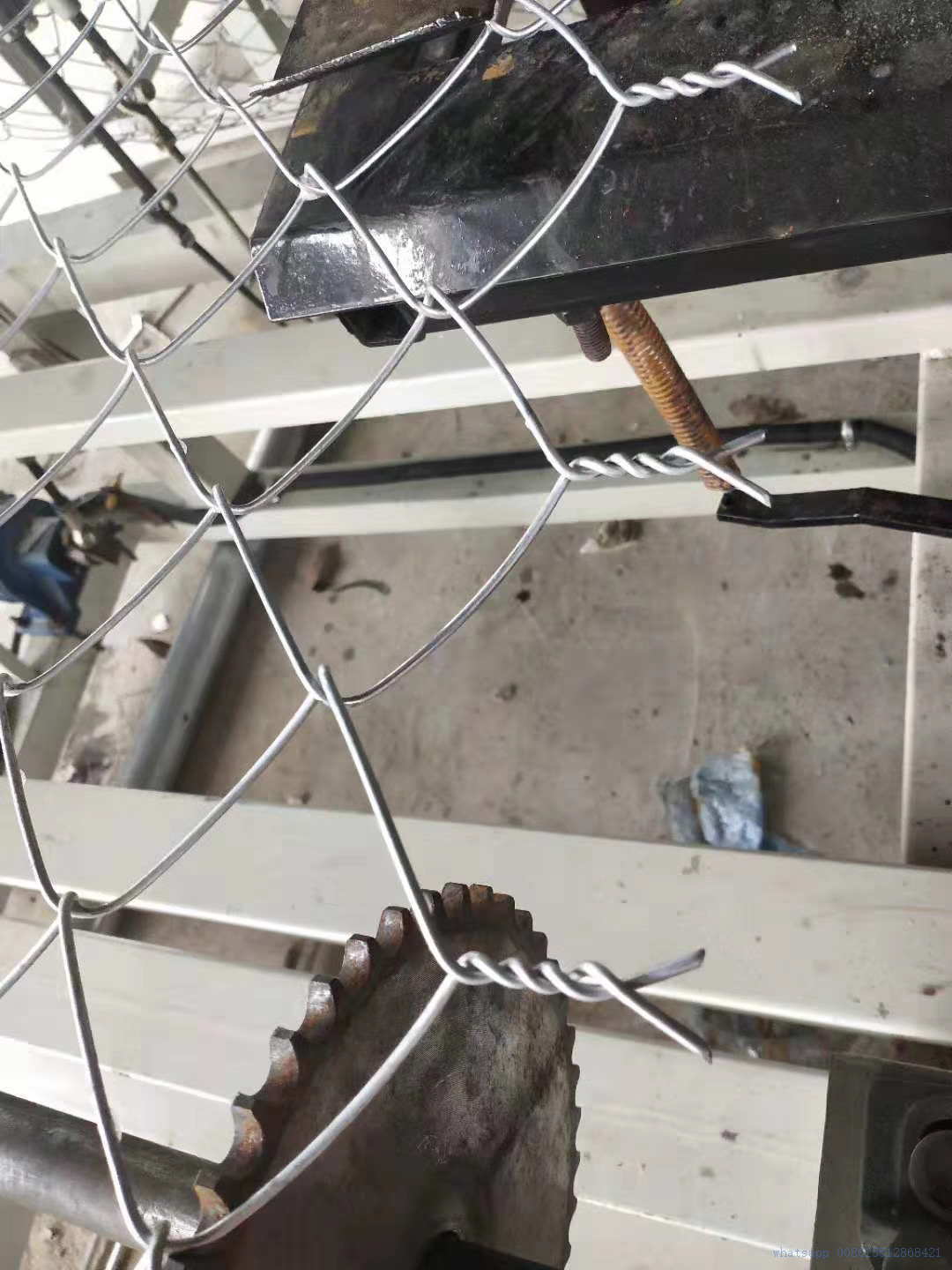

Chain link fence edges:knuckled edge,twisted edge,selvage edge.
Chain link fence rolls:normal rolls,compacting rolls.
Chain link fence mold material:alloy mold steel which service life 24 months.
Electrics on chain link fence machine: delixi which is big brand in china,also have Taiwan brand and Japan brand for your choose.
Automatic Chain Link Fence Machine with Compactor loading: 20 ft container.
Chain link fence machine after sale service:we offer oversea technician to teach machine operation,and we offer online video teaching.
High quality free moulds of Automatic Chain Link Weaving Machine
Automatic Chain Link Weaving Machine Technical Parameter
| Model | JD20 | JD25 |
| Wire diameter | 1.3-4mm | 2-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mesh length | 30m, adjustable freely as your request | |
| Mesh side | Knuckled and twisted, or knuckle, or twisted | |
| Raw material | Galvanized wire, PVC coated wire, etc. | |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 2500kg | 4200kg |
Double Wire Feeding Chain Link Fence Machine Manufacturer always in full container.
Main country:
USA , Mexico , New zealand , Russia , Italy , Turkey , Philippines , Singapore,Kuwait,Thailand , Albania , Tanzania , India and Trinidad and Tobago , Australia Uzbekistan , Kazakhstan , Kuwait , Malaysia , cambodia , vietnam , Myanmar, Algeria , Kenya , South Africa , Swaziland , Mozambique , United Arab Emirates , Oman , Japan.

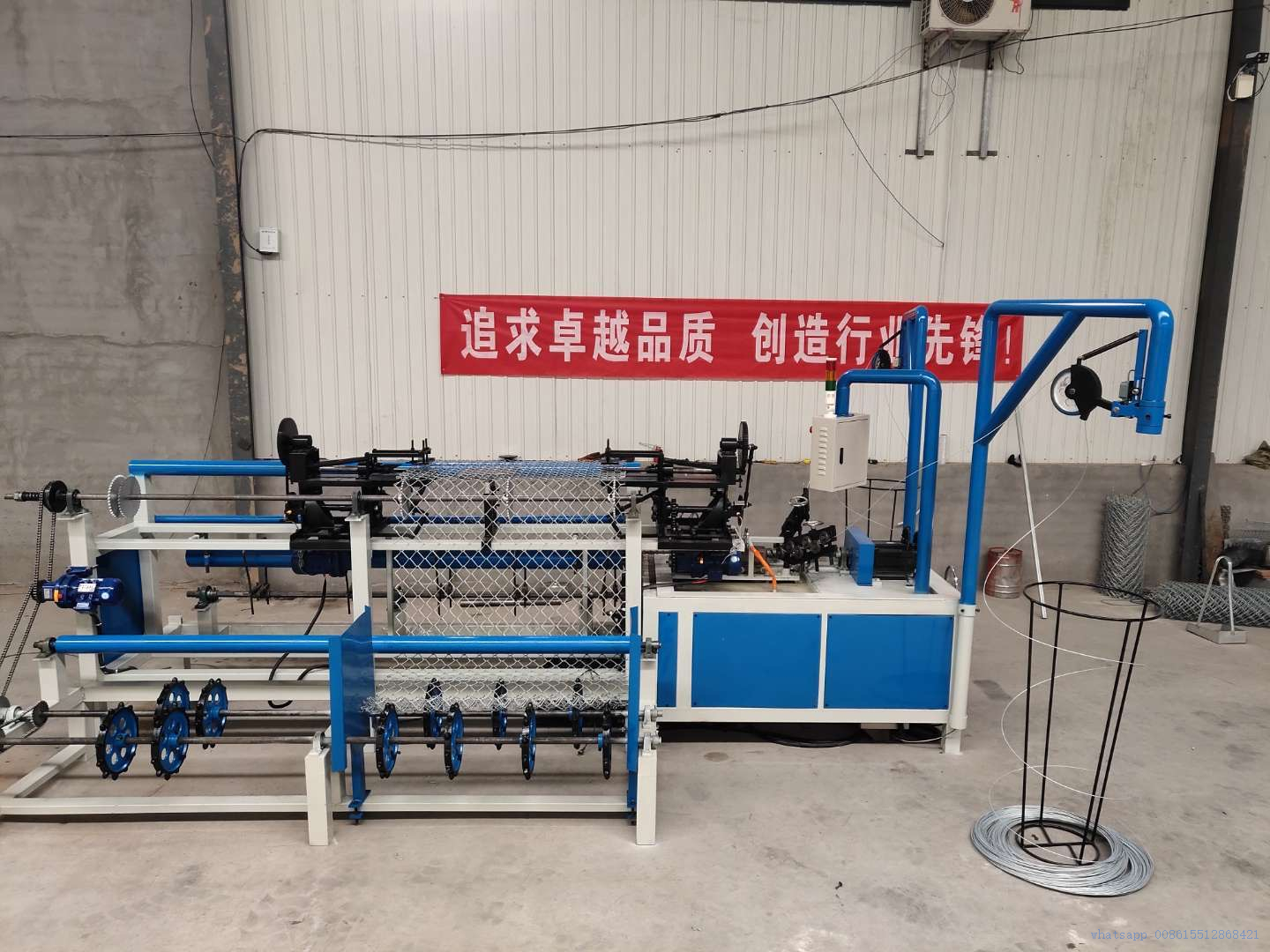

Customer feedback the workshop for Automatic Chain Link Weaving Machine
Q:what is the delivery time?
A:We have the machine in stock. if not, need about 7 days.
Q:what is the width of the Wire mesh machinery factory
A:2-6m width.
Q:what is the voltage of the machine?
A:The voltage of the machine can be customized as your local.
Q: How many years are your company engaged in the Wire mesh machinery factory?
A: More than 25 years. We have our own technology to develop the department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience with exporting. And we can supply the CE certificate, Form E, passport, etc, your customs clearance will be no problem.
Xingtai Judu Technology Co.,Ltd is located in the historical industrial zone, Hebei province. Founded in 1999, we are a professional manufacturer of series of China Automatic Chain Link Fence Machine, CNC stirrup bending machine and rebar screw thread rolling machine. For twenty years in development, our company has always been adhering to credit the first best quality in after sale service, innovation, self-improvement, adhere an independent intellectual property right as the core of scientific and technological innovation. The current steel hoop bending machine and horizontal lathes for the company's main product are sold throughout the country, some products exported to Asia, Africa, and other countries and regions, we are abide by integrity and innovation, entrepreneurial spirit, relying on leading research and development capabilities efficient manufacturing, stable quality and good service to meet the needs of our customers at home and abroad, the company has now passed the ISO9001:2000 international quality management system certification.
"Greatcity" trademark has been identified as an unique brand name product that got the honorary title among many.
Within more than 20 years of development besides struggles, GreatCity is still keeping up its effort to maintain a brilliant business success in whole over the world due to its hardworking, courage and the will to improve its creation for customer satisfaction and maintain the reputation to be the best Chinese machinery manufacturer.
