2-8mm
greatcity

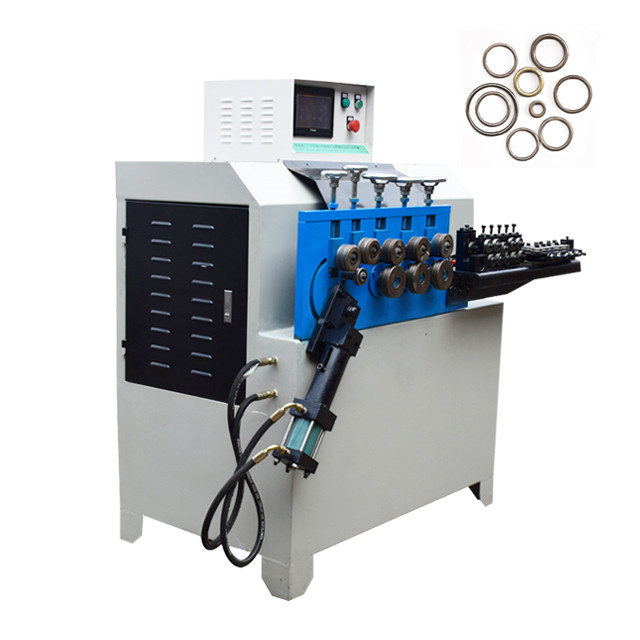

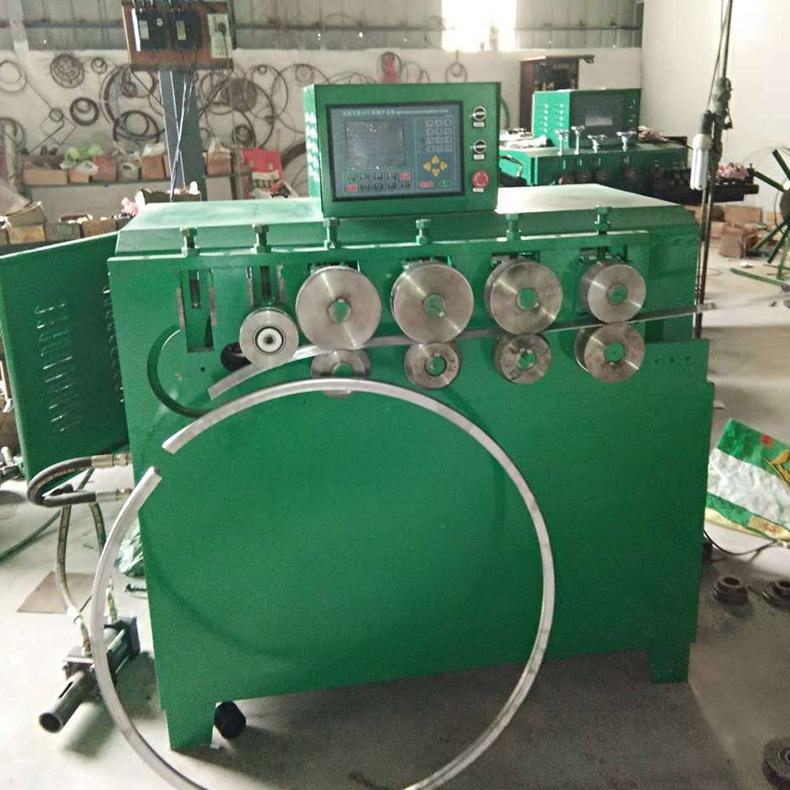

Automatic Wire Circle Making Machine
Brief Introduction of Automatic Wire Circle Making Machine
1.The wire hanger forming machine is in sheet plate welded structure, with internal stress
eliminated by vibration aging technology, high strength and good rigidity of machine.
2.Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit
stopper and synchronous torsion bar, typical of stable and reliable operation, as well as high
precision.
3.Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and
stroke of gliding block, and fitted with digital display device, easy and quick in use.
4.Upper die is fitted with deflection compensation device.
Technical Parameter of Automatic Wire Circle Making Machine
Model | Wire size (mm) | Inside diameter (mm) | Power (kw) | Feeding speed(m/min) | Machine size (mm) |
GT-RF-6 | 2-6 | 50-850 | 1.5+1.5 | 40 | 1210*730*1450 |
GT-RF-8 | 2-8 | 65-900 | 2.25+1.5 | 25 | 1470*750*1500 |
GT-RF-10 | 2-10 | 100-900 | 4+3 | 26 | 1470*750*1500 |
GT-RF-12 | 5-12 | 100-900 | 5.5+3 | 25.5 | 1630*750*1500 |
Notice: apart from above ,we can tailor-made | |||||
Pre-sale Service
1.Supply item design,process design.
2.Help you to chose the fitest machine.
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you .
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for a year.
2.Quality problem,we will sent you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
We, GreatCity Company- having the experience of offering an original machine produced in our local factory, are willing to present you the opportunity to any engineers or contractors in different construction area to use the Automatic Wire Circle Making Machine
because:
- It will save time
- Economic and fast
- Easy to operate
- Programming in different languages: French, English, Chinese, Arabic, and Spanish or Russian
- An application with a high straightening effect on wire
- For long run utilization
- Usable in different seasons (not rusty)
- Mecanism adjustable according to your requirement
- Professional for any kind of construction business (start-up or at its peak)
Welcome your inquiry and come to visit our company!
