| process diameter : | |
|---|---|
| Control system : | |
| wire-feeding tolerance: | |
ZD-2D-206
Greatcity
8463300000
Factory Automatic 2d Cnc Wire Forming Machine Wire Former Steel Wire Shaper
Advantages & Feature of 2d cnc wire forming machine From China:
Our 2D wire bending machine has high machine precision. The wire forming machine adopts CNC numerical control operation and can store 10000 formulas. It has high processing accuracy and can process various complex and shaped wires. It is also equipped with a straightening machine with memory function, which can complete straightening in one minute and meet the production requirements of high-precision metal wire forming. Our 2D wire bending machine has a high degree of automation, uses computer programming, and is easy to operate.
2d cnc wire forming machine Application field :
1)Auto Industry area
2)Metal wire industry
3)Display table and cargo shelf
4)Furniture and Kitchen
5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft
ZD-2d-206 model 2d cnc wire forming machine technical parameters:
Model | ZD-2D-206 |
Axis | 3 axis |
Wire diameter | 2—6mm iron wire |
wire-feeding wheel | 3 |
applicable wire | Round wire,flat bar, square wire (any material) |
Copy | 10000 datas,300 acts as a group |
Feeding speed max. | 100m/min) |
Wire-feeding axis servo motor | 2.5kw |
Cutting axis servo motor | 1.0kw |
Angle-bending axis servo motor | 1.8kw |
Process | Lifting up and down for internal and outernal die Two-way bending |
Feeding accuracy | ±0.1mm |
Max. Bending speed | 800rpm/min,angle±180º |
Production capacity | 20-24 pieces/min,(200*200mm ,square) |
Operation system | 32 betain in Chinese and English (upload and download) |
voltage | 380V,50HZ,3 Phases or customized |
weight | 750kgs |
dimension | 3000×950×1500mm |

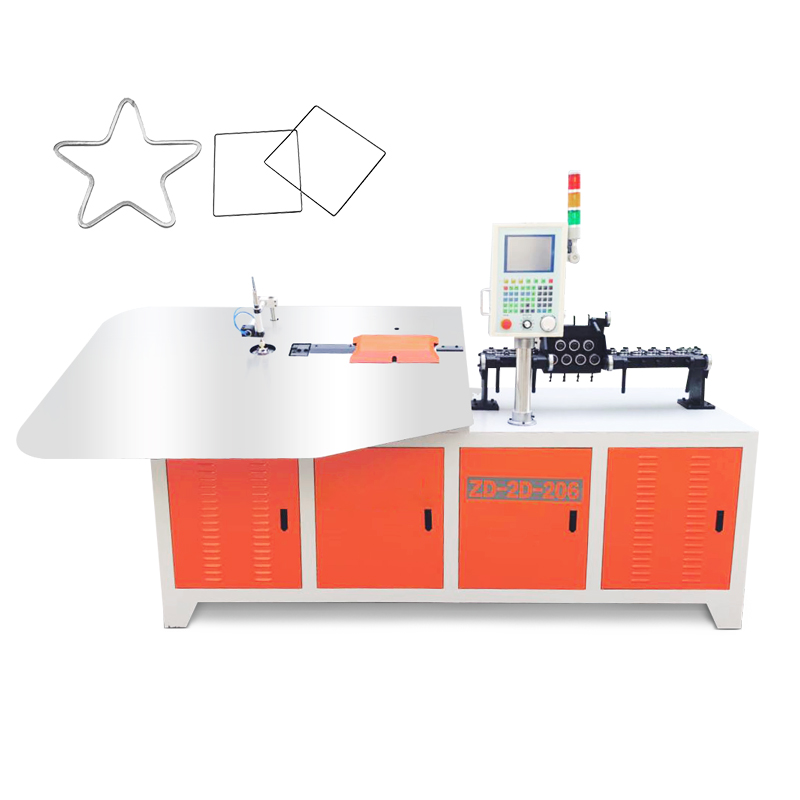

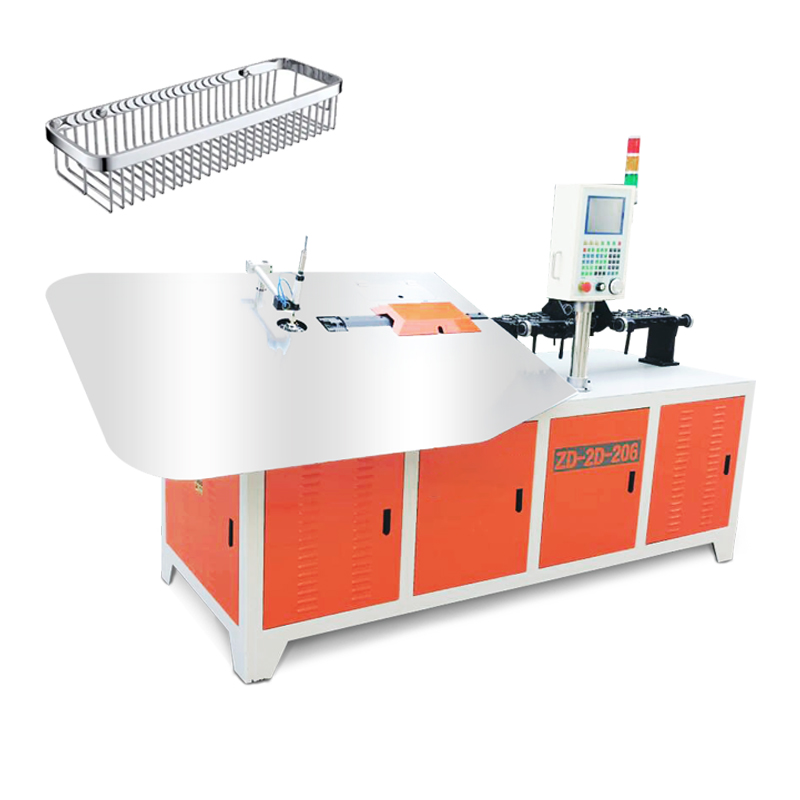

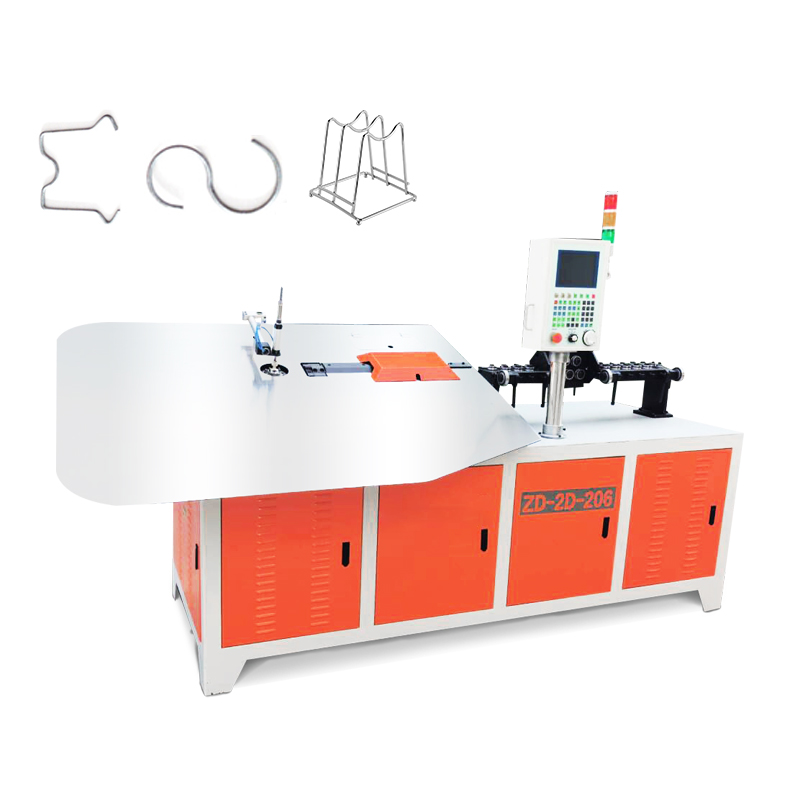

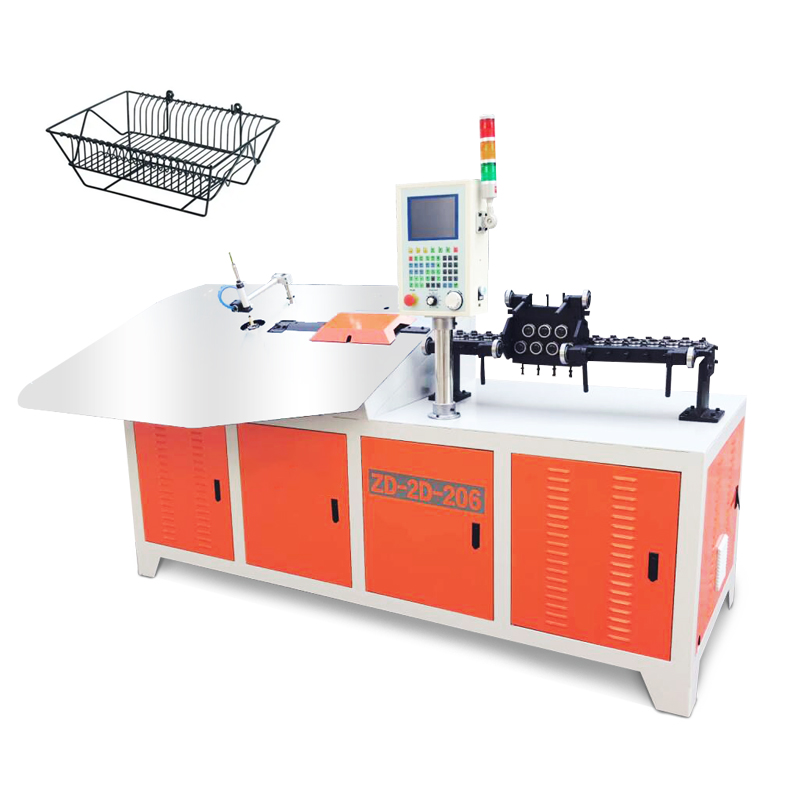

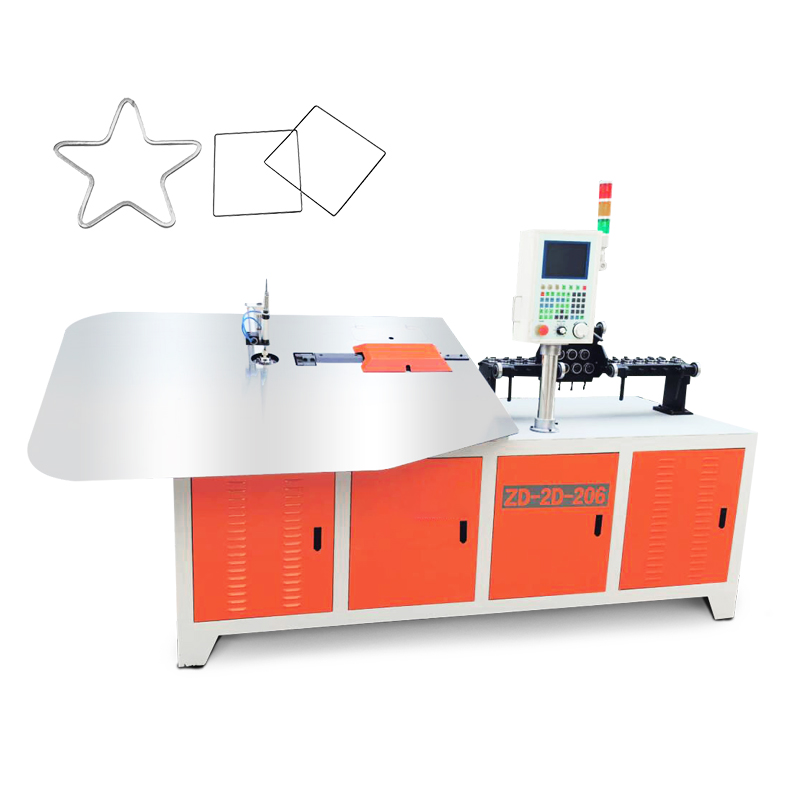

ZD-2d-206 model 2d cnc wire forming machine detailed show:
Customer positive feedback
2D wire bending machine factory picture
Company Profile
Our services of 2d cnc wire forming machine From China:
1. Help you choose the most suitable 2d wire bending machine .
2. Making the machine according to your request.
3. Give you machines details for help you use the machine more better.
4. 1 years warranty
5. Provide overseas on-site machine maintenance guidance and after-sales service.
FAQ of 2d cnc wire forming machine
what is 2d wire bending machine Packaging?
Free fumigation safe Wood case package.
what is MOQ?
1set can be acceptable for trail order.
Over 3sets can have wholesale price. Welcome to join us as our sales agent in your market.
can we do OEM and ODM?
Can changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4. what is your warranty?
Warranty 1 years
5.what time for delivery?
5-7 days for our own design.(motor:380v 50hz 3phases)
10-15 days for cusmoized model.
6.How to make the payment?
TT, 40-50% as deposit ,balanced paid off when the machine is tested well before shippment.
We are a Chinese manufacturer specializing in the production of 2d wire forming machine , with many years of industry experience. We have our own independent research and development design team and production team, as well as a complete after-sales service system. We can provide customized services according to your needs. If you are interested in our products, please feel free to contact us at any time.
