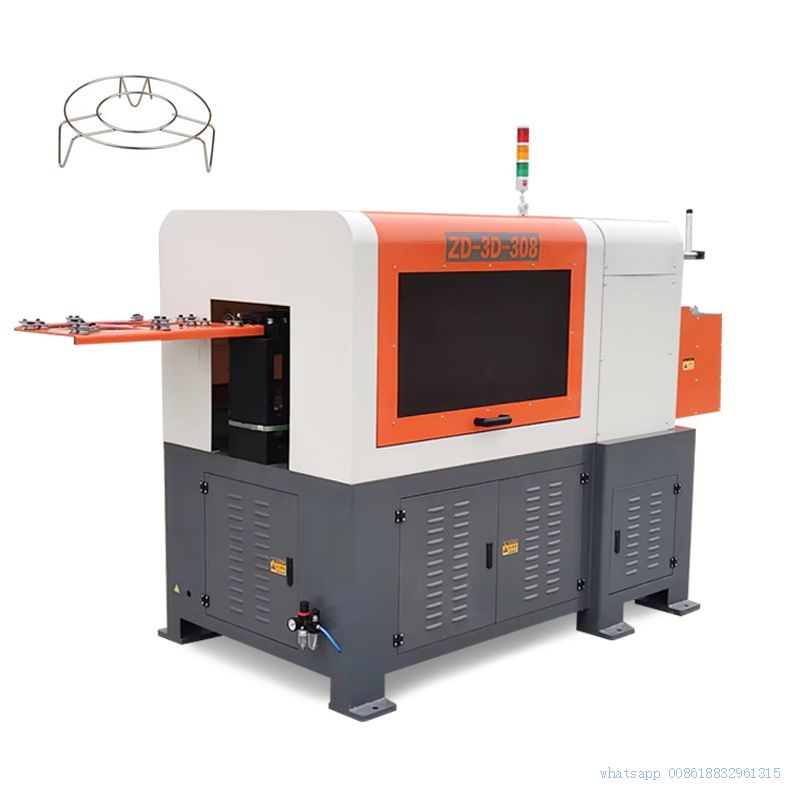

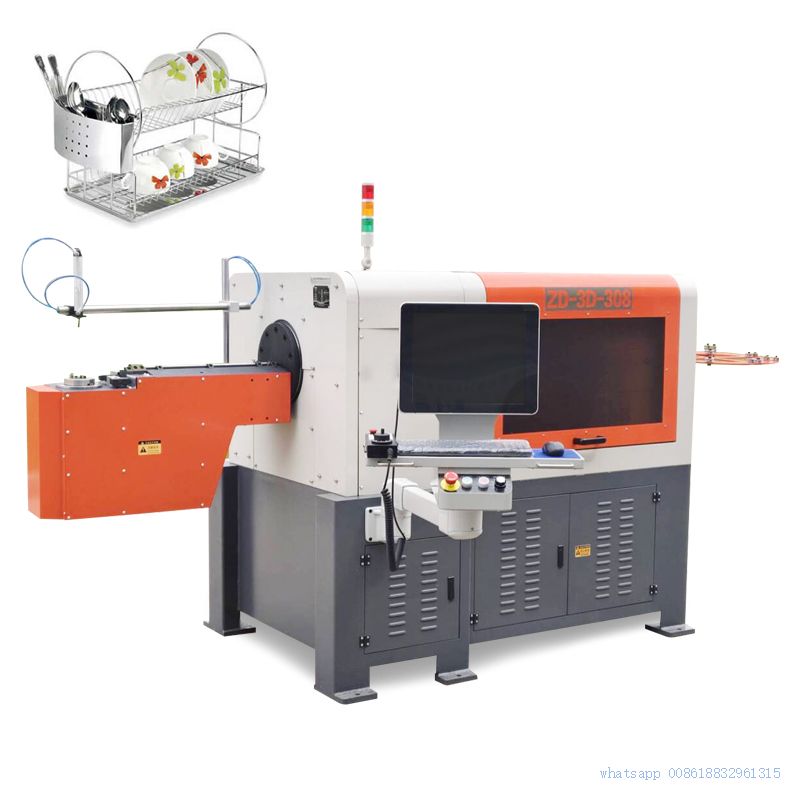

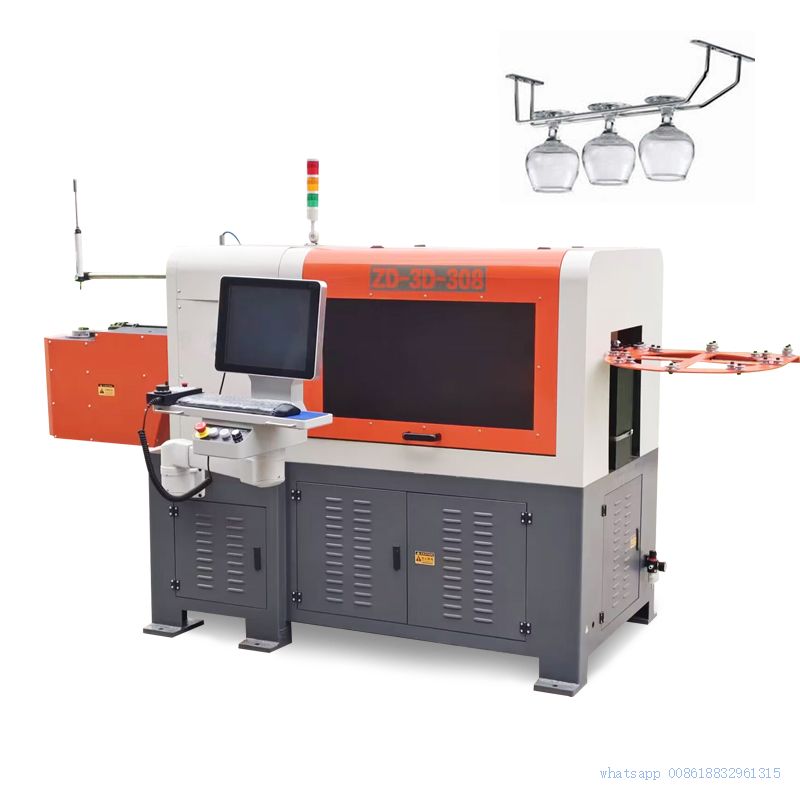

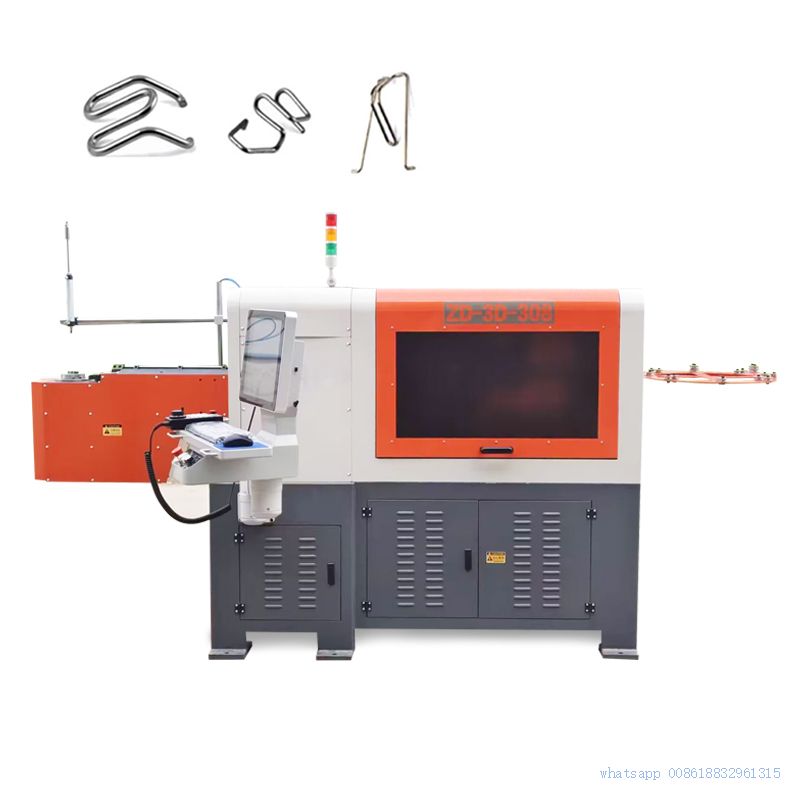

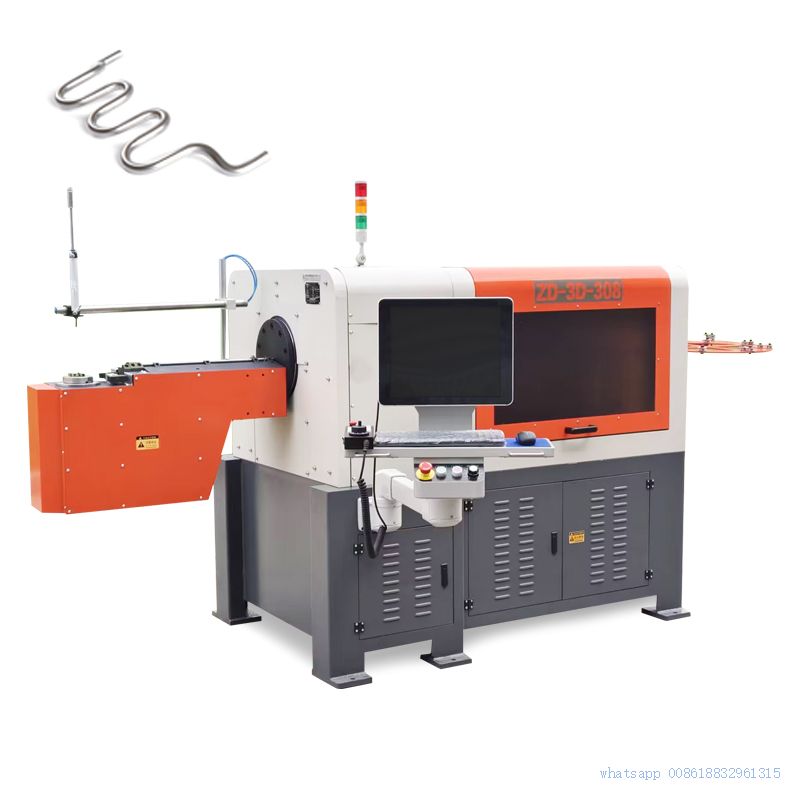

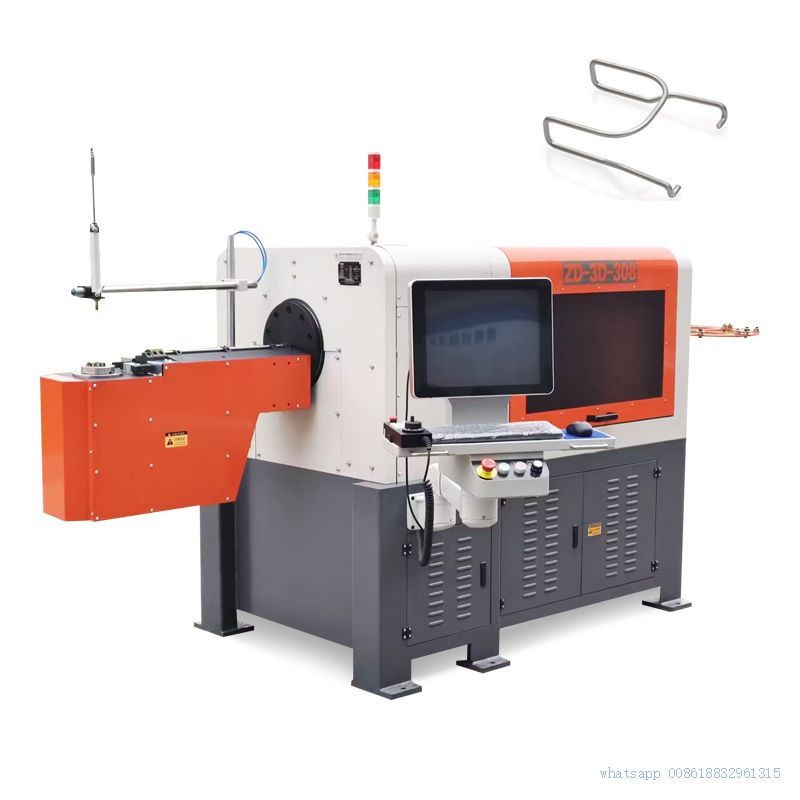

ZD-3D-308
GREATCITY
8463300000
Characteristics for this model wire bending machine 3d:
1. In principle, the head-turning forming machine does not turn the line, the head structure is light, and the head does not turn the line, so as to avoid errors caused by small line forming and ensure rapid and stable production operation.
2. The computer has fast startup and shutdown speed, simple and convenient operation, supports multi language operation, and the computer interface can change the program while adjusting speed while producing.
3. In terms of configuration, high-precision high-speed servo motor and reducer made or imported in China are adopted, which are stable and durable, and the production speed is more than 30% higher than that of similar products in China.
4. The wire feeding and rotating arm are separated and matched. When turning the head, the wire does not rotate, and the product forming of small outer diameter arc and multi circle can be realized.
5. The production program can realize that there is no change in the angle at different speed folding angles, and the production stability is better.
6. Bearings, gears and other important parts are imported accessories with a one-year warranty, and the equipment is durable and reliable
ZD-3D-308 model wire bending machine 3d basic parameters:
Model | ZD-3D-308 |
Axis | 3 axis |
Wire diameter | 3—8mm |
wire-feeding axis servo motor | 3.1kw |
applicable wire | Round wire,flat bar, square wire (any material) |
Arm-turning servo motor | 3kw |
Feeding speed max. | 100(m/min) |
Cutting axis servo motor | 3.1kw |
Angle-bending axis servo motor | |
Process | Lifting up and down for internal and outernal die |
Feeding accuracy | ±0.1mm |
Production capacity | 20-24 pieces/min,(200*200mm ,square) |
CNC contorl Operation system | Xinjie brand in Chinese and English (upload and download) |
voltage | 380V50HZ/60HZ3 Phases or customized |
weight | 1600kg |

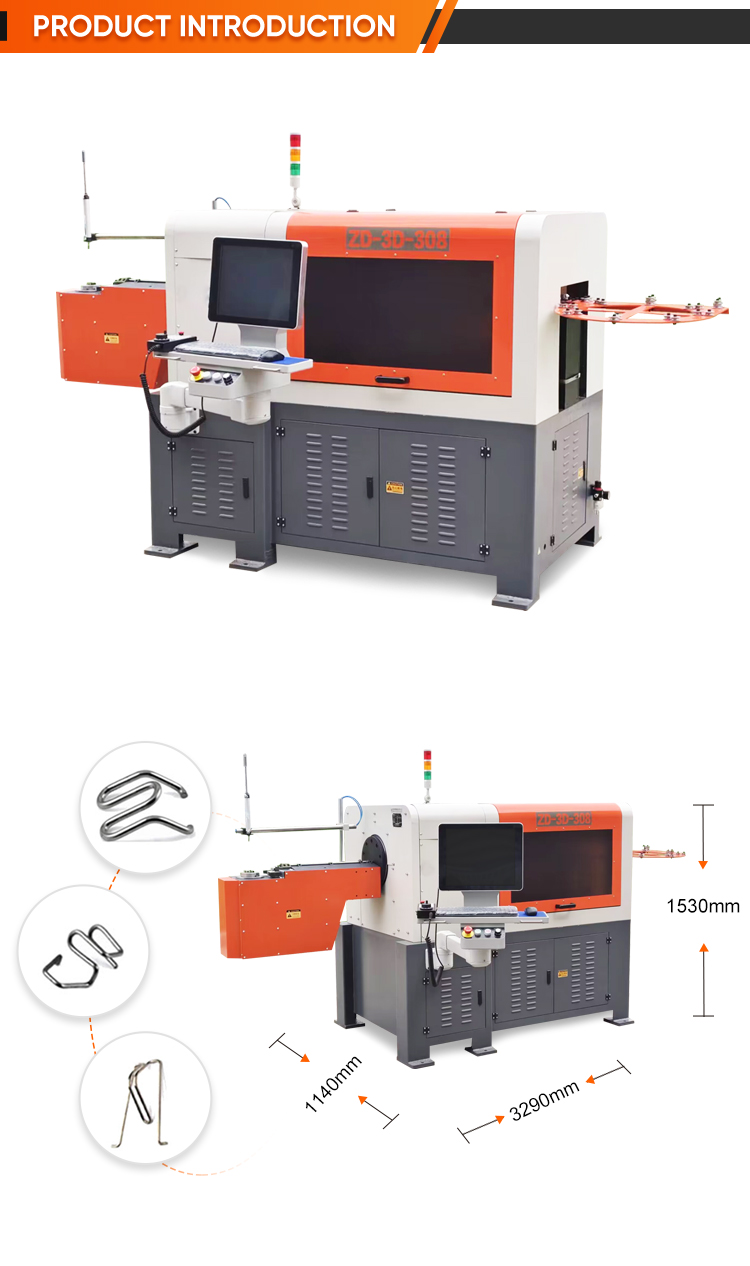

dimension | 3200×1300×1500mm |
More detaild show for wire bending machine 3d:
Packaging information: standard export wooden case packing for wire bending machine 3d
We have our own farwarder. and check the delivery information timely.
You can also choose your own forwarder . We will contact with him ASAP.
Delivery time: about 15-20 days after receiving the deposit
1. Help you choose the most suitable steel wire cnc bending machine.
2. Making the machine according to your request.
3. Give you machine’s details for help you use the machine more better.
4. 1 years warranty
5. Free repair whole using life without extra charge.
Xingtai Judu Technology Co.,LTD has more than 10 years professional production of wire bending machine 3d production equipment experience, with high quality research and development, management and production. The team, relying on scientific and rigorous management, equipped with perfect means of production and testing conditions, is the birthplace of important metal wire and hanger equipment in China, and integrates research and development design, manufacturing and sales clothing as a whole enterprise. The company has independent research and development of a number of wire molding patents, company legal person comes to production and research and development frontline, independent research and development.
1.what is wire bending machine 3d Packaging?
Free fumigation safe Wood case package & iron pallet
2.what is MOQ?
one set can be acceptable for trail order.
Over 2 sets can have wholesale price. Welcome to join us as our sales agent in your market.
3.can we do OEM and ODM?
Can changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4.what is your warranty?
Warranty 1 year
5.what is the time for delivery?
about 15-20 days for our own design after receipt of deposit
6.How to make the payment?
TT, 40%-50% as deposit ,balanced paid off when the machine is ready for the shipment (sending you the testing video for the confirmation)
