ZD-2D-308
Greatcity
8463300000

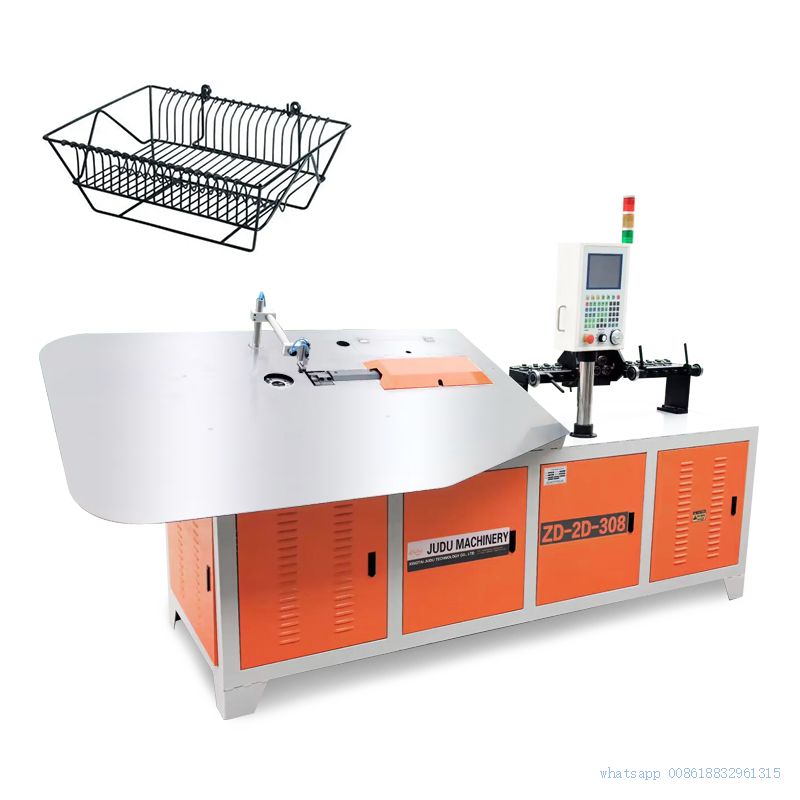

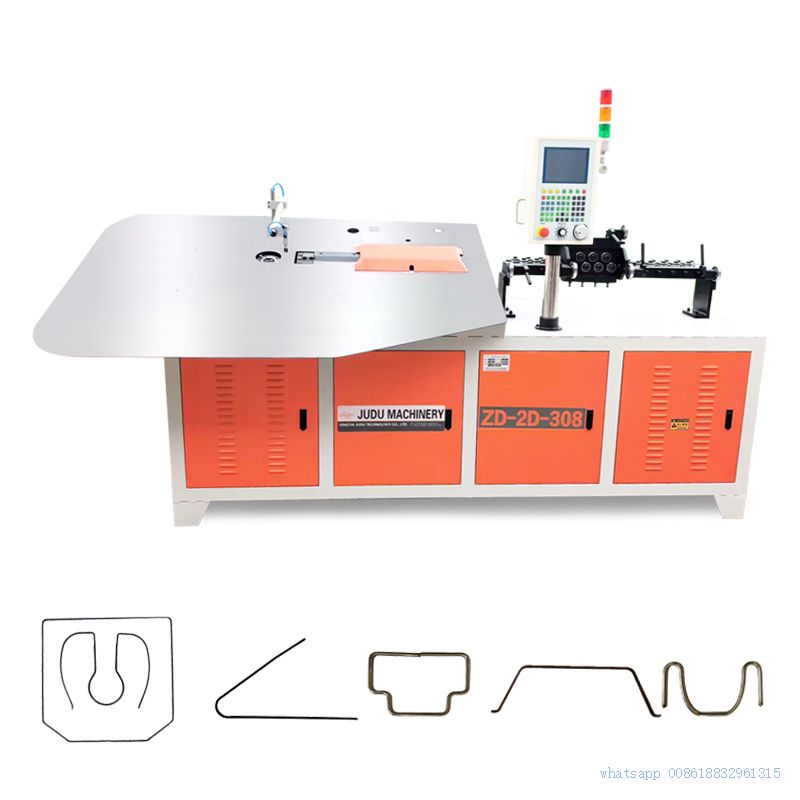

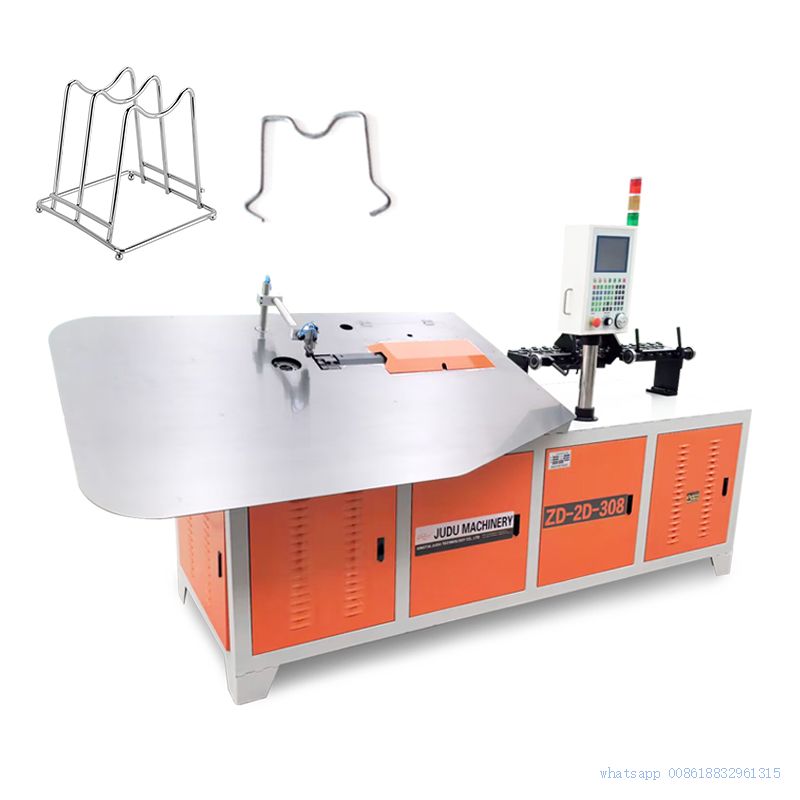

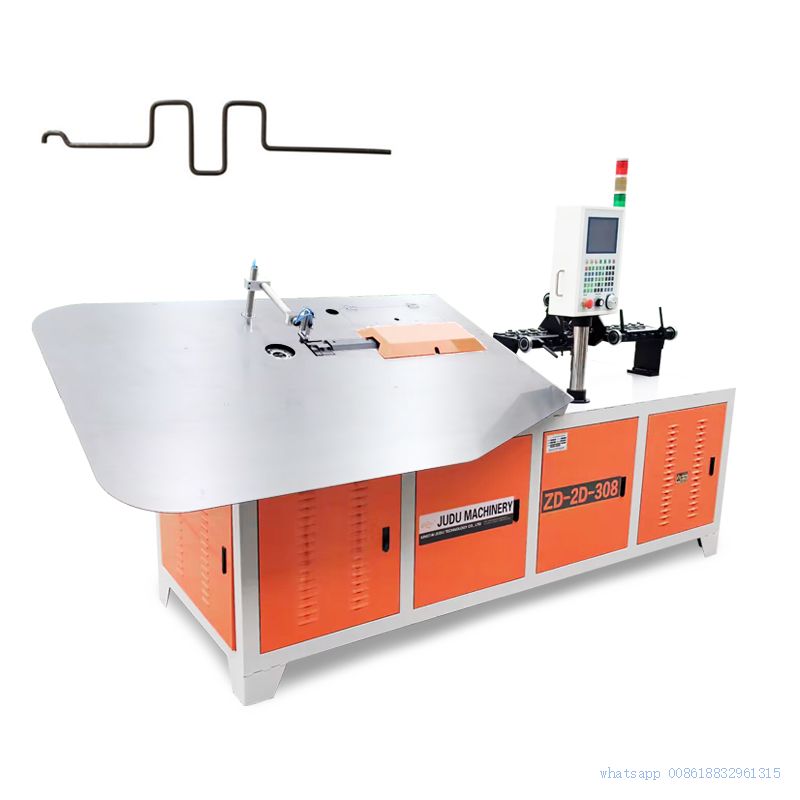

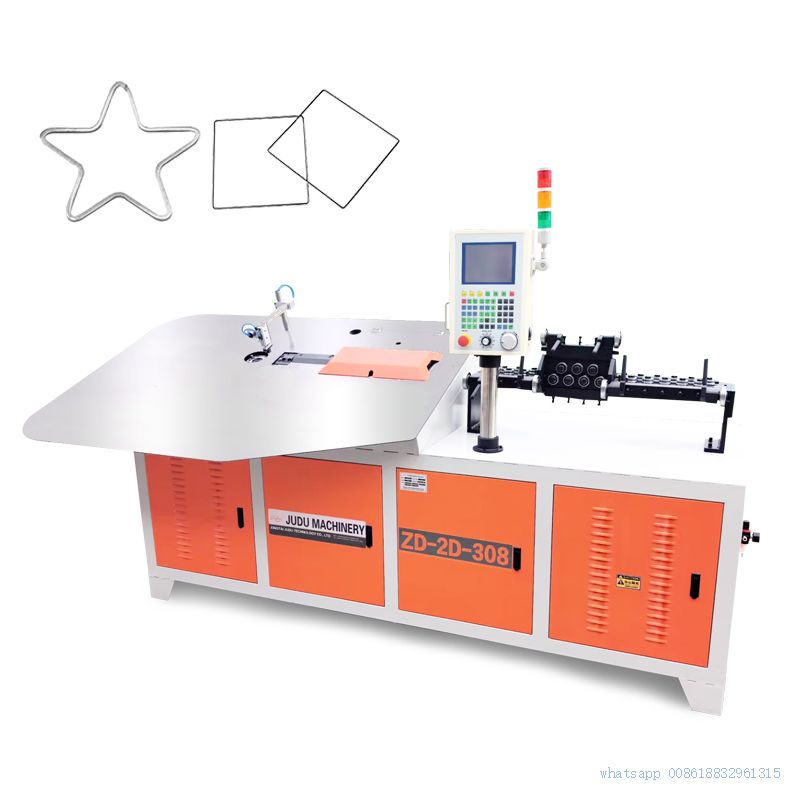

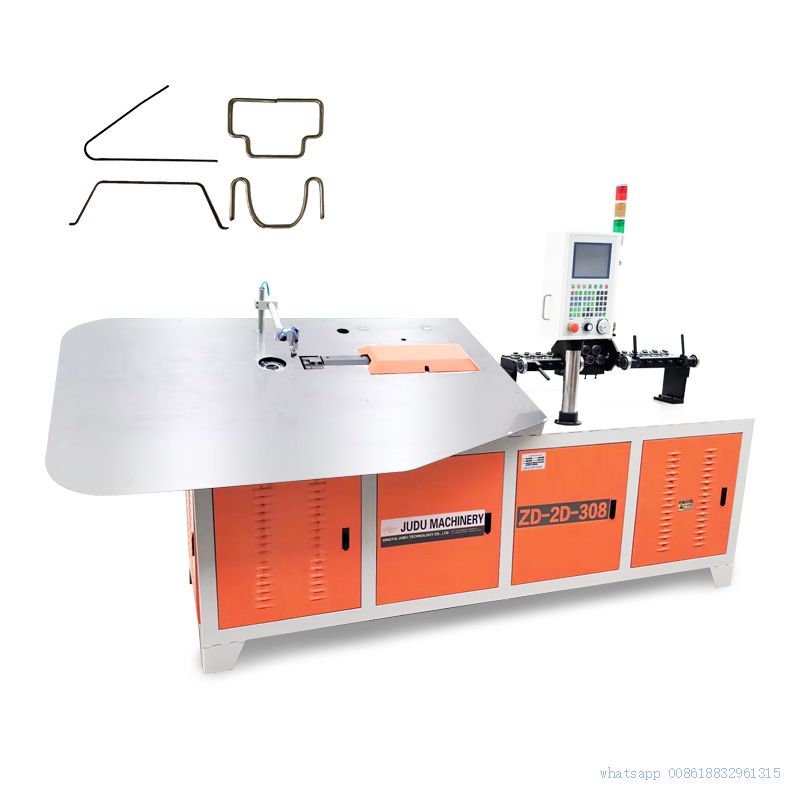

Factory Multifunction Automatic Cnc 2d Wire Forming Machine with Wire-feeding,straightening And Cutting
Advantages & Feature of cnc 2d wire forming machine From China:
The 2D wire bending machine is suitable for forming various two-dimensional shapes of various metals (such as steel, iron, stainless steel, aluminum wire, etc.), as well as flat buckles and hooks of various shapes and categories. The 2D wire forming machine can replace different molds and adapt to different forming molds, thus producing wires of different shapes and materials. The accessories and tools of the 2D wire bending machine equipment are made of wear-resistant alloy materials, which have strong stability and are not easily damaged.
cnc 2d wire forming machine Application field :
1)Auto Industry area
2)Metal wire industry
3)Display table and cargo shelf
4)Furniture and Kitchen
5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft
and so on
ZD-2d-308 model cnc 2d wire forming machine technical parameters:
Model | ZD-2D-308 |
Axis | 3 axis |
Wire diameter | 3-8mm steel wire |
wire-feeding wheel | 3 groups |
applicable wire | Round wire,flat bar, square wire (any material) |
Copy | 10000 datas,300 acts as a group |
Feeding speed max. | 100(m/min) |
Wire-feeding axis servo motor with reducer | 2.9kw |
Cutting axis servo motor with reducer | 1.0kw |
Angle-bending axis servo motor with reducer | 1.8kw |
Process | Lifting up and down for internal and outernal die Two-way bending |
Feeding accuracy | ±0.1mm |
Max. Bending speed | 800rpm/min,angle±180º |
Production capacity | 20-24 pieces/min,(200*200mm ,square) |
Operation system | 32 betain in Chinese and English (upload and download) |
voltage | 380V,50HZ,3 Phases or customized |
weight | 750kgs |
dimension | 3000×950×1500mm (each servo motor is with one reducer |
ZD-2d-308 model cnc 2d wire forming machine detailed show
Customer positive feedback
Company Information
Factory pictures
Our services of cnc 2d wire forming machine
1. Help you choose the most suitable 2d wire bending machine .
2. Making the machine according to your request.
3. Give you machines details for help you use the machine more better.
4. 2 years warranty
5. Provide overseas on-site machine maintenance guidance and after-sales service
Packaging and shipping
FAQ of 2d cnc wire forming machine
what is 2d wire bending machine Packaging?
Free fumigation safe Wood case package.
what is MOQ?
1set can be acceptable for trail order.
Over 3sets can have wholesale price. Welcome to join us as our sales agent in your market.
can we do OEM and ODM?
Can changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4. what is your warranty?
Warranty 1 years
5.what time for delivery?
5-7 days for our own design.(motor:380v 50hz 3phases)
10-15 days for cusmoized model.
6.How to make the payment?
TT, 40-50% in advance as deposit ,balanced paid off when the machine is finished and tested well with your requested workpiece before shippment.
Any questions or requirements for Factory Multifunction Automatic Cnc 2d Wire Forming Machine with Wire-feeding,straightening And Cutting,welcome to contact me at any time
We are a Chinese manufacturer specializing in the production of CNC 2d Wire Forming Machine , with many years of industry experience. We have our own independent research and development design team and production team, as well as a complete after-sales service system. We can provide customized services according to your needs. If you are interested in our products, please feel free to contact us at any time.
