ZD-3D-308
GREATCITY
8463300000
Factory Production Automatic Cnc 2d Wire Frame Forming Welding Machine with butt welding
Our 2d wire frame forming welding machine is to produce kinds of 2D wire frame forms with welding function expertly with high precision and fast speed. Adopts brand servo motor and screen display with top controller.It can process both round wire and flat wire.
ZD-2d-308 model 2d wire frame forming welding machine main technical parameters:
Model | ZD-2D-308 |
Axis | 3 |
Wire diameter | 3—8mm iron wire |
wire-feeding wheel | 3 |
applicable wire | Round wire,flat bar, square wire (any material) |
Copy | 10000 datas,300 acts as a group |
Feeding speed max. | 94.2-100(m/min) |
wire-feeding accuracy | 0.1mm |
Wire-feeding axis servo motor(with reducer) | 4.5kw |
Cutting axis servo motor(with reducer) | 2.0kw |
Angle-bending axis servo motor(with reducer) | 3.8kw |
welding power | 80KW |
Process | Lifting up and down for internal and outernal die Two-way bending |
Feeding accuracy | ±0.1mm |
Max. Bending speed | 800rpm/min,angle±180º |
Production capacity | 20-24 pieces/min,(200*200mm ,square) |
Operation system | 32 betain in Chinese and English (upload and download) |
voltage | 380V,50HZ/60HZ,3 Phases |
weight | 900kg |
dimension | 2800×1000×1400 |

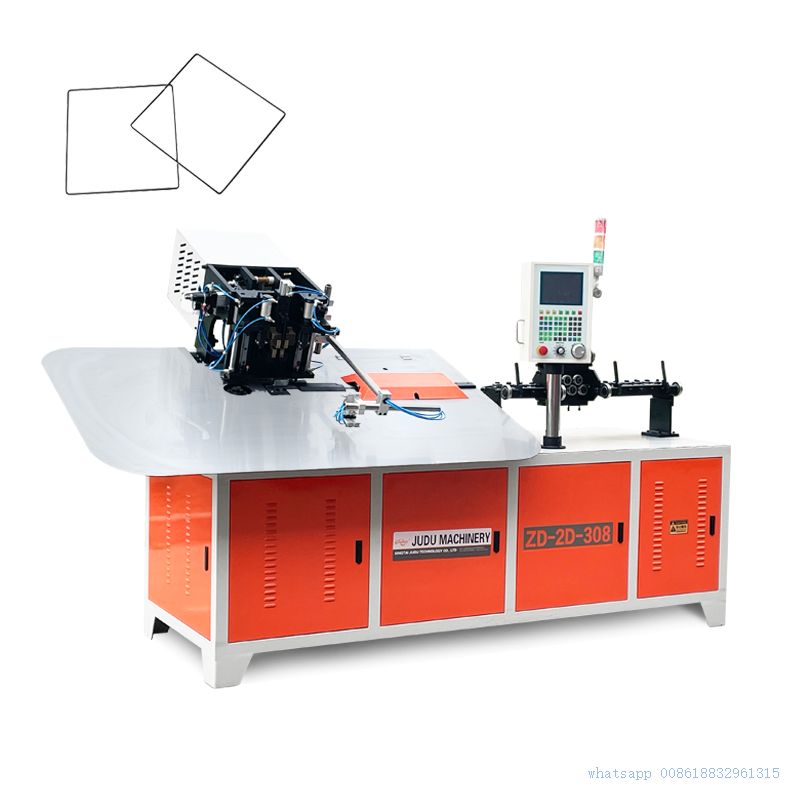

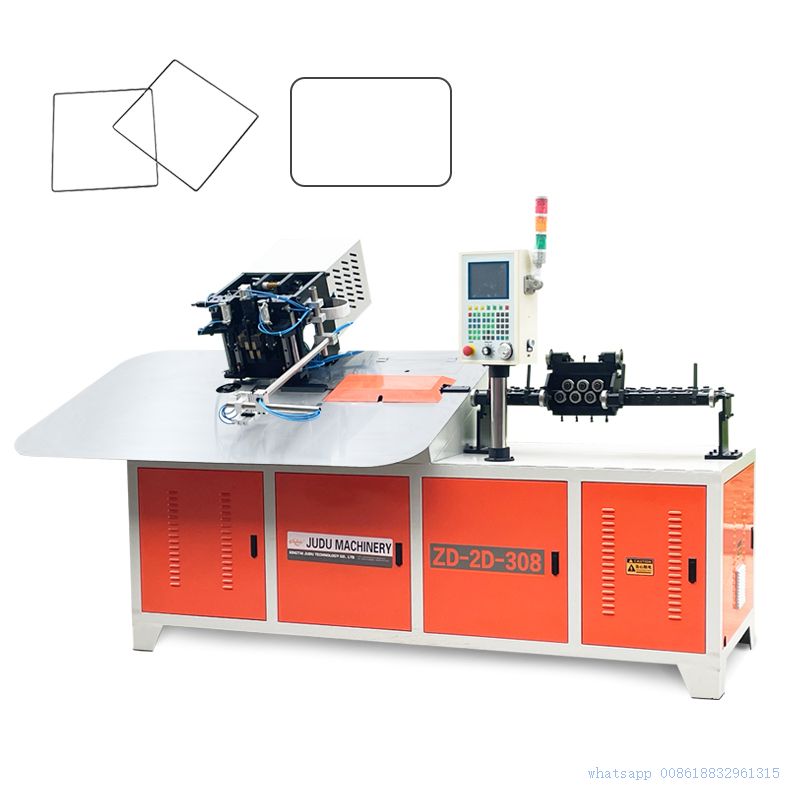

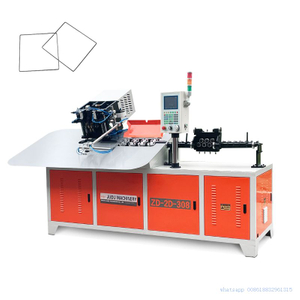

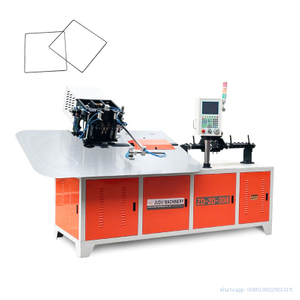

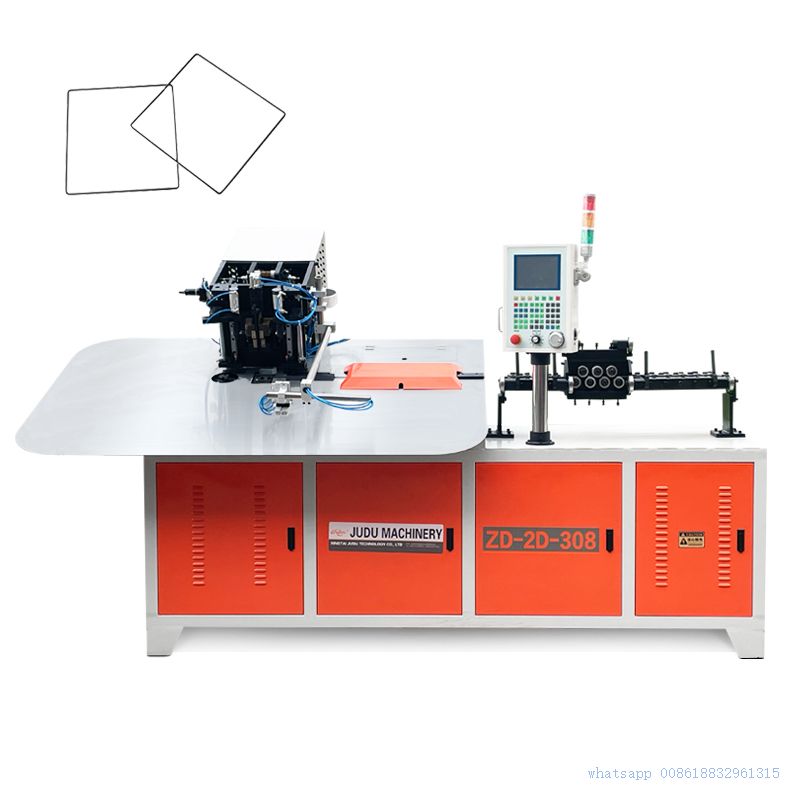

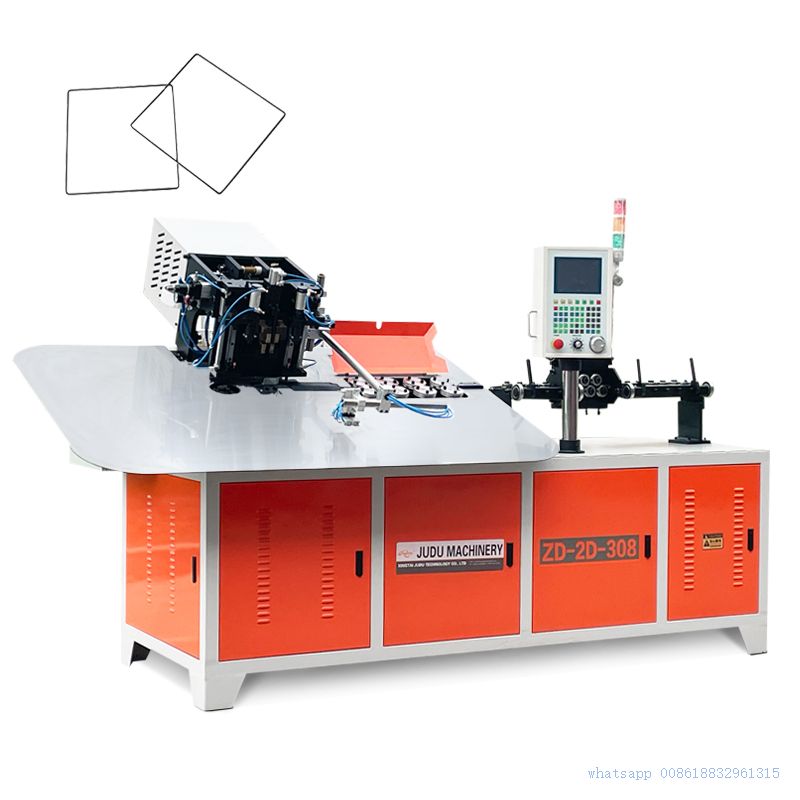

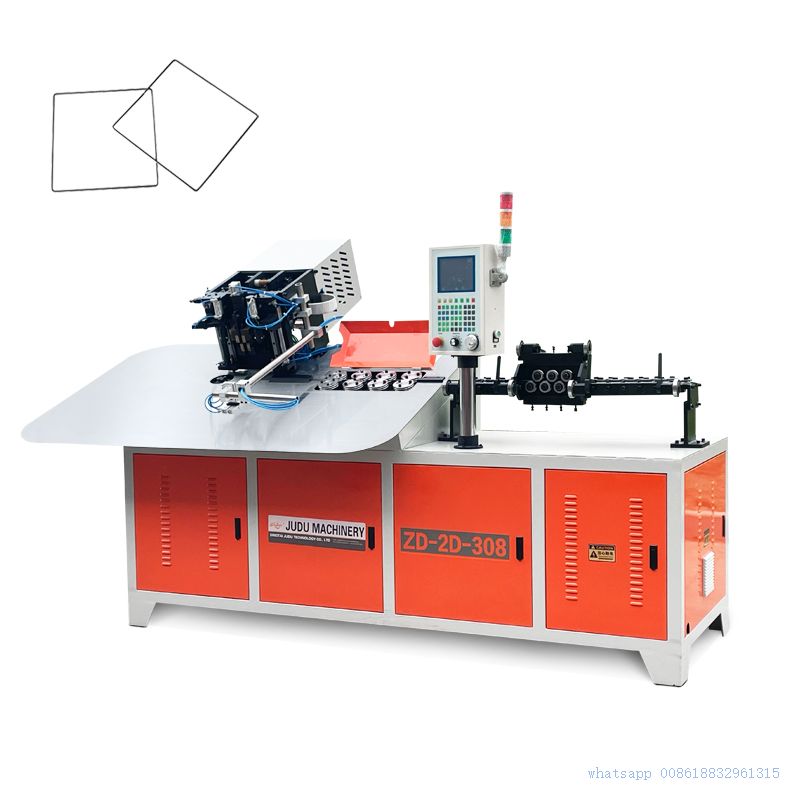

ZD-2D-308 model 2d wire frame forming welding machine detailed show :
We are a Chinese manufacturer specializing in the production of 2d wire frame butt welding forming machine , with many years of industry experience. We have our own independent research and development design team and production team, as well as a complete after-sales service system. We can provide customized services according to your needs. If you are interested in our products, please feel free to contact us at any time.
