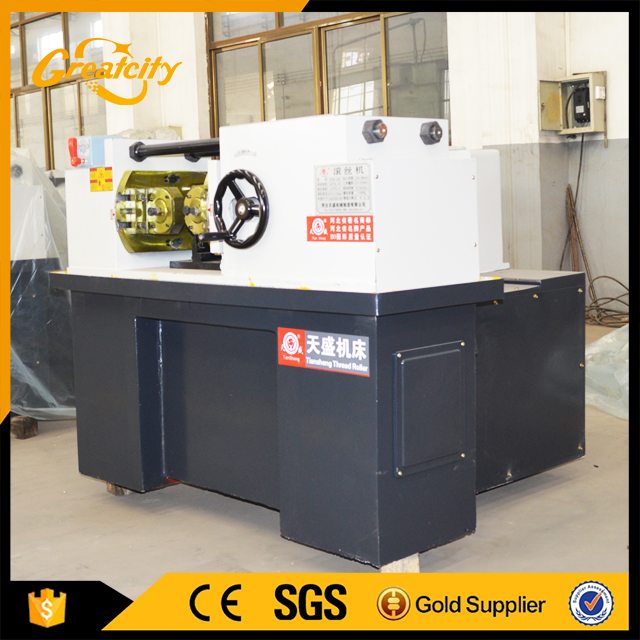

Greatcity Thread Rolling Machine for Make Studs 1 Meter Length

Greatcity Thread Rolling Machine for Make Studs 1 Meter Length

Product Description

Mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread. It also can do the rolling process, forming, slidabrading, knurling etc.

Apply for all kinds of carbon steel, alloy steel and non-ferrous metals, the elongation is more than 10%, the compressive strength is less than 100 KGF/m m2.

Technical Parameter

Model	Z28-40 thread rolling machine
Rolling diameter	5-36mm
Roller dia range	120-170mm
Axis transmission power	5.5kw
Hydraulic power	2.2kw
Dimension	1350*1210*1350mm
Weight	1200kg

Detailed Photos

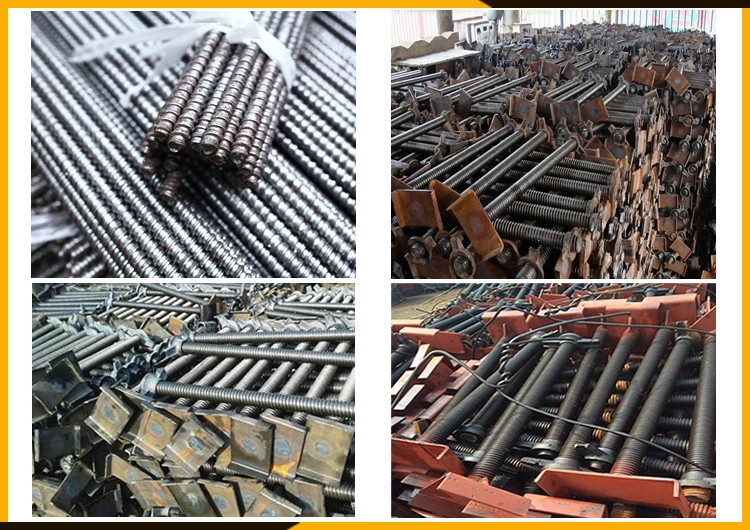

what is the workpiece of this machine?

Working principle of thread rolling machine video:

L and R are two pairs of involute rolling wheels with the same parameters, which are installed on two spindles of the rebar thread rolling machines, and can rotate synchronously under the drive of the transmission mechanism.The R wheel can be driven by the oil cylinder for radial feed motion, and the L wheel can be adjusted by adjusting the mechanism to coincide with the indentation of the R wheel on the surface of the workpiece P. The P locate the two center hole clamping, the adjustment fixture can make the axial movement in the force around the fixture O and spindle parallel to the axis of an angle, to ensure that the workpiece in the cold rolling process and keep two rolling wheels to roll in the free state, and convenient clamping the workpiece. The structure size, geometrical tolerance and technical requirements of the rolling wheel are formulated according to the rolling wheel and cylindrical measuring gear. The length of the normal line or the cross bar distance of the rolling wheel M is calculated according to the spline data of the gear, and the required material can be Cr12MoV (hardness 59 ~ 62HRC)

RFQ of thread rolling machine

 1, Q: How about the after service?

A: We have a strong team, special for after service. We can arrange engineers to do service for you.

2, Q: Are you factory or trading company?

A: We are a factory in this field nearly 15 years

3, Q: Where is your factory located? How can I visit there?

A:Our factory is located in Xingtai City. Hebei province. You can fly to zhengding airport and or by high-speed train directly. I will pick you up .

4, Q:How does your factory do regarding quality control?

A:Quality is priority. We always attach great importance to quality controlling from the beginning.

5, Q: why choose GREATCITY thread rolling machine?

A: We are one of leader in this field(in China). Our quality products and service have enabled us to expand our market from china to more than 60 countries.
