| Warranty: | |
|---|---|
| Process diameter : | |
| Control system: | |
| servo motor: | |
| Certificate: | |
ZD-3D-5012
Greatcity
8463300000

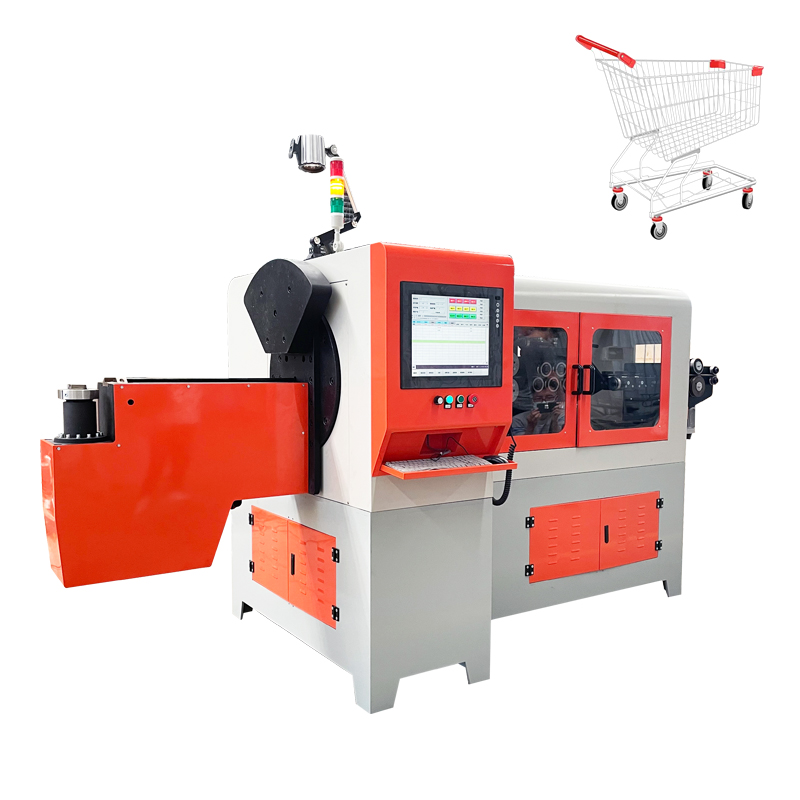

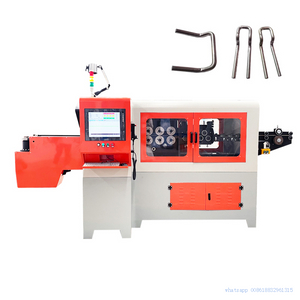

Characteristics for this model 3d Cnc Steel Wire Bending Wire Bender Machine
The ZD-3D-5012 wire bending machine is suitable for 5-12mm round and flat wire and iron wire. The machine adopts Yaqi servo motor and Yaqi CNC control system, and can store 10000 workpieces. It has functions such as wire feeding, turning, bending, and cutting, and is easy to operate. The equipment is equipped with a Taiwan Faston helical gear reducer, which has high precision and durability. The important components such as bearings and gears are all imported parts, with a one-year warranty. The equipment is durable and reliable, with quality assurance, and can meet customers' needs for high standard wire forming production.
At the same time, all machines come with operation manuals when they leave the factory. We have a complete after-sales service system, and our company provides on-site guidance, installation, debugging, and teaching services, or remote video training. The wire bending machine comes with operation manuals that can also be read and operated by oneself.
ZD-3D-5012 model 3d Cnc Steel Wire Bending Wire Bender Machine basic parameters:
Model | ZD-3D-5012 |
Axis | 5 |
Wire diameter | 5-12mm |
wire-feeding axis servo motor | 7.5kw |
applicable wire | Round wire,flat bar, square wire (any material) |
Head rotating axis servo motor | 4.5kw |
Feeding speed max. | 100(m/min) |
Cutting axis servo motor | 3.1kw |
Angle-bending axis servo motor | 7.5kw |
Process | Lifting up and down for internal and outernal die |
Feeding accuracy | ±0.1mm |
Production capacity | 20-24 pieces/min,(200*200mm ,square) |
Operation system | in Chinese and English (upload and download) |
voltage | 380V50HZ/3 Phases |
weight | 2000kg |
dimension | 3200×1300×2000mm |

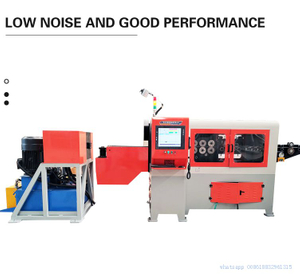

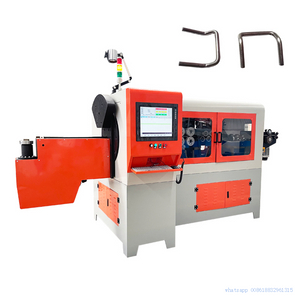

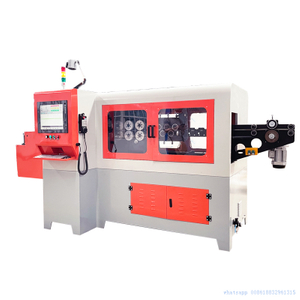

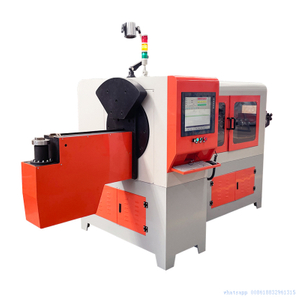

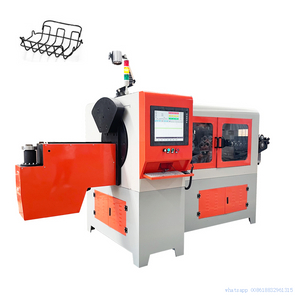

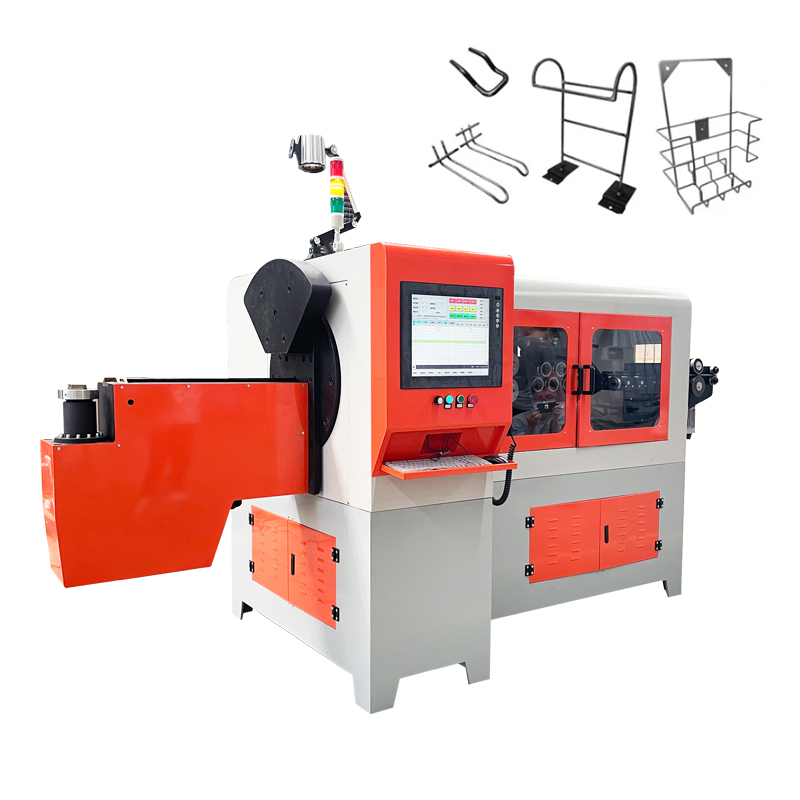

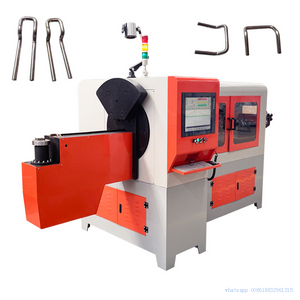

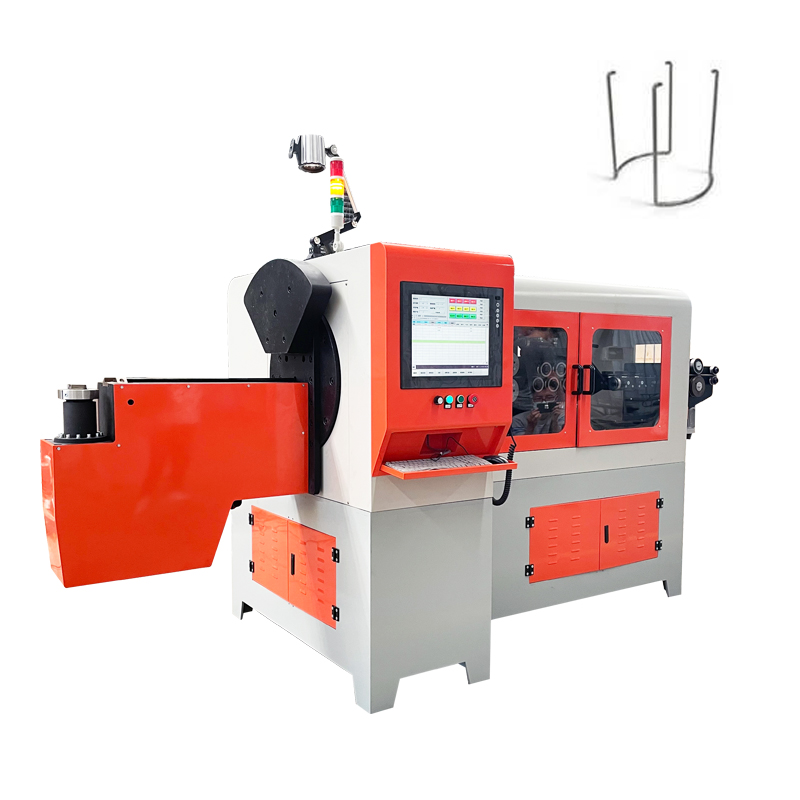

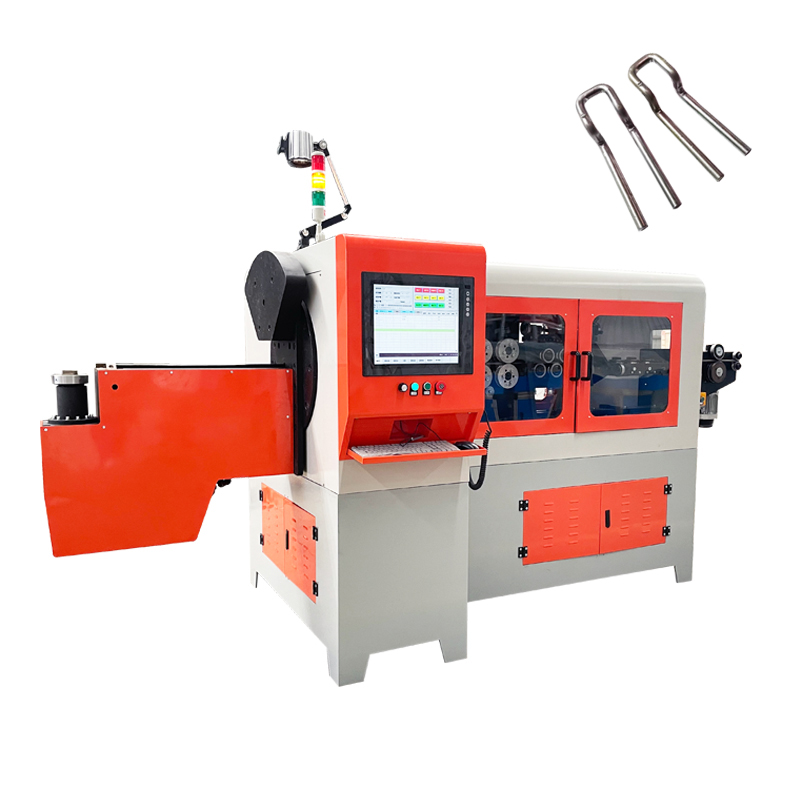

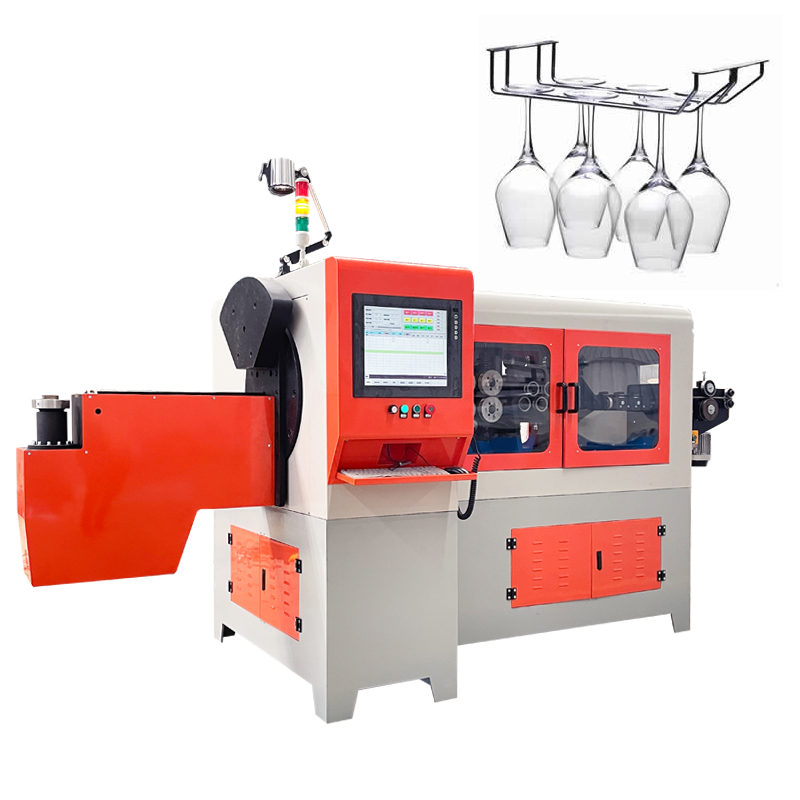

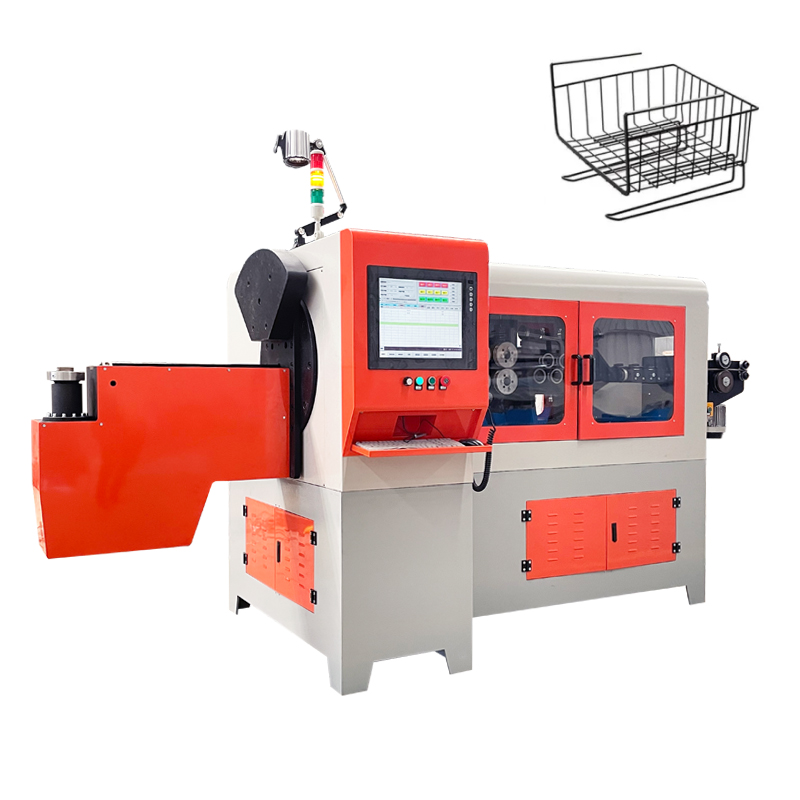

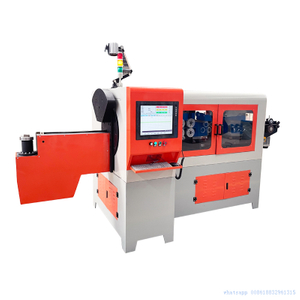

More detailed show for this model 3d Cnc Steel Wire Bending Wire Bender Machine:
Customer positive feedback
Packaging information: standard export wooden case packing for 3d cnc wire bending machine
We have our own farwarder. and check the delivery information timely.
You can also choose your own forwarder . We will contact with him ASAP.
Delivery time: about 25-30 days after receiving the deposit
1. Help you choose the most suitable steel wire cnc bending machine.
2. Making the machine according to your request.
3. Give you machine’s details for help you use the machine more better.
4. 1 years warranty
5. Provide overseas on-site machine maintenance guidance and after-sales service.
Xingtai Judu Technology Co.,LTD has more than 10 years professional production of 2d and 3d Cnc Steel Wire Bending Wire Bender Machine production equipment experience, with high quality research and development, management and production. The team, relying on scientific and rigorous management, equipped with perfect means of production and testing conditions, is the birthplace of important metal wire and hanger equipment in China, and integrates research and development design, manufacturing and sales clothing as a whole enterprise. The company has independent research and development of a number of wire molding patents, company legal person comes to production and research and development frontline, independent research and development

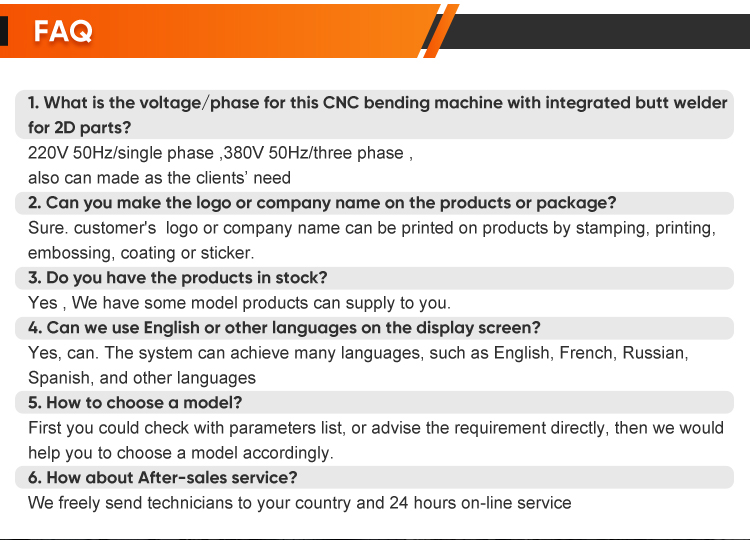

1.what is 3d wire rod bending machine Packaging?
Free fumigation safe Wood case package & iron pallet
2.what is MOQ?
one set can be acceptable for trail order.
Over 3 sets can have wholesale price. Welcome to join us as our sales agent in your market.
3.can we do OEM and ODM?
Can changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4.what is your warranty?
Warranty 1 year
5.what is the time for delivery?
about 30 days for our own design after receipt of deposit
6.How to make the payment?
TT, 40%-50% deposit ,balanced paid off when the machine is ready for the shipment (sending you the testing video for the confirmation)
.
We are a Chinese manufacturer specializing in the production of 3d Cnc Steel Wire Bending Wire Bender Machine, with many years of industry experience. We have our own independent research and development design team and production team, as well as a complete after-sales service system. We can provide customized services according to your needs. If you are interested in our products, please feel free to contact us at any time.
