ZD-2D-308
Greatcity
8463300000

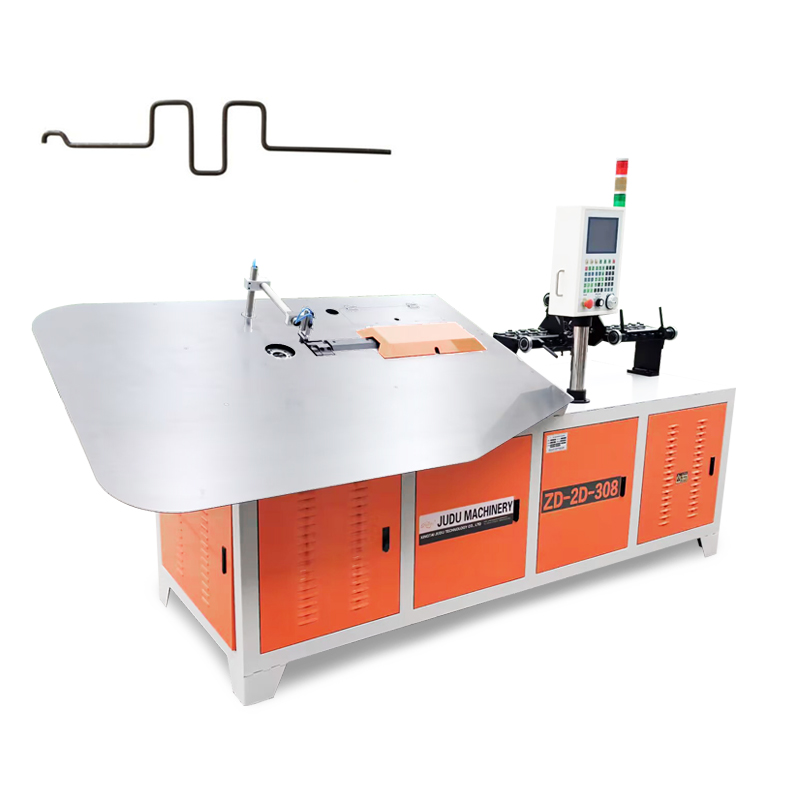

Latest ZD-2D-308 Model Process 8mm Carbon Steel Wire Forming Machine Price
Advantages & Feature of 2d cnc wire forming machine From China:
The 2D wire forming machine replaces manual labor with machines, improves production efficiency, saves production costs, does not require frequent mold replacement, adopts CNC operation, has high forming accuracy, and has a small wire error rate.
The inner and outer molds of the 2D wire forming machine can rotate and lift, and are sturdy and durable. The 2D wire bending machine adopts servo motors and Yaqi CNC system, which has the advantages of fast wire feeding speed, high wire forming accuracy, high workpiece flatness, and simple equipment operation.
2d cnc wire forming machine Application field :
1)Auto Industry area
2)Metal wire industry
3)Display table and cargo shelf
4)Furniture and Kitchen
5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft
ZD-2d-308 model 2d cnc wire forming machine technical parameters:
Model | ZD-2D-308 |
Axis | 3 axis |
Wire diameter | 2—8mm hard wire.3-6mm soft wire |
wire-feeding wheel | 3 |
applicable wire | Round wire,flat bar, square wire (any material) |
Copy | 10000 datas,300 acts as a group |
Feeding speed max. | 100(m/min) |
Wire-feeding axis servo motor with reducer | 2.9kw |
Cutting axis servo motor with reducer | 1.0kw |
Angle-bending axis servo motor with reducer | 1.8kw |
Process | Lifting up and down for internal and outernal die Two-way bending |
Feeding accuracy | ±0.1mm |
Max. Bending speed | 800rpm/min,angle±180º |
Production capacity | 20-24 pieces/min,(200*200mm ,square) |
Operation system | 32 betain in Chinese and English (upload and download) |
voltage | 380V,50HZ,3 Phases or customized |
weight | 850kgs |
dimension | 3100×950×1500mm (each servo motor is with reducer） |
ZD-2d-308 model 2d cnc wire forming machine detailed show:
Our services of 2d cnc wire forming machine From China:
1. Help you choose the most suitable 2d wire bending machine .
2. Making the machine according to your request.
3. Give you machines details for help you use the machine more better.
4. 2 years warranty
5. Free repair whole using life without extra charge.
FAQ of 2d cnc wire forming machine
what is 2d wire bending machine Packaging?
Free fumigation safe Wood case package.
what is MOQ?
1set can be acceptable for trail order.
Over 3sets can have wholesale price. Welcome to join us as our sales agent in your market.
can we do OEM and ODM?
Can changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4. what is your warranty?
Warranty 1 years
5.what time for delivery?
5-7 days for our own design.(motor:380v 50hz 3phases)
10-15 days for cusmoized model.
6.How to make the payment?
TT, 40-50% as deposit ,balanced paid off when the machine is tested well before shippment.
our factory show for 2d cnc wire forming machine:
