ZX-3D-208
GREATCITY
84633000
Low Price ZX-3D-208 Model Automatic 4 Axis 6 asix 8 axis Rotary-wire cnc 3d Wire Bending Forming Machine
3D wire bending forming machine Advantages & Feature:
This 3d wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts famous brand Servo motorand screen display or customized controller.
3 groups feeding roller 3 groups straightening wheels, feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotatings more fast and light, turning angle is more precise and stable.
3D wire bending forming machine can be used for
1) Auto Industry area 2) Metal wire industry
3) Furniture and kitchen4) Hardware industry
5) Mattress, sofa spring srea6) Architecture area
7) Hardware Artcrafe and so on.
3D wire bending forming machine main technical parameters and configurations:
Model | ZX-3D-208 wire bending machine |
Number of shaft | 4 |
Diameter of the steel wire(mm) | Hard material:Φ2.0 ~Φ 6.0 Soft material :Φ2.0 ~ Φ8.0 |
Number of wire feeder | 2 suits |
Wire rotation angle | 360 degrees unlimited number of turns |
Applicable wire | Round wire, flat wire, square wire (applicable to any wire material) |
Data storage | 10000 data, 300 data as a group |
Maximum wire feed speed | 100m/min |
Feeding servo motor power | 3.1kw |
Bending Cutting motor power | 3.1kw |
Swing wire motor | 3.0kw |
Platform lifting motor power | 1.5kw |
Servo motor total power | 10.7kw |
Action direction | Both the inner and outer molds can be raised and lowered, and the positive and negative bending |
Feeding accuracy | ±0.1 |
Internal mold angle rotation | ±180° |
Input power | 380V, 50HZ/60HZ |
Machine weight | 1650kg |
Machine size | 3000*1300*1400mm |

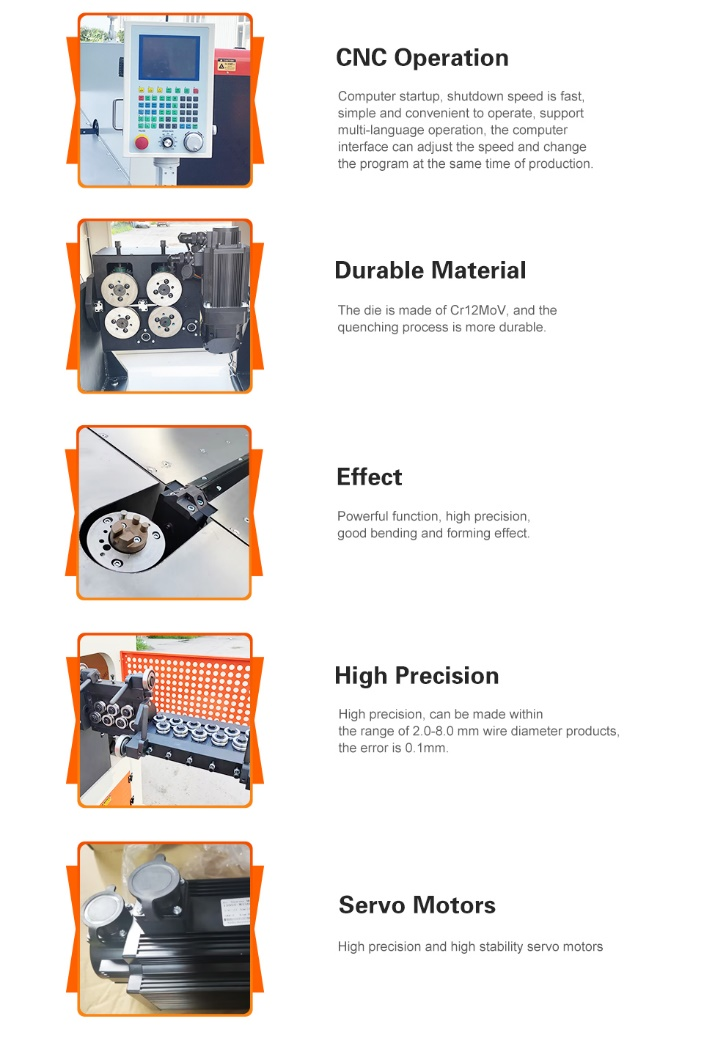

Detailed photos of this model 3D wire bending forming machine :
3D wire bending forming machine export packing and shipment

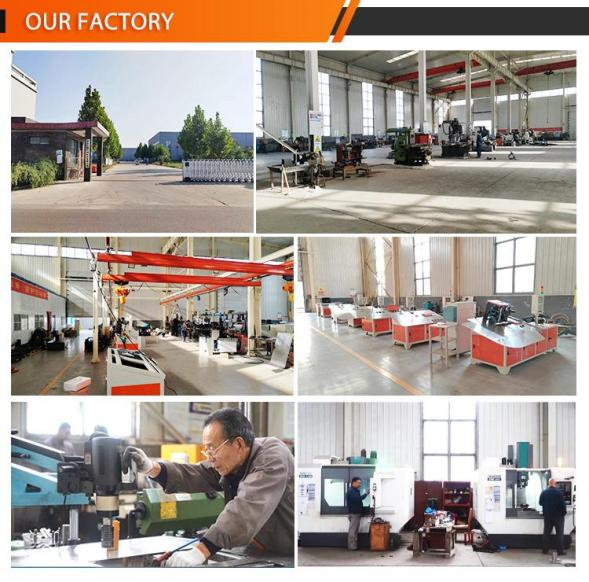

Xingtai Judu Technology Co. Ltd is located in the historical industrial zone, Hebei province. Founded in 1999, we are a professional manufacturer of series of automatic 2d & 3D wire bending forming machine ,CNC stirrup bending machine and bucket handle making machine series. For twenty years in development, our company has always been adhering to credit the first best quality in after sale service, innovation, self-improvement, adhere an independent intellectual property right as the core of scientific and technological innovation. The current steel hoop bending machine and horizontal lathes for the company's main product are sold throughout the country, some products exported to Asia, Africa, and other countries and regions, we are abide by integrity and innovation, entrepreneurial spirit, relying on leading research and development capabilities efficient manufacturing, stable quality and good service to meet the needs of our customers at home and abroad, the company has now passed the ISO9001:2000 international quality management system certification.
"Greatcity" trademark has been identified as an unique brand name product that got the honorary title among many.
Within more than 20 years of development besides struggles, GreatCity is still keeping up its effort to maintain a brilliant business success in whole over the world due to its hardworking, courage and the will to improve its creation for customer satisfaction and maintain the reputation to be the best Chinese machinery manufacturer.
1.Any inquiries will be replied within 24 hours.
2.Professional manufacture, welcome to visit our website
3.OEM/ODM available
4.High quality, fashion designs, reasonable and competitive price, fast lead time
5.After-sale service:
All products will be well packaged before shipping
All our products have 1 year warranty, and we sure the product will be free from maintenance with warranty period
If any interest or other requirements for 3D wire bending forming machine , please kindly contact me with the following :
Contact: Mr. Jack Song Tel:+18633452172
Email : peterson(@)greatcitygroup.com
