ZD-2D-512
greatcity
8463300000
Multi-function ZD-2D-5012 Model 3 Axis Or 5 Axis Automatic 2d Cnc Wire Forming Machine in Stock

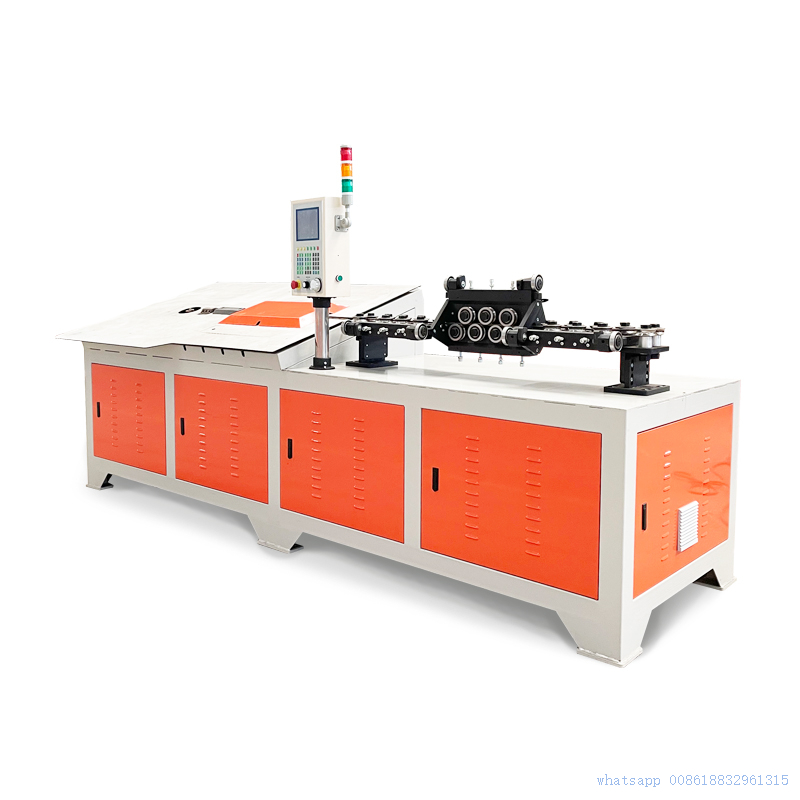

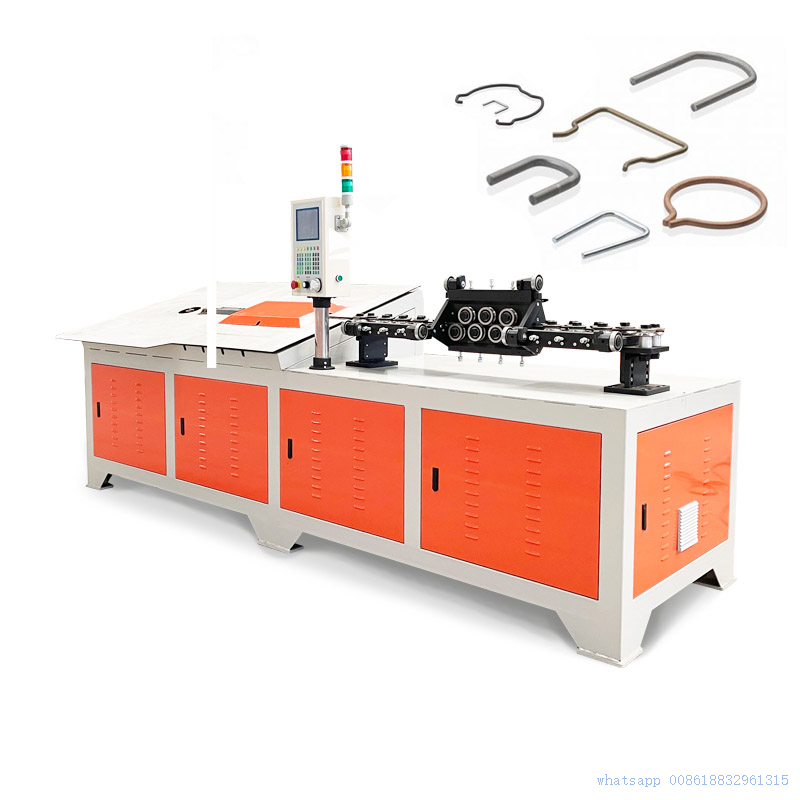

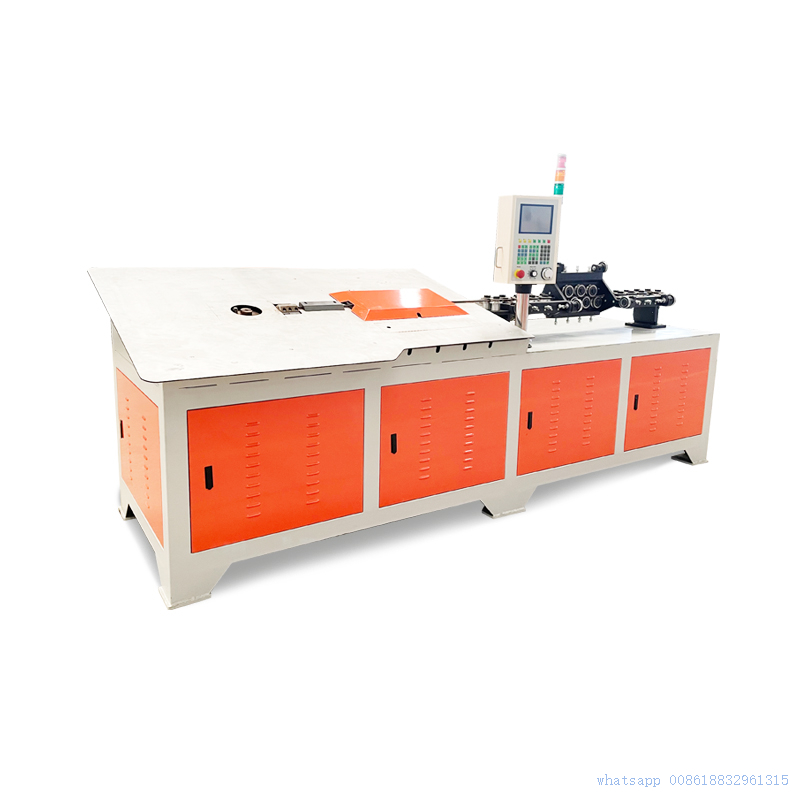

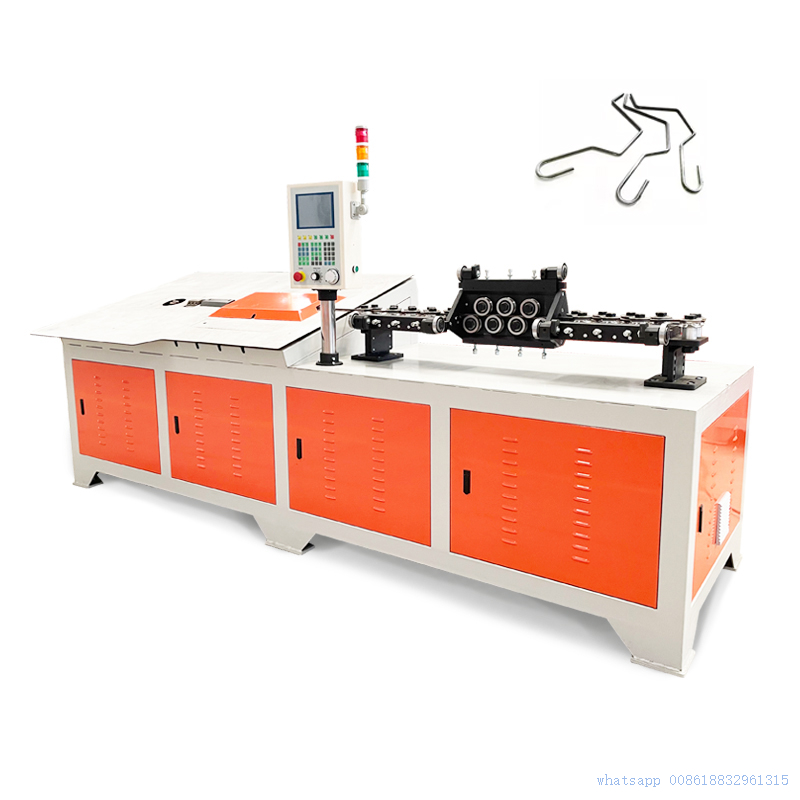

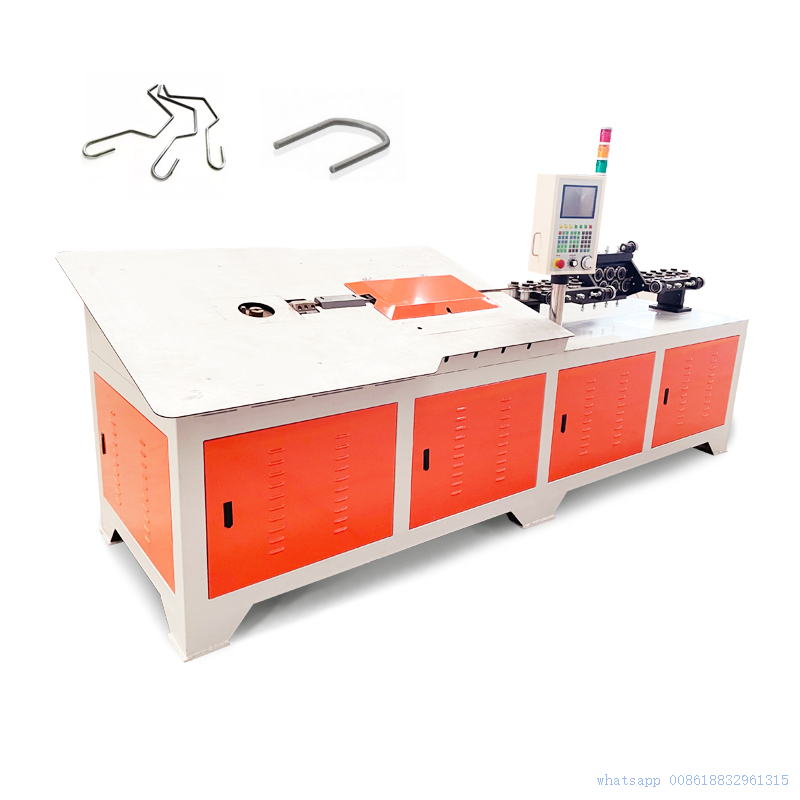

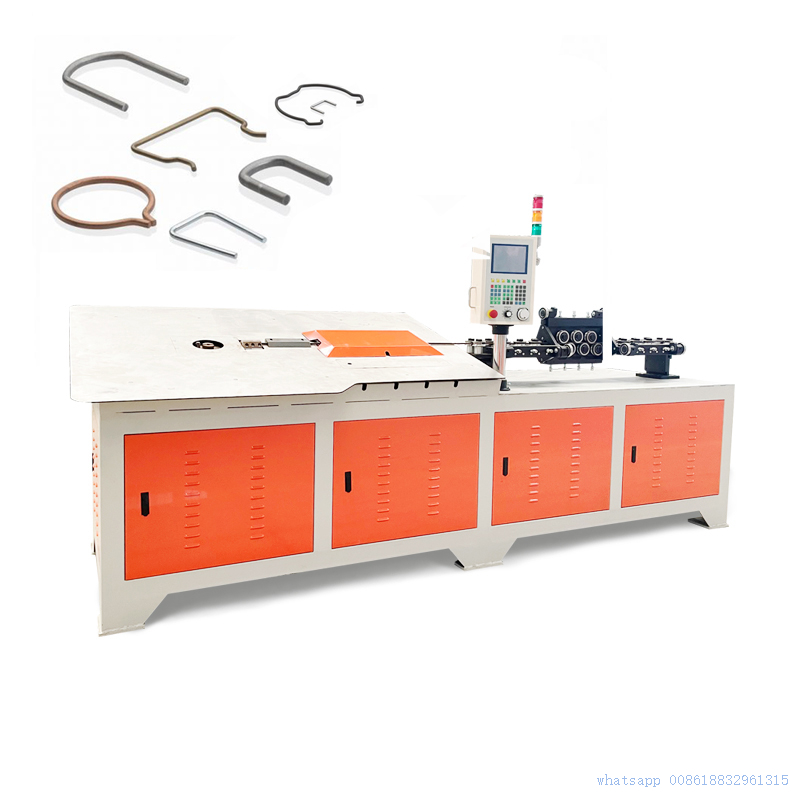

2D cnc wire forming machine Introduction:
Our 2d wire forming machine is to produce kinds of 2D wire forms expertly with high precision and fast speed. Adopts brand servo motor and screen display with top controller.
Advantages & Feature:
1. The error of full servo motor is smaller, the bending efficiency is higher, and the error is smaller than that of similar products of hydraulic press.
2. CNC operation is simpler and easier to learn than the same type of PLC products. Generally, the simple program can be edited by oneself within half an hour with elementary school education.
3. Because all the servo motors are used, there will be no hydraulic failure, the failure rate is lower, the scrubbing is more convenient, and the pollution caused by oil pollution will not occur.
2D cnc wire forming machine Application field :
1)Auto Industry area
2)Metal wire industry
3)Display table and cargo shelf
4)Furniture and Kitchen
5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft
and so on .
2d cnc wire forming machine Technical Parameter:
Model | ZD-2D-512 |
Axis | 3 |
Wire diameter | 5-12mm iron wire |
wire-feeding wheel | 3 |
applicable wire | Round wire (any material) |
Copy | 10000 datas,300 acts as a group |
Feeding speed max. | 94.2(m/min) |
Wire-feeding axis servo motor | 7.5kw |
Cutting axis servo motor | 2.6kw |
Angle-bending axis servo motor | 7.5kw |
Process | Lifting up and down for internal and outernal die Two-way bending |
Feeding accuracy | ±0.1mm |
Max. Bending speed | 800rpm/min,angle±180º |
Production capacity | 20-24 pieces/min,(200*200mm ,square) |
Operation system | 32 betain in Chinese and English (upload and download) |
voltage | 380V,50HZ,3 Phases |
weight | 1800kg |
dimension | 3400×1200×1800 |
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ of 2d cnc wire forming machine
Q:why choose our product?
A: Our products have good quality, durable, domestic and foreign customers trust and reputation Our products have good quality, durable, domestic and foreign customers trust and reputation
Q: What is the warranty time of Factory Price Cnc Wire Bender?
A: 1-2 years
Q: What is the payment term?
A:50% depost T/T, balance pay against copy of B/L, if CIF or CFR.
50% depost T/T, balance pay off when we finish the production.
Q:how to choose a suitable product?
A:Please tell our professor service team about youyr detailed requirement and using effect,we will recommend you our best suitable product.
Q:what should I tell you anything about product?
A:In order to provide you with the most suiltable for your product ,please provide your requirments to our professional service team
Strong export package. Fast delivery time for 2d cnc wire forming machine
Welcome to inquiry and order !
