| process diameter : | |
|---|---|
| Control system : | |
| wire-feeding accuracy : | |
| wire-feeding speed : | |
| Certificate : | |
ZD-2D-308
Greatcity
8463300000

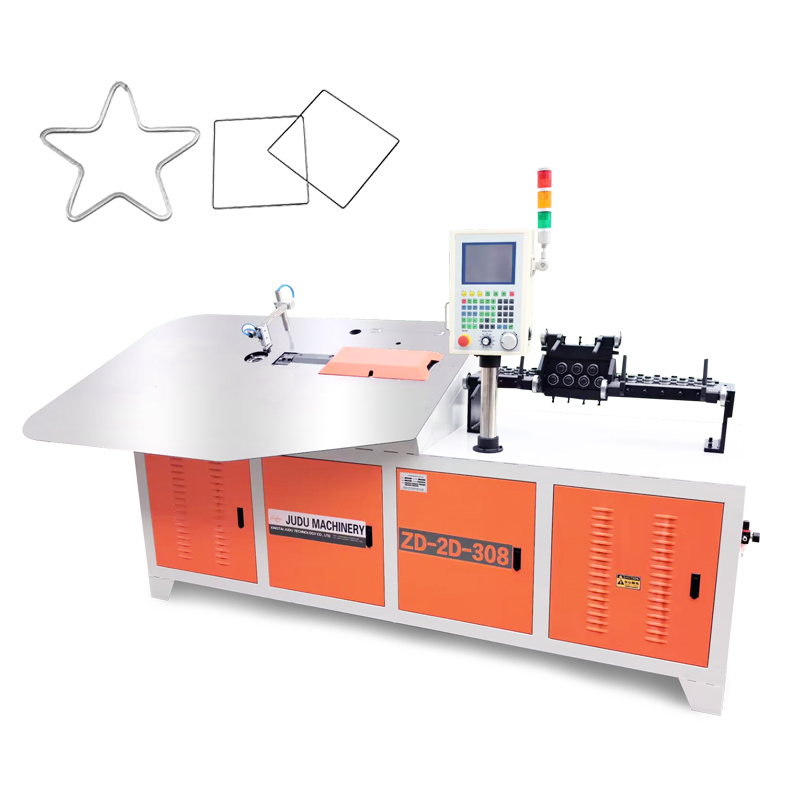

Multi-language Operation Automatic 2d Wire Forming Machine for 3-8mm Steel Wire Bending
Advantages & Feature of automatic 2d wire forming machine From China:
Our 2D wire bending machine advantages:
1. our 2d wire bending machine is more stable, the 2D wire bending machine and 3D wire bending machine head structure is the same
2. The head uses bearings, the wire bending machine can be used for 10-20 years, other factories use copper sleeves.
3. We guarantee the quality of the machine
4. Our machine is powerful
5. Our machine precision is very good, 0.1mm
6. Our machine is very delicate
7. The motors of other factories do not have reducer, and the motors of our machines all have reducer, which make the motors more durable
Automatic 2d wire forming machine Application field :
1)Auto Industry area
2)Metal wire industry
3)Display table and cargo shelf
4)Furniture and Kitchen
5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft
ZD-2d-308 model automatic 2d wire forming machine technical parameters:
Model | ZD-2D-308 |
Axis | 3 axis |
Applicable Wire diameter | 2—6.5mm hard wire.3-7mm soft wire |
wire-feeding wheel | 3-4 groups |
applicable wire | Round wire,flat bar, square wire (any material) |
Copy | 10000 datas,300 acts as a group |
Feeding speed max. | 100(m/min) |
Wire-feeding axis servo motor with reducer | 2.9kw |
Cutting axis servo motor with reducer | 1.0kw |
Angle-bending axis servo motor with reducer | 1.8kw |
Process | Lifting up and down for internal and outernal die Two-way bending |
Feeding accuracy | ±0.1mm |
Max. Bending speed | 800rpm/min,angle±180º |
Production capacity | 20-24 pieces/min,(200*200mm ,square) |
Operation system | 32 betain in Chinese and English (upload and download) |
voltage | 380V,50HZ,3 Phases or customized |
weight | 750kgs |
dimension | 3000×950×1500mm (each servo motor is with one reducer |

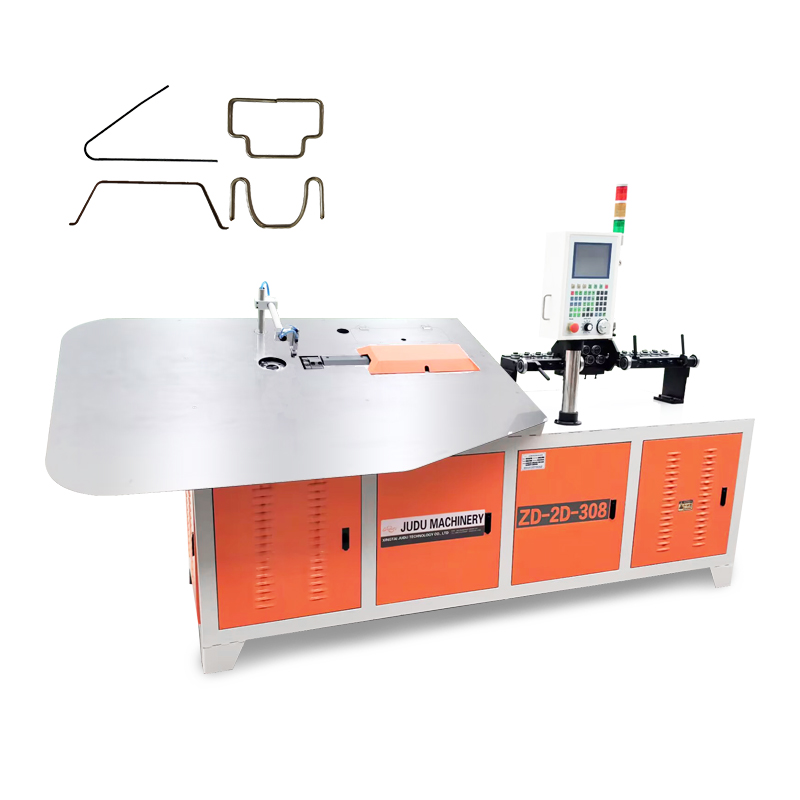

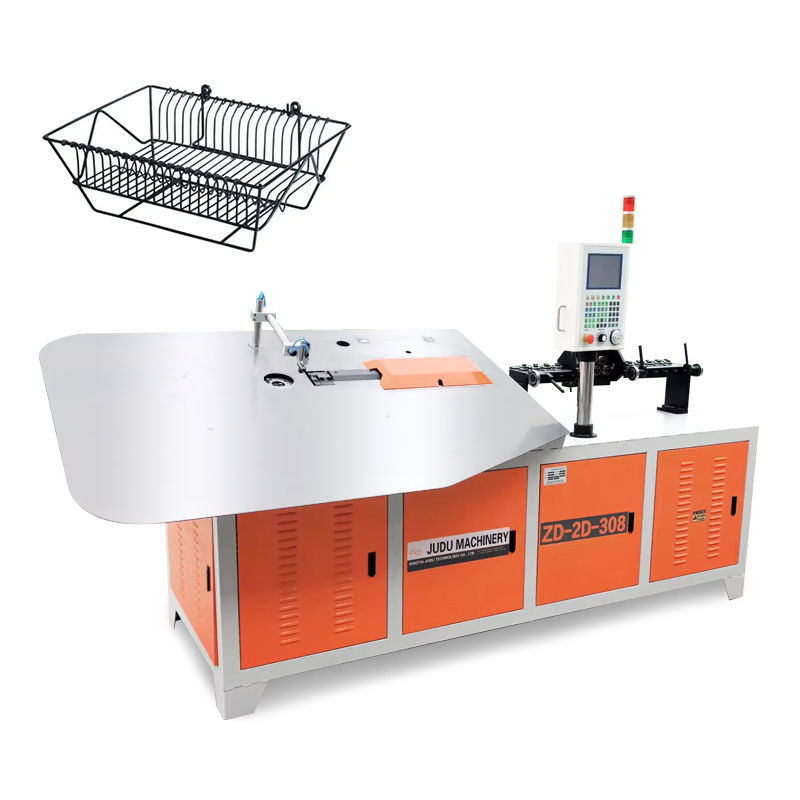

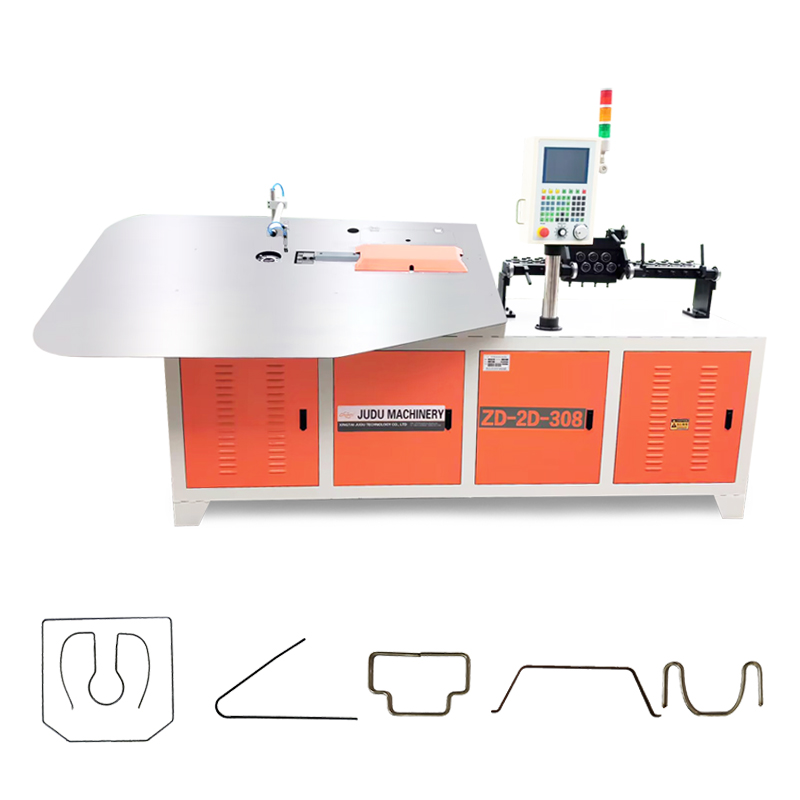

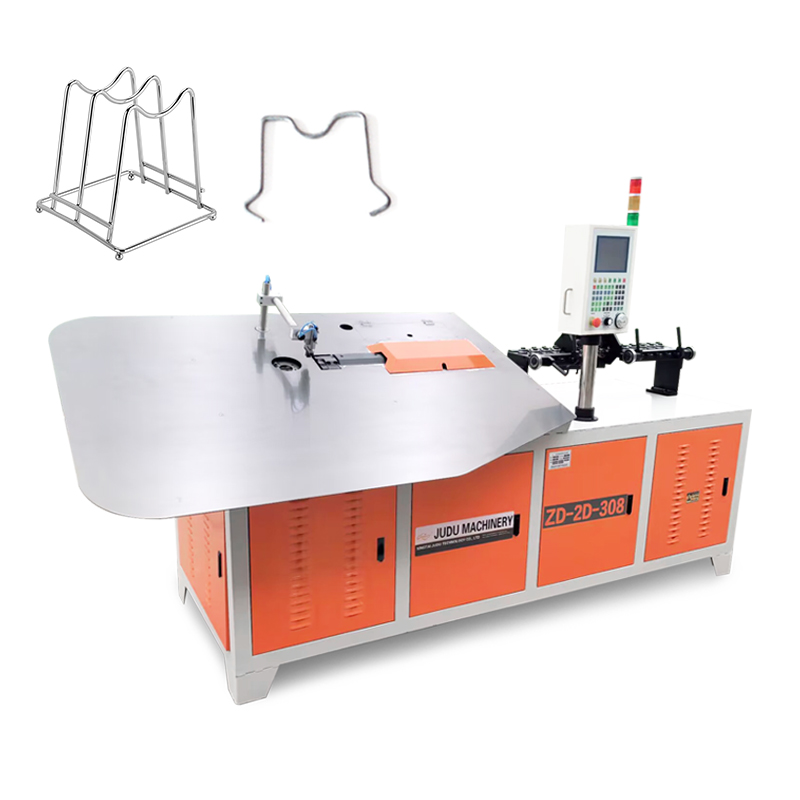

ZD-2d-308 model automatic 2d wire forming machine detailed show:
Customer positive feedback
Company Profile
Factory pictures
Our services of cnc 2d wire forming machine:
1. Help you choose the most suitable 2d wire bending machine .
2. Making the machine according to your request.
3. Give you machines details for help you use the machine more better.
4. 1 years warranty
5. Provide overseas on-site machine maintenance guidance and after-sales service.
FAQ of 2d cnc wire forming machine :
what is 2d wire bending machine Packaging?
Free fumigation safe Wood case package with iron pallet
what is MOQ
1set can be acceptable for trail order.
Over 3 sets can have wholesale price. Welcome to join us as our sales agent in your market.
can we do OEM and ODM?
Can changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4. what is your warranty?
Warranty 1 years
5.what time for delivery?
5-7 days for our own design.(motor:380v 50hz 3phases)
10-15 days for cusmoized model.
6.How to make the payment for automatic 2d wire forming machine ?
TT, 40-50% in advance as deposit ,balanced paid off when the machine is finished and tested well with your requested workpiece before shippment.
The packing for automatic 2d wire forming machine :
Any questions or requirements for Multi-language Operation Automatic 2d Wire Forming Machine for 3-8mm Steel Wire Bending ,welcome to contact me at any time
We are a Chinese manufacturer specializing in the production of Automatic 2d Wire Forming Machine for 3-8mm Steel Wire Bending , with many years of industry experience. We have our own independent research and development design team and production team, as well as a complete after-sales service system. We can provide customized services according to your needs. If you are interested in our products, please feel free to contact us at any time.
