ZP28-65
GREATCITY
8463200000

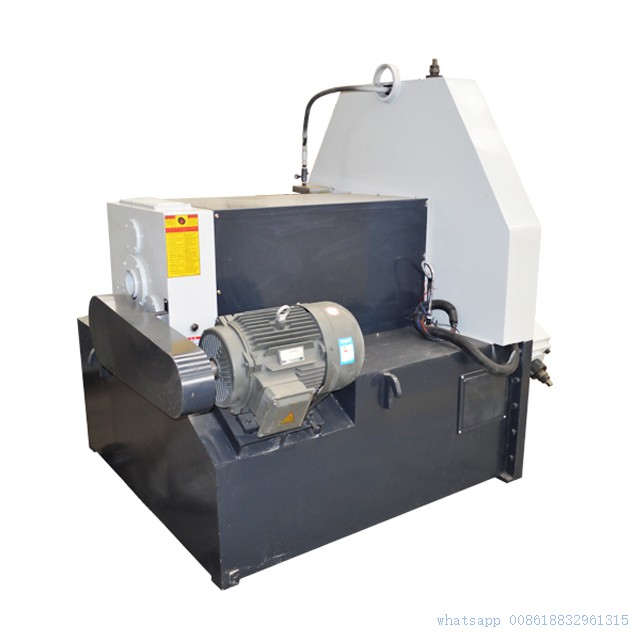

Popular ZP28-65 Model Automatic Three Rollers Thread Rolling Machine CE
ZP28-65 model three rollers thread rolling machine is a multifunctional cold extrusion rolling thread machine, the hollow and solid workpiece in the cold rolling pressure range can be made to straight lines, twill, spur, helical and bevel gear spline rolling; straightening, necking, rolling light and various rolling forming. The machine has safe and reliable electric liquid control system and implementation, which can make each work cycle in manual, semi-automatic and automatic selection in three ways.
The cold rolling is an advanced non cutting process, which can effectively improve the internal and surface quality of workpiece, the radial compressive stress produced during processing, and can significantly improve the fatigue strength and torsion strength of the workpiece. It is an ideal process with high efficiency, energy saving and low consumption.
This model three rollers thread rolling machine detailed show:
Model | ZP28-65 |
Rolling motor | 11kw |
Rolling wheel diameter | 125-160mm |
Processing scope | 22-90mm |
Rolling pitch | 0.5mm |
Speed | 0-50r/min |
Machine weight | 3000kg |
Machine size | 1900*1700*1850mm |
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps scaffolding thread rolling machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping for three rollers thread rolling machine
2. FCL, we get the container and do container loading by our skillful workers carefully.
3.Forwarders, we have professional and longterm cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
