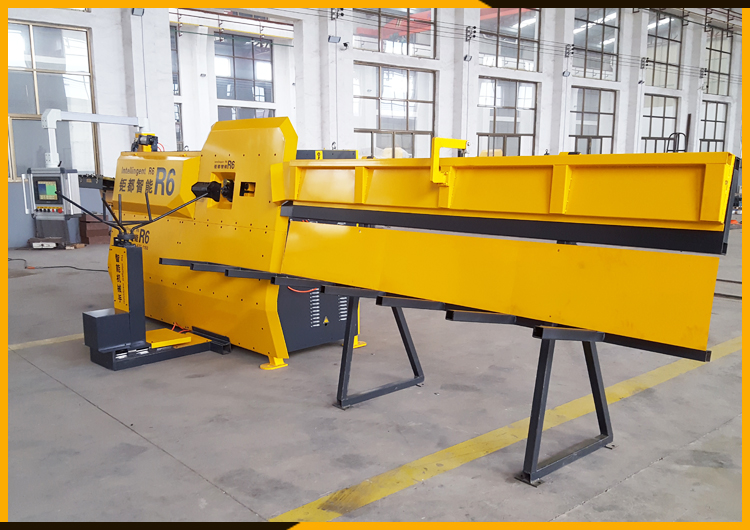

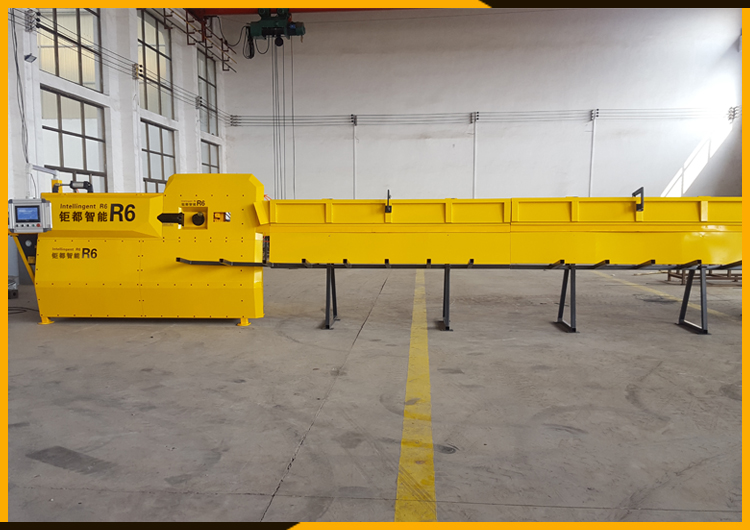

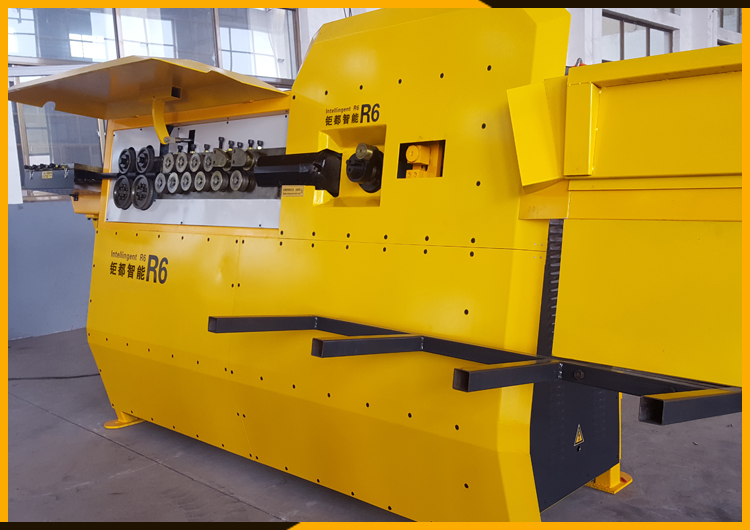

R6 Greatcity 10mm Automatic Stirrup Bending Machine with Long Platform
Advantages of steel bar stirrup bending machine
1,Possibility to work diameters from 5 to 10mm.
2,Micro-controller CNC with PC to visualize graphically the data and sketch of the programmed stirrup. Control fitted for the connection to a LAN company net.
3,Bi-directional feeding and bending, with speed electronically changing.
4,Bending pins in accordance with international law for wires from 5 to 13m.
5,Special feeding and bending group designed by our company in order to avoid wire-rotation and supply flat stirrups.
6,Max feeding speed 100 mt/min, max bending-speed 1100°/sec.
7,Possibility of double stranding up to 8mm diameter or the wire.
8,Straightening with mechanic-memory in order to choose the preselectable diameters by CNC.
9,Possibility to use a picker on require.
| Model | R6 steel bar stirrup bending machine |
| Single bar diameter | 4-10mm |
| Double bar diameter | 4-8mm |
| Speed | 1800-2000pcs / min |
| Total power | 21kw |
| Voltage | 3 phase 380v / 220v / 50hz |
| Weight | 2000kg |
| Dimension | 3300*1000*1980kg |
Fished workpiece of stirrup bending machine

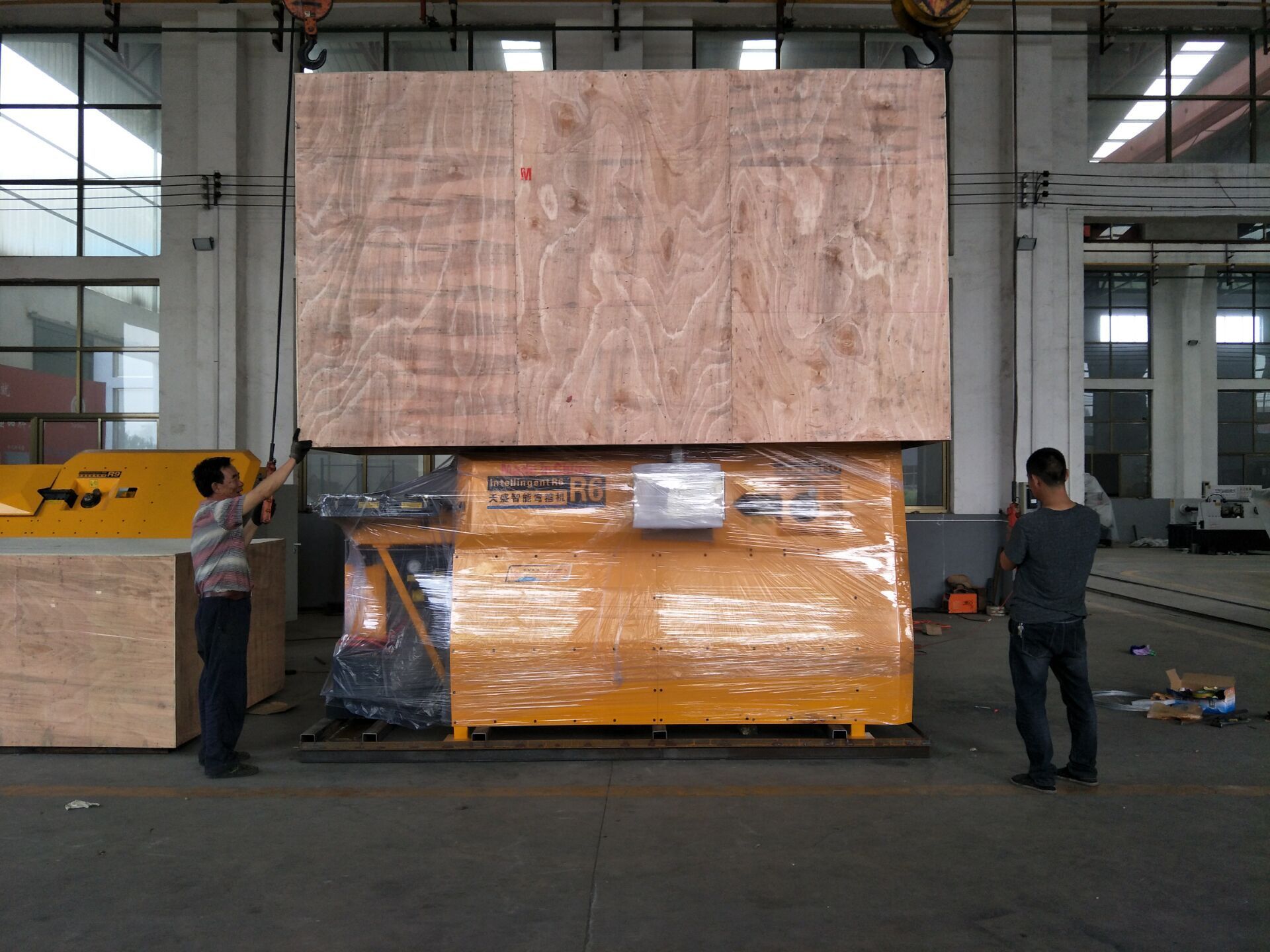

We use strong export package with iron grame in the bottom.
We have cooperate agent, will arrange shippment smoothly.
12months Quality warranty period (after put into operation formally).
Provide technical guide for dust collector forever.
After Quality Warranty period, will provide the spare parts with cost price.
All the machines provided by our factory will be tested before ship.
♦ABOUT US
We Manufacture, service and supply of a complete range of rebar & wire machinery for the Reinforcing industry.
"One Stop" stirrup bending machine Tools Manufacturer
Our main products: CNC wire bending Machine. CNC Rebar Bending Center. CNC Stirrup Bending machine . Thread rolling machine. bar diameter reducing machine
♦10 YEARS EXPERIENCE
Our company is a state high-tech enterprise, our rebar processing machinery are used in hundreds of infrastructure projects both at home and abroad.
♦PROVIDE ONE-STOP SERVICE
Greatcity machnery has a professional and international experienced after service team. They all have more than 5 years’ experience of oversea technical support
'Greatcity' trademark has been identified as an unique brand name product that got the honorary title among many.
Within more than 20 years of development besides struggles, GreatCity is still keeping up its effort to maintain a brilliant business success in whole over the world due to its hardworking, courage and the will to improve its creation for customer satisfaction and maintain the reputation to be the best Chinese machinery manufacturer.
1. What is the materials using for steel bar stirrup bending machine?
Round steel and thread steel;
2. What is the max bending diameter?
Max bending diameter is 10mm;
3. Can you make the english language or other language of the CNC control system for the customers?
Yes. Of course. We can make different language for the cnc control. Just tell us which language you need;
4. Can you change the machine's color for the customers?
Yes. We can make the color as what you want;
5. What is the delivery time?
If we have machines in stock, delivery time is 2-3 days. If we don't have the stock. The delivery time is 7days;
