Square Stirrup Bending Machine
This square stirrup bending machine maker use Panasonic control system with touchscreen, could automatically accomplish processing of feeding, straighten, bending and cutting on rebars.
Max bending diameter of rebar is 10mm,widely used in construction industry and rebar manufacturing enterprise;
ITEM | F10 square stirrup bending machine |
Single wire process | 5-10mm |
Double wire process | 5-8mm |
Bending angle | 180 degree |
centre diameter of pin holes |
16 18 20 |
Max. Towing speed |
120m/min |
Max. Bending speed |
1000°sec |
Length accuracy |
±2mm |
Angular accuracy |
±2° |
Average power |
8kw/h |
Processing number |
≤2 |
Equipment Powder |
25kw |
Steel processing shapes |
500 kinds of shapes |
Gas circuit voltage |
0.6mpa |
Work condition temperature |
-5°—/+40° |
Dimensions |
3200*1200*2000mm |
Total weight |
1300kg |
Finished stirrups for construction use

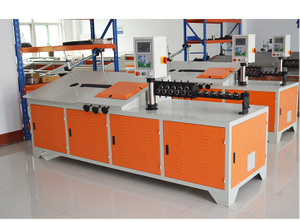

F10 type square stirrup bending machine
Packaging : standard export wooden case packing. you can by sea or air. We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.
Delivery time: 7 days after receiving the deposit.
