| process diameter : | |
|---|---|
| Control system : | |
| wire-feeding accuracy : | |
| wire-feeding speed : | |
| Certificate : | |
ZD-2D-308
greatcity
8463300000

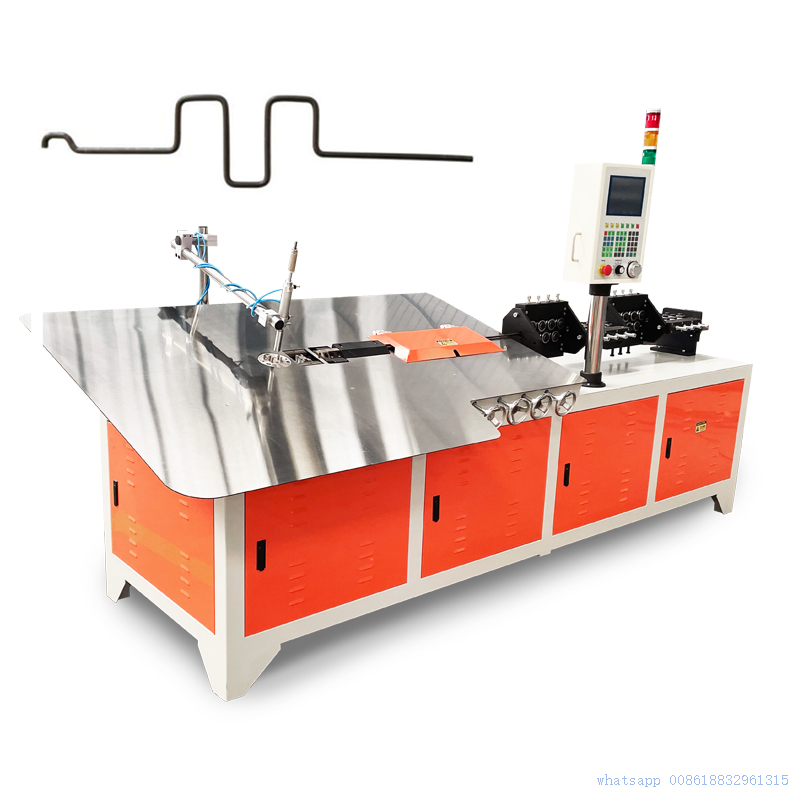

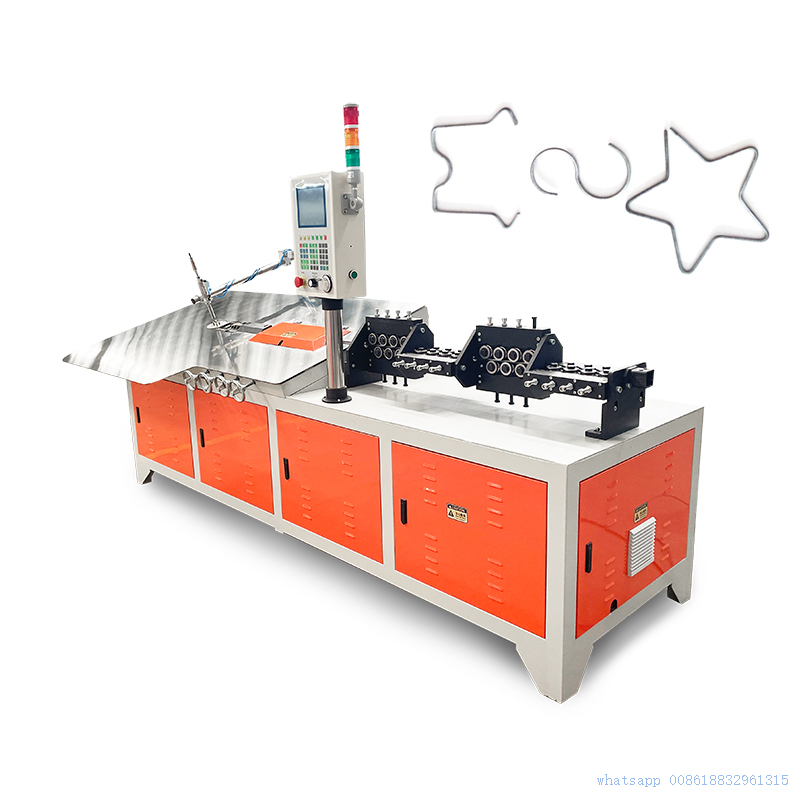

XINGTAI JUDU SPECIAL PRICE Practical ZD-2D-308 Model Automatic Cnc 2d Wire Forming Machine
Advantages & Feature of cnc 2d wire forming machine From China:
1. The error of full servo motor is smaller, the bending efficiency is higher, and the error is smaller than that of similar products of hydraulic press.
2. CNC operation is simpler and easier to learn than the same type of PLC products. Generally, the simple program can be edited by oneself within half an hour with elementary school education.
3. Because all the servo motors are used, there will be no hydraulic failure, the failure rate is lower, the scrubbing is more convenient, and the pollution caused by oil pollution will not occur.
cnc 2d wire forming machine Application field :
1)Auto Industry area
2)Metal wire industry
3)Display table and cargo shelf
4)Furniture and Kitchen
5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft
and so on
ZD-2d-308 model cnc 2d wire forming machine technical parameters:
Model | ZD-2D-308 |
Axis | 3 or 4 axis or 5 axis |
Wire diameter | 2—6.5mm hard wire.3-8mm soft wire |
wire-feeding wheel | 3-4 groups |
applicable wire | Round wire,flat bar, square wire (any material) |
Copy | 10000 datas,300 acts as a group |
Feeding speed max. | 94.2(m/min) |
Wire-feeding axis servo motor with reducer | 3.8kw |
Cutting axis servo motor with reducer | 2.0kw |
Angle-bending axis servo motor with reducer | 3.8kw |
Process | Lifting up and down for internal and outernal die Two-way bending( the internal and outernal mold also can be rotated . |
Feeding accuracy | ±0.1mm |
Max. Bending speed | 800rpm/min,angle±180º |
Production capacity | 20-24 pieces/min,(200*200mm ,square) |
Operation system | 32 betain in Chinese and English (upload and download) |
voltage | 380V,50HZ,3 Phases or customized |
weight | 750kgs |
dimension | 3000×1200×1600mm (each servo motor is with one reducer |

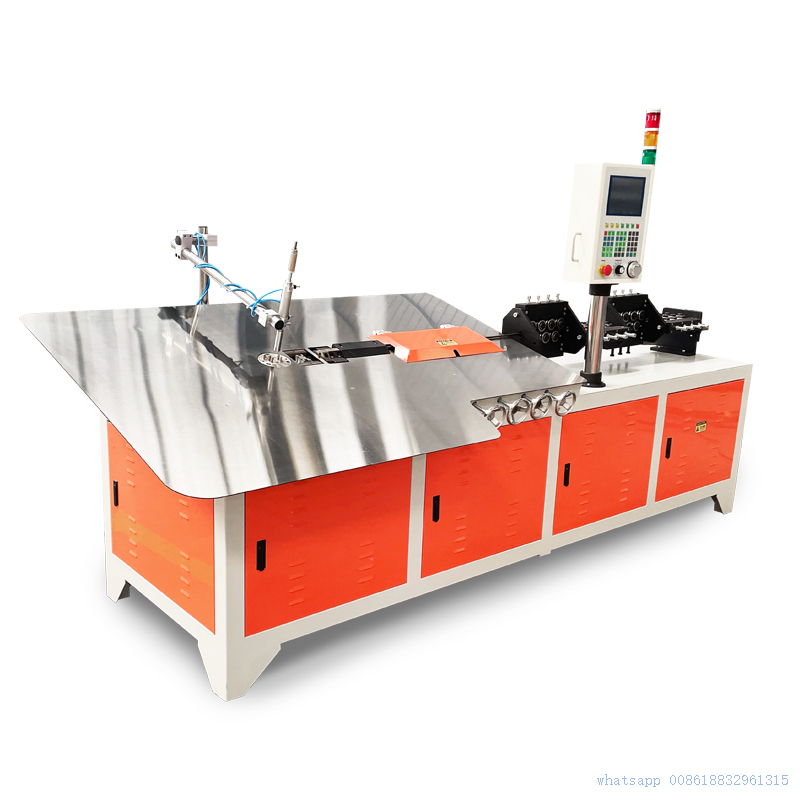

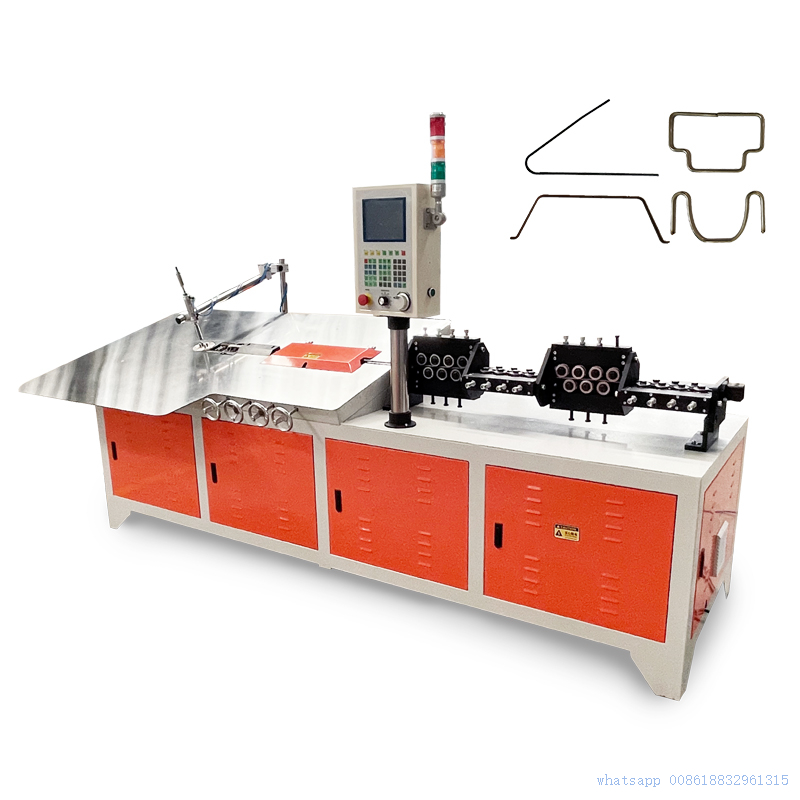

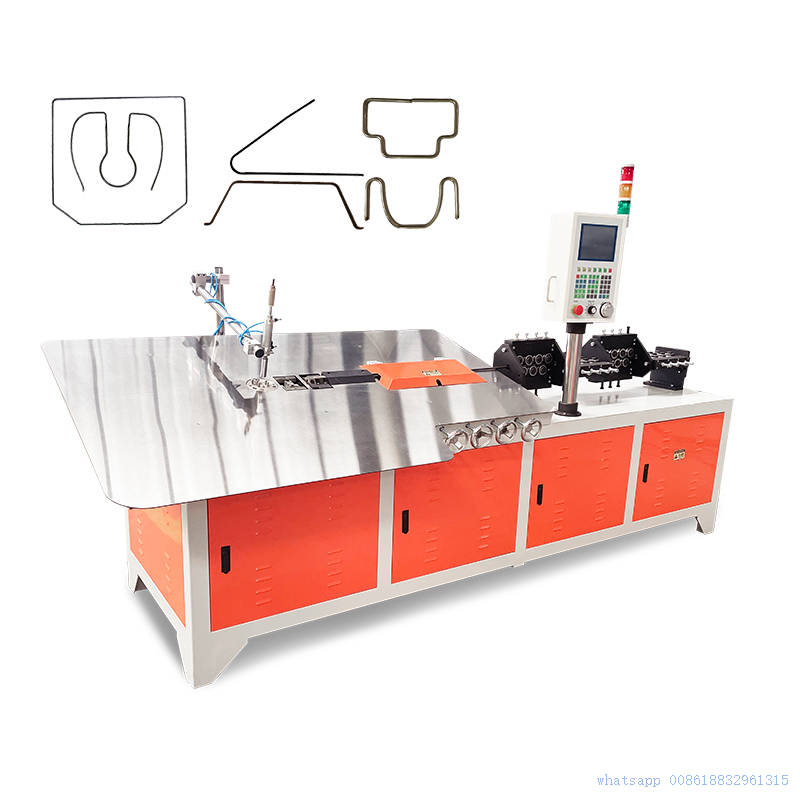

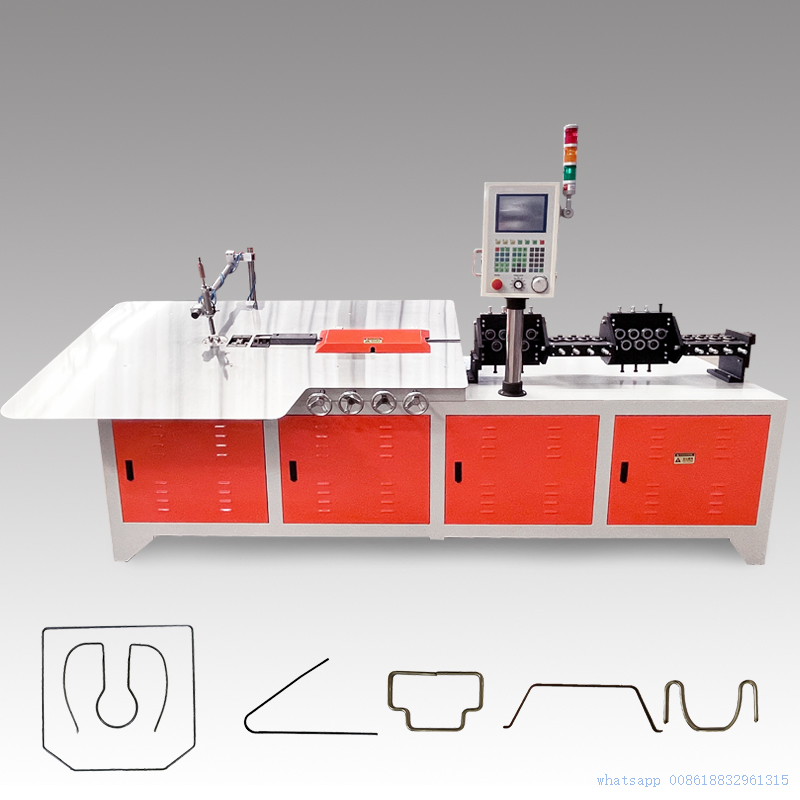

ZD-2d-308 model cnc 2d wire forming machine detailed show:
Our services of cnc 2d wire forming machine
1. Help you choose the most suitable 2d wire bending machine .
2. Making the machine according to your request.
3. Give you machines details for help you use the machine more better.
4. 2 years warranty
5. Free repair whole using life without extra charge.
FAQ of cnc 2d wire forming machine
what is 2d wire bending machine Packaging?
Free fumigation safe Wood case with iron pallet
what is MOQ?
1set can be acceptable for trail order.
Over 1 sets can have wholesale price. Welcome to join us as our sales agent in your market.
can we do OEM and ODM?
Can changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4. what is your warranty?
Warranty 1 years
5.what time for delivery?
5-7 days for our own design.(motor:380v 50hz 3phases)
10-15 days for cusmoized model.
6.How to make the payment?
TT, 40-50% in advance as deposit ,balanced paid off when the machine is finished and tested well with your requested workpiece before shippment.

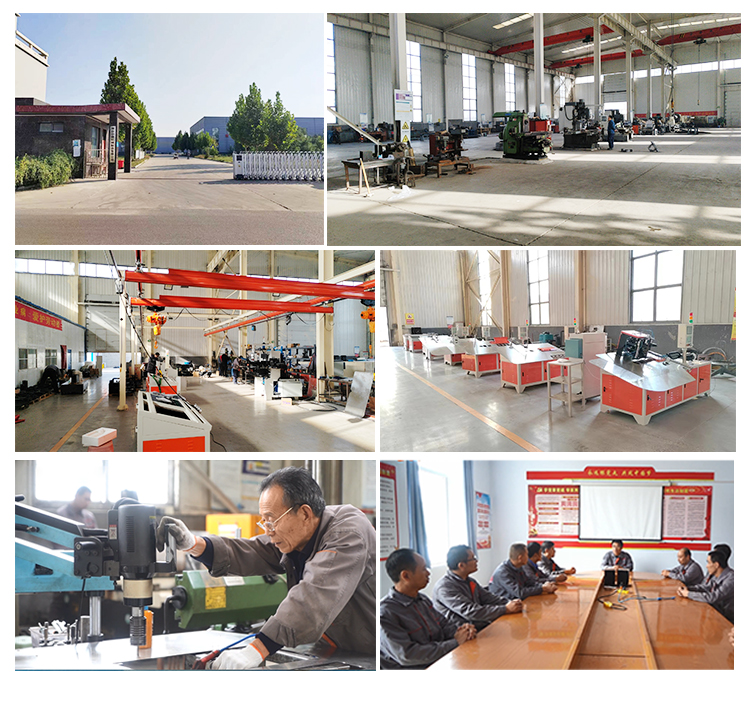

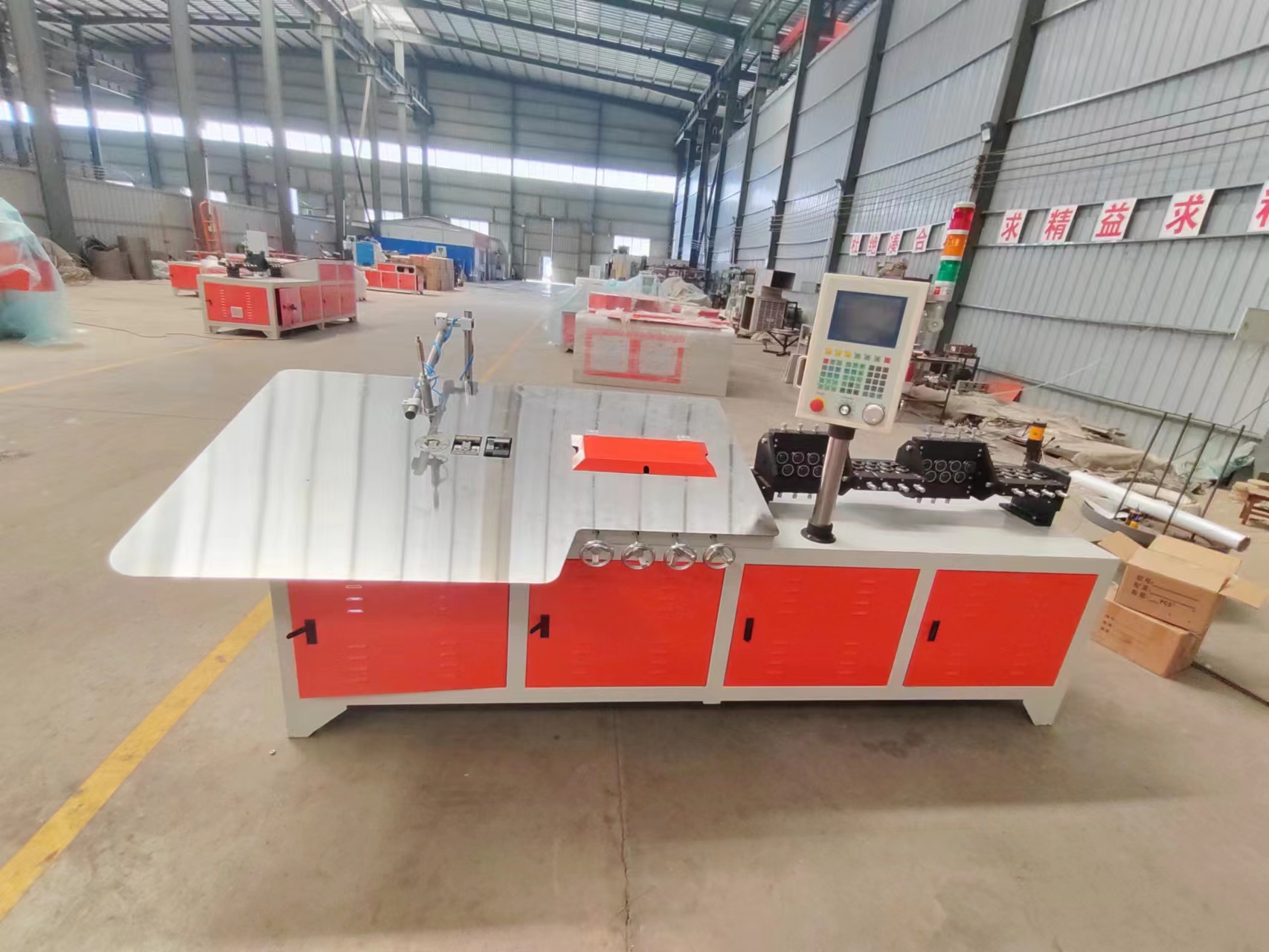

Our factory show for cnc 2d wire forming machine:
