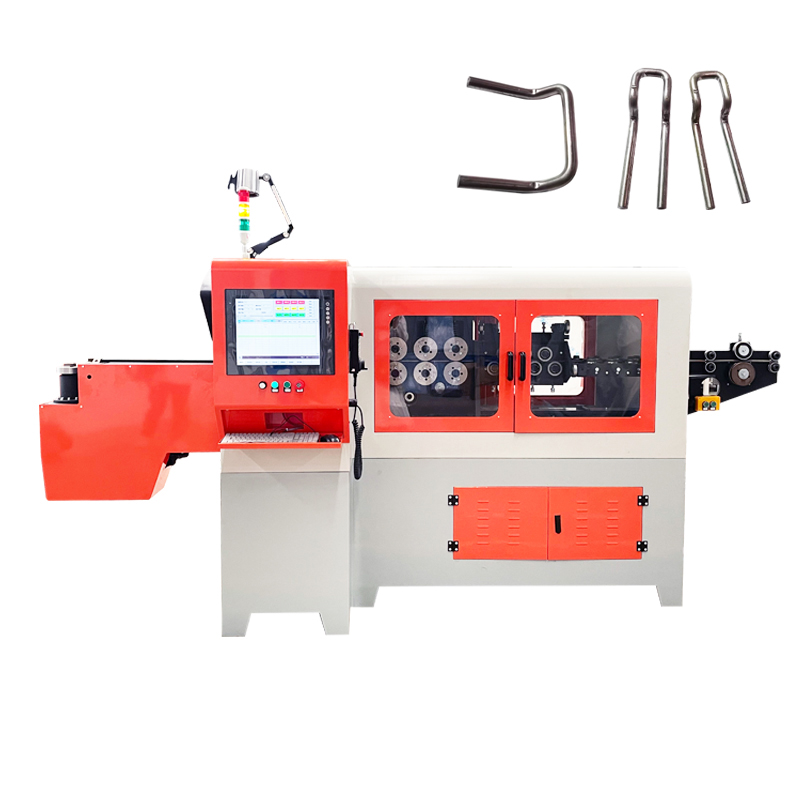

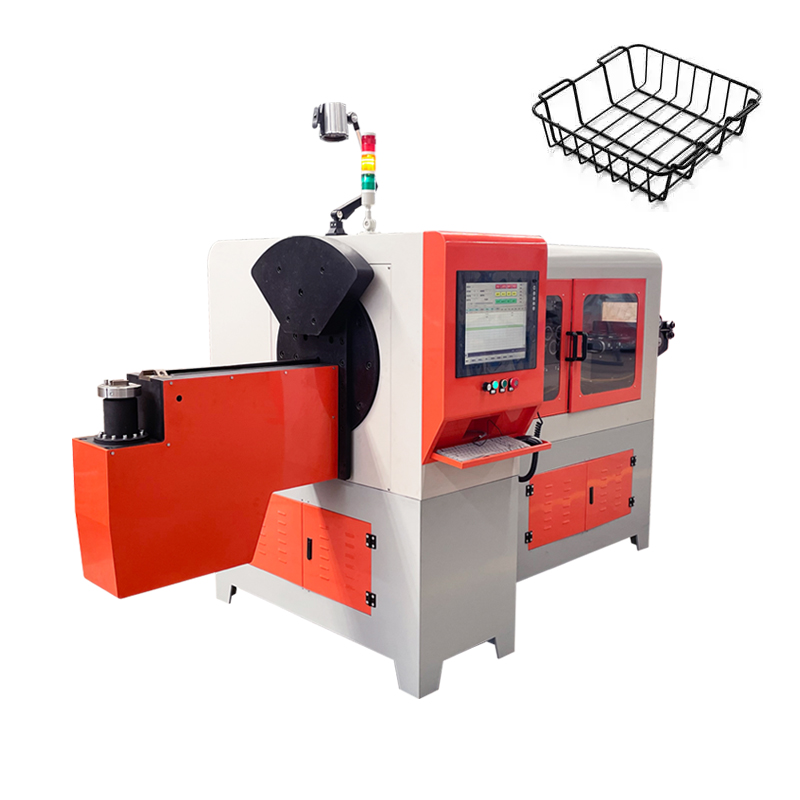

Automatic CNC Program 3d Wire Bending Machine Producer

Automatic CNC Program 3d Wire Bending Machine Producer This model is mainly for the kitchen&bath accessories, supermarket appliance, automotive sun visor skeleton, car door lock rod, designed for a variety of wire forming, with full processing capacity and high processing speed and accuracy.
bending dia range:
2-10mm
raw material
metal steel wire
Extra Services
cut to length
certificate
CE
brand
greatcity
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • ZD-3D-410

  • greatcity

  • 8463300000

3d wire bending machine producer cnc 3d wire bending machine automatic 3d wire bending machine
Product Description

            Automatic CNC Program 3d Wire Bending Machine Producer



The 3d Wire Bending Machine Producer adopts 3D bending to complete the hook and the radian of iron wire, the wire diameter is 8 mm, the length of wire 680 mm.The 3d wire bendingmachine can complete automatic wire feeding, automatic bending, automatic cutting, automatic discharging, only need to put the wire coil onto the wire feeder.


The 3d Wire Bending Machine Producer can realize the automatic moving and automatic reverse of the product. It can improve the efficiency and reduce the production cost. Besides, the problem of unstable quality and low production efficiency caused by pure manual operation has been solved.


Technical parameter of 3d Wire Bending Machine Producer


Wire Diameter
Wire 2-8
Wire 3-12
Feeding Wheel Number
6
6
Feeding Shaft Servo Motor Power
3.5KW
4.5KW
Rotating Shaft Servo Motor Power
2.7KW
4.5KW
Cutter Shaft Servo Motor Power
1.0KW
2.0KW
Feeding and Retreating Shaft Servo Motor Power
1.0KW
2.0KW
Angular shaft servo motor power
2.0KW
4.5KW
Machine Weight
2800KW
3800KW
Output Power
380V
380V
Dimension
3310mmX2000mmX1900mm
3510mmX2500mmX1900mm


The detailed photos of 3d Wire Bending Machine Producer

3D4010_013D4010_043D4010_05

3D4010_083D4010_10


The finished products of 3d Wire Bending Machine Producer

3D4010_07


Working process of 3d Wire Bending Machine Producer

1) Put the wire coil onto the fixture manually
2) Put the wire coil in the wire feeding wheel and clamp it
3) Wire feeding wheel wire will made the wire coil straightening and delivery to the forming mechanism according to the procedures set
4) Forming mechanism rising and bent thread into a hook
5) Wire feeding wheel continue to send wire to the radian bending position
6) Forming mechanism bent the wire into a radian according to the procedures set
7) Turn head down
8) Wire feeding wheel continue to delivery
9) The cutter cut the wire according to the procedures setting

10) The equipment work in cycle.

详情通用_04详情通用_05详情通用_06详情通用_07详情通用_08详情通用_10

Certificate of 3d Wire Bending Machine Producer

详情通用_09


Packing and shipping of 3d Wire Bending Machine Producer

详情通用_11



Any questions or requirements for 2d or 3d Wire Bending Machine Producer,welcome to contact me at any time
