ZD-2D-4010
Greatcity
8462219000

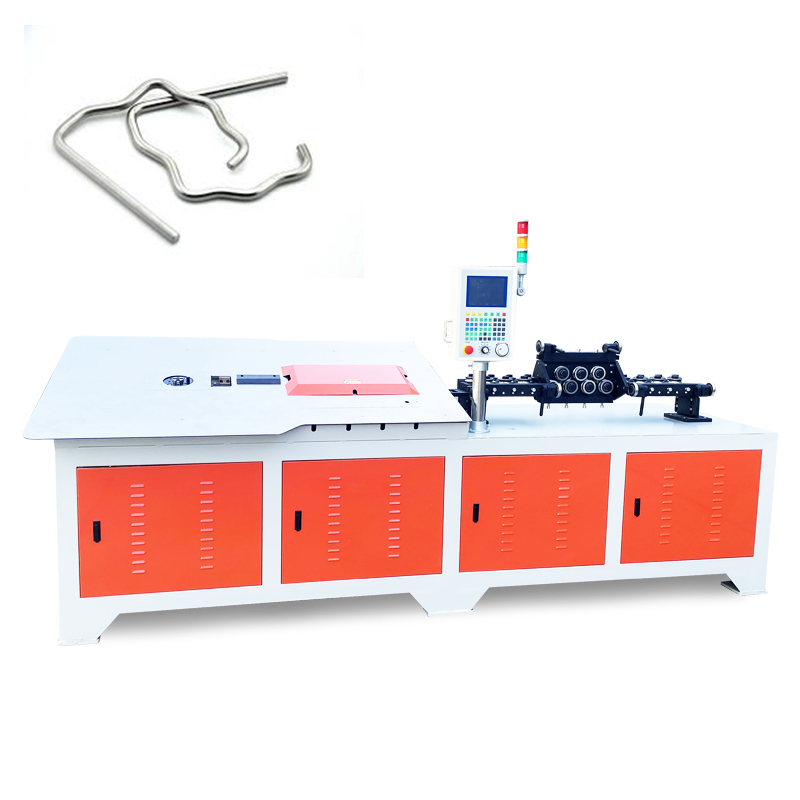

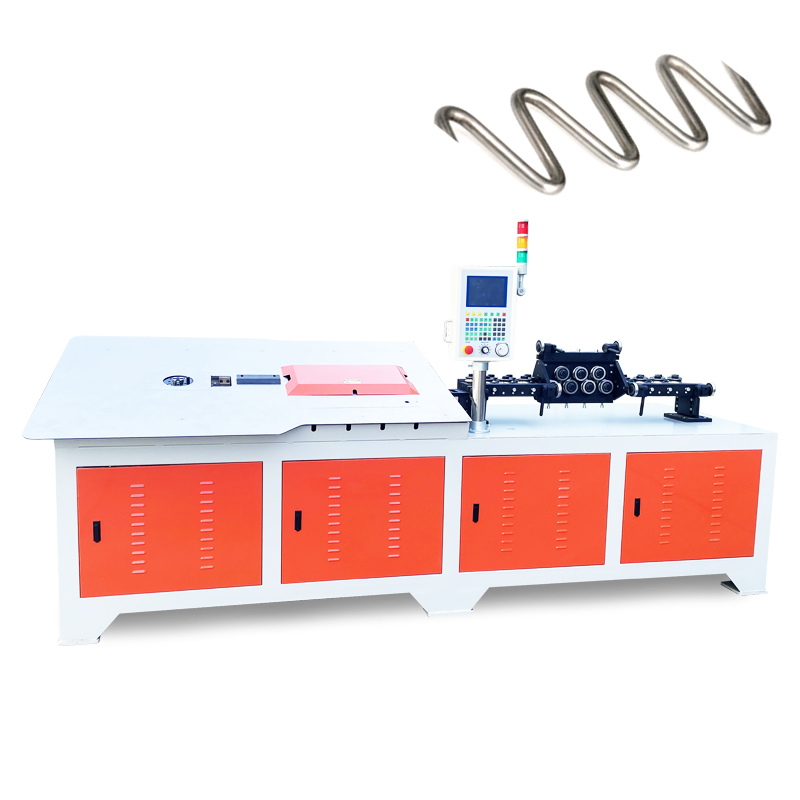

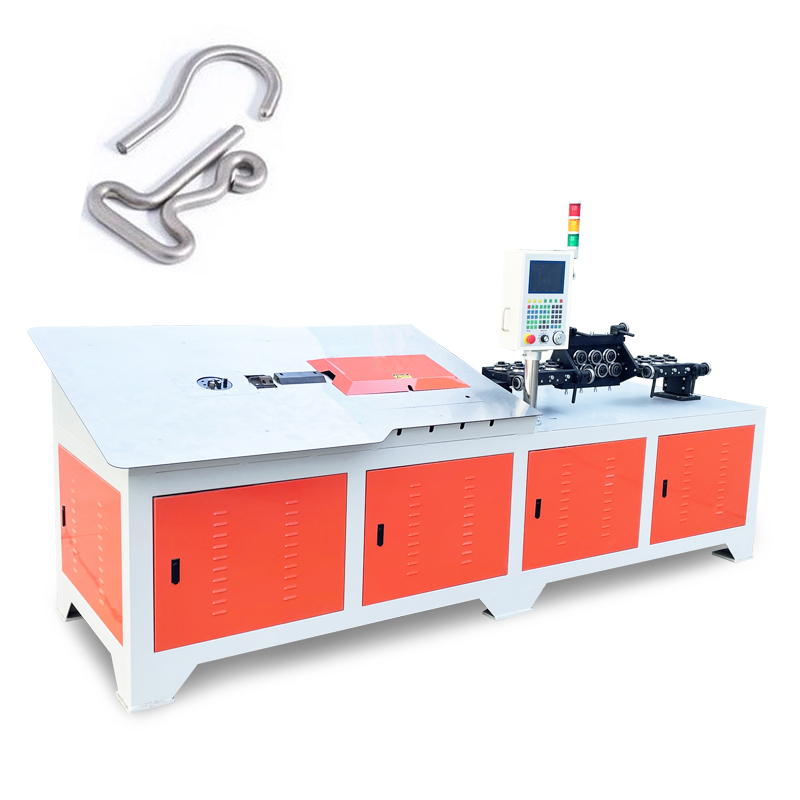

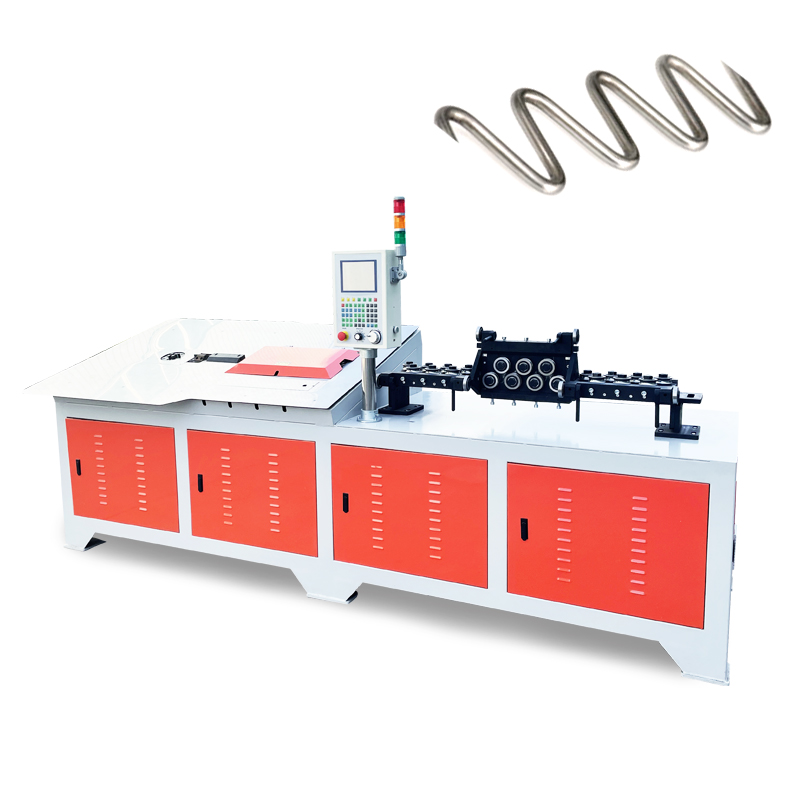

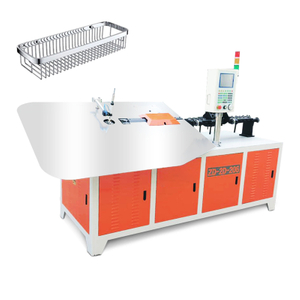

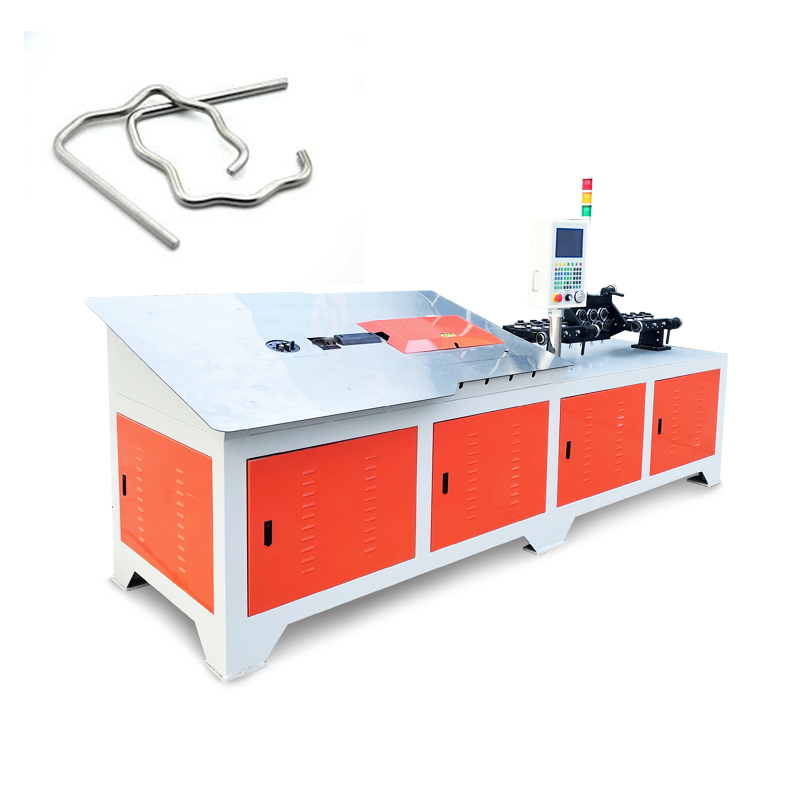

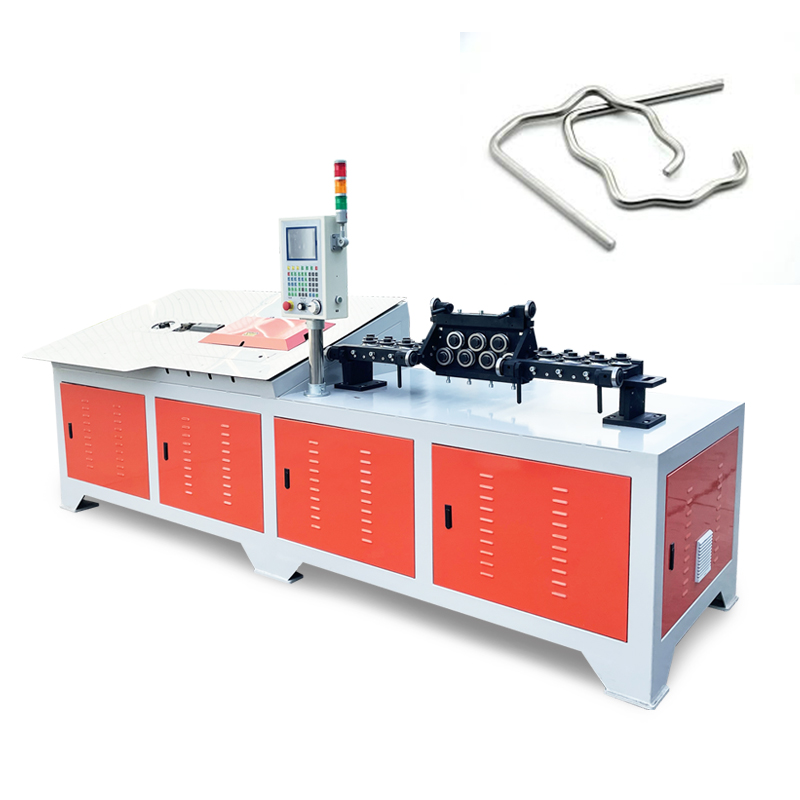

Cnc Wire Bending Forming Machine Automatic Steel Wire Bending Machine 10mm
Cnc Wire Bending Forming Machine Automatic Steel Wire Bending Machine 10mm
Our 2d wire forming machine is to produce kinds of 2D wire forms expertly with high precision and fast speed. Adopts brand servo motor and screen display with top controller.
Advantages & Feature:
1. The error of full servo motor is smaller, the bending efficiency is higher, and the error is smaller than that of similar products of hydraulic press.
2. CNC operation is simpler and easier to learn than the same type of PLC products. Generally, the simple program can be edited by oneself within half an hour with elementary school education.
3. Because all the servo motors are used, there will be no hydraulic failure, the failure rate is lower, the scrubbing is more convenient, and the pollution caused by oil pollution will not occur.
Cnc Wire Bending Forming Machine Automatic Steel Wire Bending Machine 10mm Application field :
1)Auto Industry area
2)Metal wire industry
3)Display table and cargo shelf
4)Furniture and Kitchen
5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft
Cnc Wire Bending Forming Machine Automatic Steel Wire Bending Machine 10mm Technical Parameter:
Model | ZD-2D-4010 |
Axis | 3 |
Wire diameter | 4-10mm iron wire |
wire-feeding wheel | 3 |
applicable wire | Round wire (any material) |
Copy | 10000 datas,300 acts as a group |
Feeding speed max. | 100(m/min) |
Wire-feeding axis servo motor | 4.5kw |
Cutting axis servo motor | 2.0kw |
Angle-bending axis servo motor | 3.0kw |
Process | Lifting up and down for internal and outernal die Two-way bending |
Feeding accuracy | ±0.1mm |
Max. Bending speed | 800rpm/min,angle±180º |
Production capacity | 20-24 pieces/min,(200*200mm ,square) |
voltage | 380V,50HZ/60HZ,3 Phases |
weight | 1500kg |
dimension | 3250×1150×1500 |
Customer positive feedback
Company Profile
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ of 2D Cnc Wire Bending Forming Machine
Q:why choose our product?
A: Our products have good quality, durable, domestic and foreign customers trust and reputation Our products have good quality, durable, domestic and foreign customers trust and reputation
Q: What is the warranty time of Cnc Wire Bending Machine - Straight Cut To Length Wire?
A: 3-5 years
Q: What is the payment term?
A:30% depost T/T, balance pay against copy of B/L, if CIF or CFR.
50% depost T/T, balance pay off when we finish the production.
Q:how to choose a suitable product?
A:Please tell our professor service team about youyr detailed requirement and using effect,we will recommend you our best suitable product.
Q:what should I tell you anything about product?
A:In order to provide you with the most suiltable for your product ,please provide your requirments to our professional service team
Strong export package. Fast delivery time.
Welcome to inquiry and order !
Xingtai Judu Technology Co.,Ltd
We are a Chinese manufacturer specializing in the production of 2d wire forming machine , with many years of industry experience. We have our own independent research and development design team and production team, as well as a complete after-sales service system. We can provide customized services according to your needs. If you are interested in our products, please feel free to contact us at any time.
