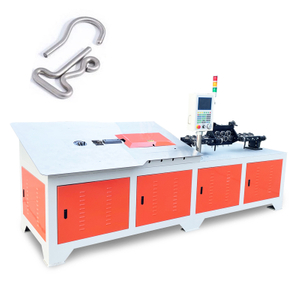

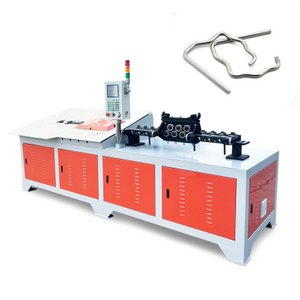

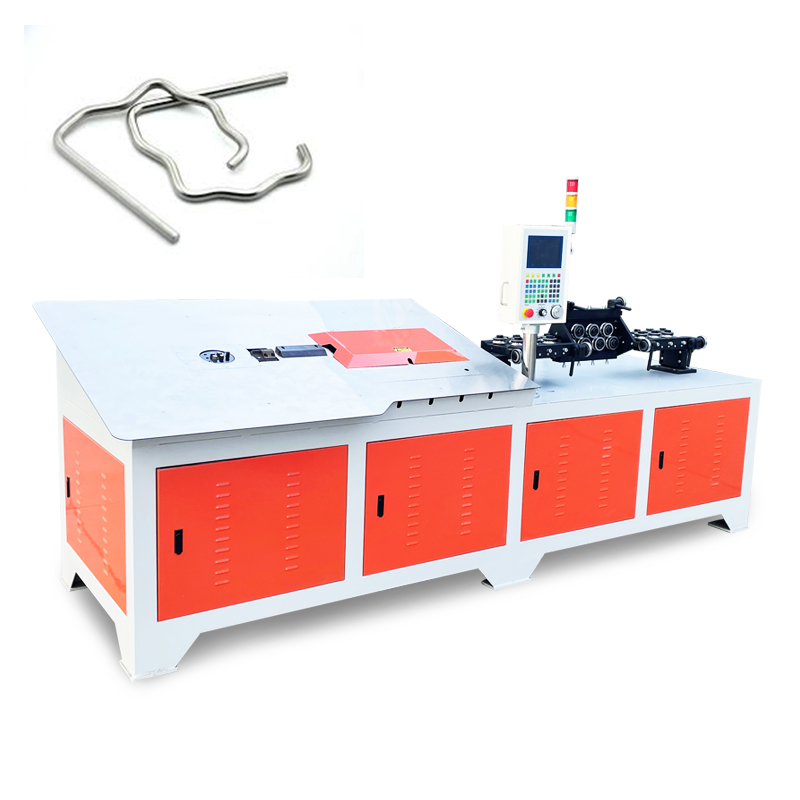

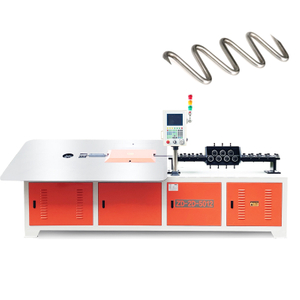

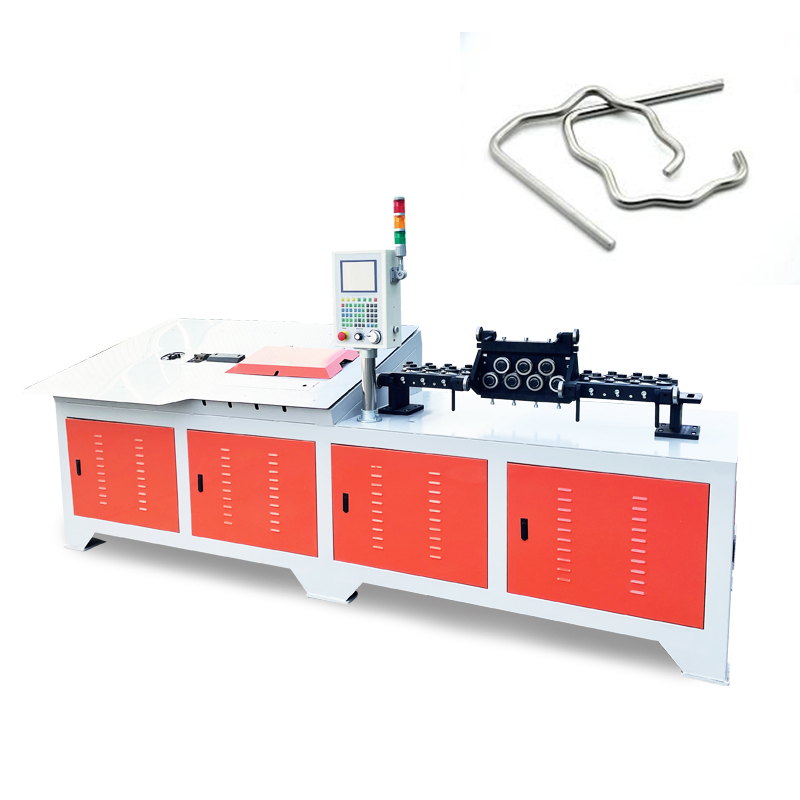

Factory Direct Whole 2D CNC Wire Bending Machine Price

Our 2D wire bending machine advantages:
1. our 2d wire bending machine is more stable, the 2D wire bending machine and 3D wire bending machine head structure is the same
2. The head uses bearings, the wire bending machine can be used for 10-20 years, other factories use copper sleeves.
3. We guarantee the quality of the machine
4. Our machine is powerful
5. Our machine precision is very good, 0.1mm
6. Our machine is very delicate
7. The motors of other factories do not have reducer, and the motors of our machines all have reducer, which make the motors more durable
Place Original:
China
Warranty:
18 months
Power:
3.7kw
Rolling dia range:
max 10mm
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • ZD-2D-4010

  • Greatcity

  • 8462219000

wire bending machine cnc wire bending machine 2d wire bending machine price
Product Description


Factory Direct Whole  2D CNC Wire Bending Machine Price

Overview

2D wire bending machine Features:


1.Servo drive, Stable performance;

2.High precision, no noise; 2D CNC rebar bender and stainless wire bending machine

 3.Easy to operate,adopt special microcomputer control,intelligent forming,high efficiency,save electricity;

4.Automatic straightening, wire feeding, forming, cutting and record number;

5.Wire feeding wheels, straightening wheels, forming wheels adopt the German high quality alloy, after vacuum heat treatment ,the high abrasion resistance and long service life;

6.Suitable for forming Various 2D shapes for all kinds of metal ( such as steel, iron, stainless steel and aluminum wire, etc. )


2D wire bending machine Technical Parameter:



Model
ZD-2D-4010
Wire size(mm)
4-10mm
Axis
3
wire turning angle
180 .
Feeding servo motor
4.5kw
Bending servo motor
3.0kw
Cutting servo motor
2.0kw
Total Power
9.5kw
Bending accuracy
+/-0.1mm
Feeding accuracy
+/-0.1mm
Feeding speed
100 mtrs/min
machine size(mm)
3250*1150*1500


Detailed Images

2D4010_012D4010_042D4010_052D4010_06

Customer positive feedback

详情通用_03

Company Profile


详情通用_04详情通用_05详情通用_06

工厂图片2

Services

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

详情通用_07详情通用_08详情通用_09详情通用_10

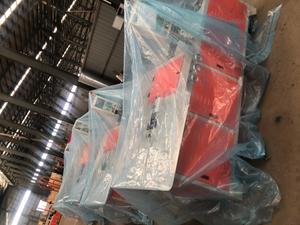

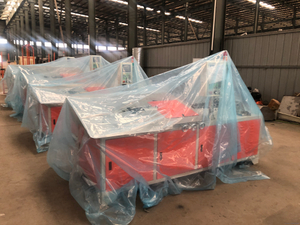

Pacakge & Delivery

Strong export package. Fast delivery time.

Welcome to inquiry and order !

详情通用_11详情通用_12详情通用_13

We are a Chinese manufacturer specializing in the production of 2d wire forming machine , with many years of industry experience. We have our own independent research and development design team and production team, as well as a complete after-sales service system. We can provide customized services according to your needs. If you are interested in our products, please feel free to contact us at any time.
