R8
greatcity
8462229000

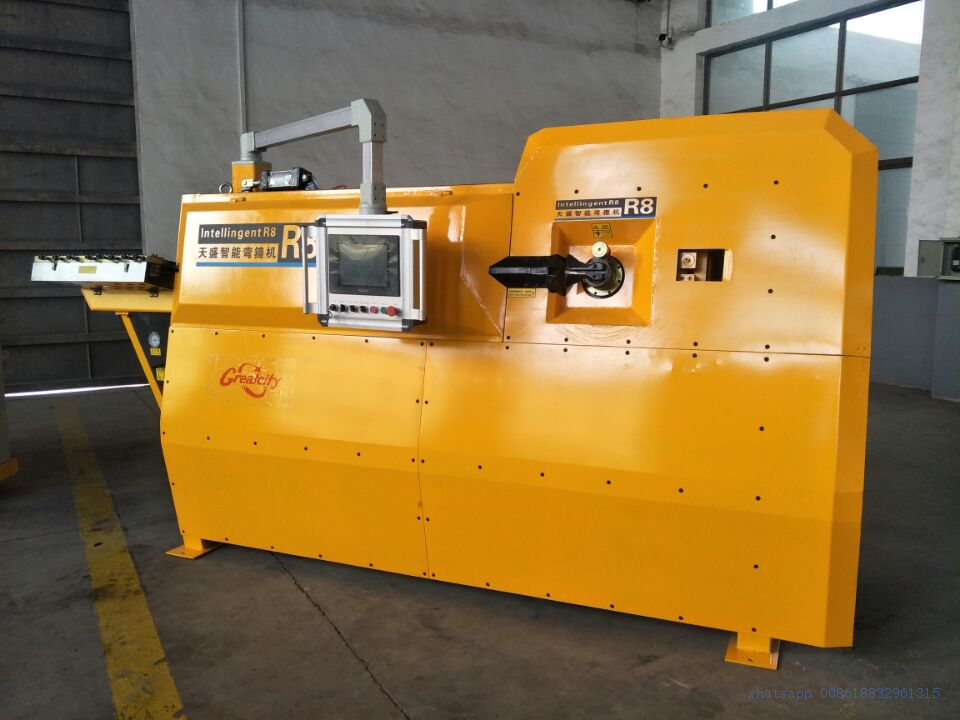

High Speed R8 Model 5-12mm 2d Stirrup Bender Automatic Cnc Stirrup Bending Machine on sale
| Model | R8 cnc stirrup bending machine |
| Single bending diameter | 5-12mm mainly |
| Double bending diameter | 4-10mm |
| Bending feature | two way bending direction |
| Total power | 32kw |
| Voltage | 3 phase 380v 50HZ or customized |
| Weight | 2000kg |
| Dimension | 3710*1510*2310mm |
Advantages of cnc stirrup bending machine
1.The traction pressing amount is numerical controlled by the diameter of the steel wire, and the bending action is detected by electronic,make operation and work simpler and more stable.
2.With Double-position bending axis setting&optional multiple molds, it can bend various stirrups from 100mm to 1380mm.
3.Great cost saving:mechanical cutting, only need to replace the wear blade regularly, no other vulnerable parts. More durable cutting blade of high-quality die steel.
4.Corrosion wear resistance& long service life: special heat treatment process to harden the surface to HRC55~60.
The finished products from cnc stirrup bending machine
Material is long straight ribbed bar. for make square and rectangle etc
Also can make long bar hook, then the machine should be add the long platform

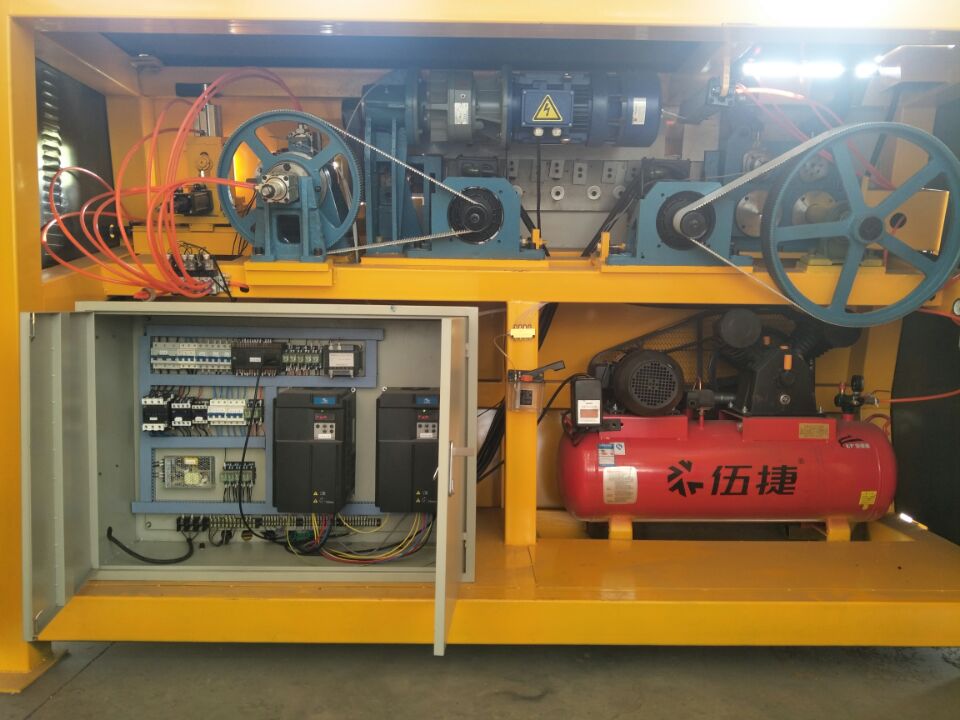

The back detailed photo of cnc stirrup bending machine
The feeding straightening wheels photo of cnc rebar stirrup bending machine
The cnc stirrup bending machine with auto collector
This is 2-2.5 tons pay off for cnc stirrup bending machine for rebar process
Why to choose greatcity cnc stirrup bending machine?
1.High power feeding Servo Motor's To Ensure Straightening, Bending & Cutting Accuracy.
2.larg storage Capacity can save 500 Processing Geometric Designs, High Degree Automation.
3.Siemens Touchable Screen & Panasonic PLC.
4.Production Capacity 280-320 Tons 10 Hours 2 shift Per Day/ 26 Days a month.
5.Different shapes can be processed continuously without stop, furthermore no need to stop
the processing while adjusting the bending angle.
Customers visit cnc stirrup bending machine factory
Strong package of cnc stirrup bending machine is standard export wooden package
The shipping way include rail ,ship and truck etc.
cnc stirrup bending machine related products
1. wire ring bending machine
2. automatic 2d wire bending machine
3. automatic bucket hook bending machine
4. Automatic thread rolling machine
XINGTAI JUDU TECHNOLOGY CO.,LTD Weclome to inquiry and order our greatcity cnc stirrup bending machine! |
