F10
greatcity

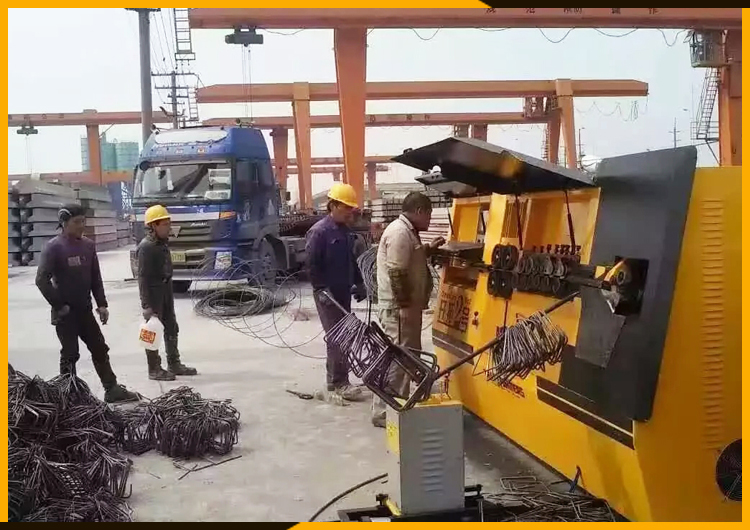

Wire Stirrup Bending Machine
The device adopts CNC servo control system, which can automatically finish the steps of steel straightening, length measuring, bending hoop, cutting and so on. It can bend 14MM steel bar with maximum diameter and continuously produce any product with any plane shape. It is widely used in construction industry, large steel processing plant Other fields.
This wire stirrup bending machine has been improved several times since its production to better meet the actual production needs of steel processing.
Features of wire stirrup bending machine
1. Integrated automatic wire feeding structure with high accuracy
2. CNC control system, high precision, small error
3. Synchronous belt conveyor, low failure rate, low maintenance costs
4. Bidirectional bending function, Can bending variety of shaped pieces
5. Has a large storage space, can process nearly 500 different specifications of the workpiece
6. Double roller synchronous wire feeding device, into the wire simple, easy to operate, easy to learn
7. Engineering slope design, chaos silk, straightening efficiency
ITEM | F10 wire stirrup bending machine |
Single wire process | 5-10mm |
Double wire process | 5-8mm |
Bending angle | 180 degree |
centre diameter of pin holes |
16 18 20 |
Max. Towing speed |
120m/min |
Max. Bending speed |
1000°sec |
Length accuracy |
±2mm |
Angular accuracy |
±2° |
Average power |
8kw/h |
Processing number |
≤2 |
Equipment Powder |
25kw |
Steel processing shapes |
500 kinds of shapes |
Gas circuit voltage |
0.6mpa |
Work condition temperature |
-5°—/+40° |
Dimensions |
3200*1200*2000mm |
Total weight |
1300kg |
CE Certificate High Performance CNC Smooth Bar Or Deformed wire stirrup bending machine
Packaging : standard export wooden case packing. you can by sea or air. We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him ASAP.
Delivery time: 7 days after receiving the deposit.
CNC Smooth Bar Or Deformed wire stirrup bending machine:
1. Integration automatic feed high precision wire structure.
2. CNC control system, high precision, small error.
3. The belt conveying means, failure rate, low maintenance cost.
4. With two-way bend function, process a variety of shaped pieces.
5. With large storage, can be processed nearly 500 different size artifacts.
6. Double roller sync wire feed unit, wire feed is simple easy to operate, easy to learn.
7. Works bevel design, not random wire straightening high efficiency.
Xingtai Judu Technology Co.,Ltd
greatcity brand
Ms Kitty
whatsapp; 008615512868421
