ZX-3D-308
Greatcity
8463300000

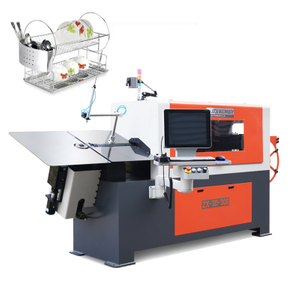

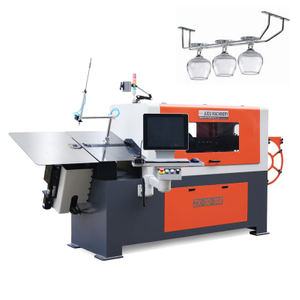

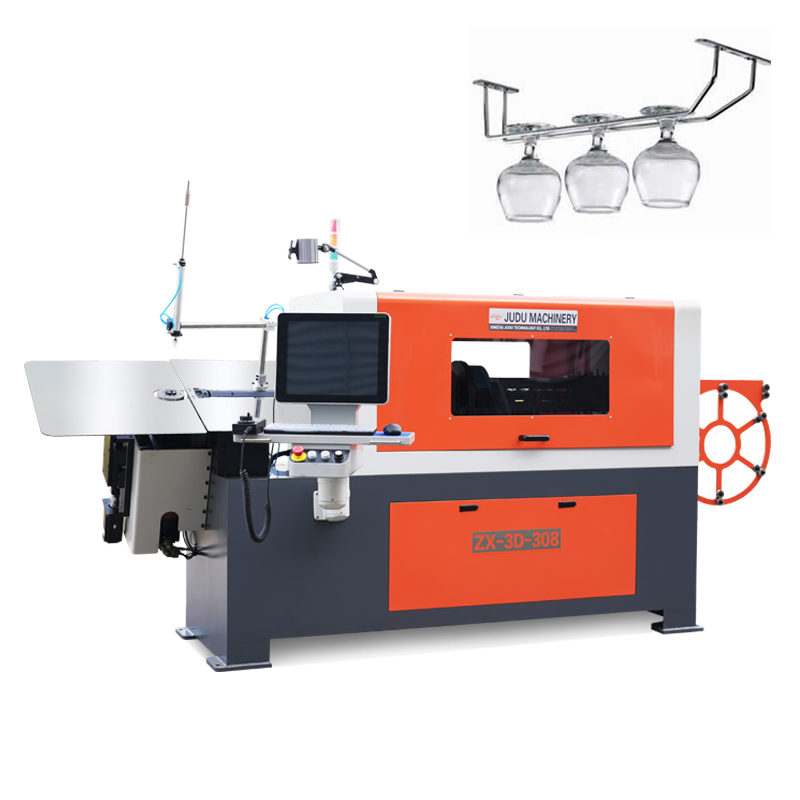

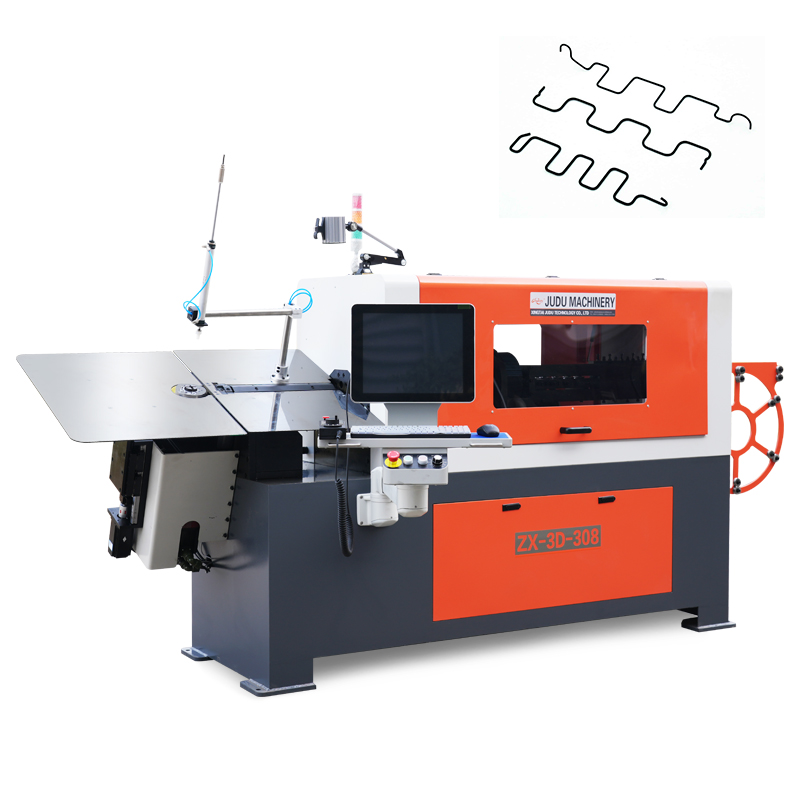

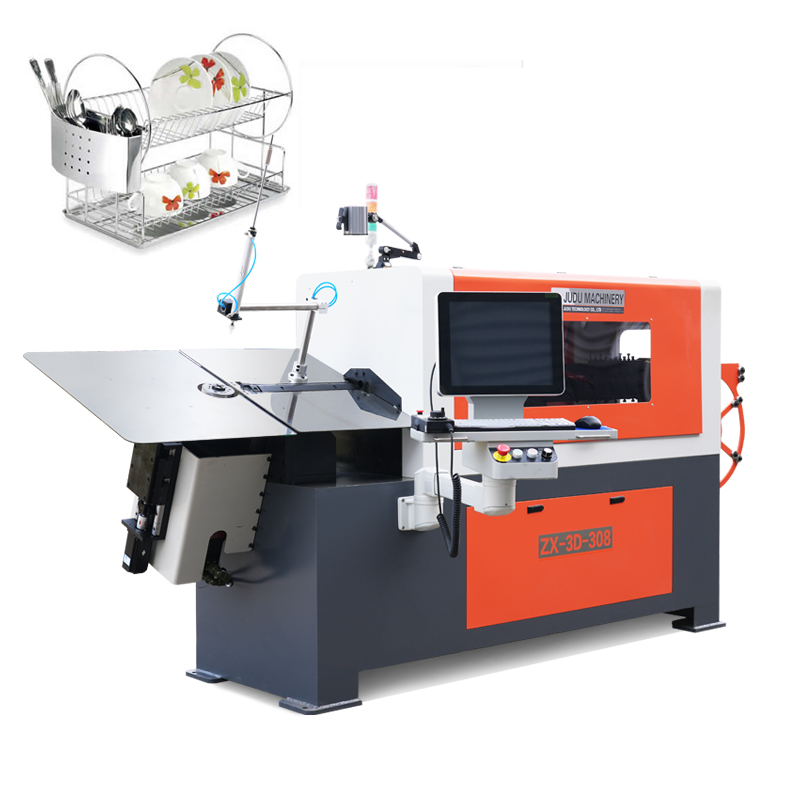

3-8mm High Accuracy 7axis 3D Wire Bending Forming Machine Automatic Wire Bending Machine
The ZX-3D-308 wire bending machine is suitable for 3-8mm round and flat wire and iron wire. The wire bending machine adopts servo motors and CNC control system, and can store 10000 workpieces. It has functions such as wire feeding, wire turning, bending, cutting, platform lifting, inner and outer mold lifting, and inner and outer mold rotation, and is easy to operate and handle. The 3D wire forming machine is equipped with a Taiwan Faston helical gear reducer, which has high precision and durability. The important components such as bearings and gears are all imported parts, with a one-year warranty. The equipment is durable and reliable, with quality assurance, and can meet customers' needs for high standard wire forming production. At the same time, all machines come with operation manuals when they leave the factory. We have a complete after-sales service system, and our company provides on-site guidance, installation, debugging, and teaching services, or remote video training. The 3D wire bending machine comes with operation manuals that can also be read and operated by oneself.
3D wire bending machine main technical parameters and configurations:
Model | ZX-3D-308 model 3d wire bending machine |
Number of shaft | 7 |
Diameter of the steel wire(mm) | Hard material:Φ2.0 ~Φ 6.0 Soft material :Φ2.0 ~ Φ8.0 |
Number of wire feeder | 2 suits |
Wire rotation angle | 360 degrees unlimited number of turns |
Applicable wire | Round wire, flat wire, square wire (applicable to any wire material) |
Data storage | 10000 data, 300 data as a group |
Maximum wire feed speed | 100m/min |
Wire Feeding servo motor power | 4.4kw |
Bending servo motor power | 2.4kw |
cutting servo motor | 1.0kw |
Swing wire motor | 2.9kw |
Platform lifting motor power | 1.0kw |
internal mold rotary Servo motor power | 1.8kw |
liftingh up and down for internal mold and outernal mold | 1.0kw |
| working platform moving servo motor | 1.0kw |
Action direction | Both the inner and outer molds can be raised and lowered, and the positive and negative bending |
Feeding accuracy | ±0.1 |
Internal mold angle rotation | ±180° |
Input power | 380V,3phase 50HZ/60HZ or customized |
linear slide rail ,power switch | Taiwan brand |
Controller system | industrial wire forming system(Yaqi) |
| System Language | Chinese/English(with upload and download functions) |
| Computer system | Yaqi(with upload and download functions) |
| machine based material | A3 sheet metal |
| WIre-feeding wheel,cutting blade ,bending die, wire passing die | hardened and heat treatment |
| bending dies, wire passing die | Ø 3, ø 4, ø 5, ø 6, ø 7, ø 8 are each equipped with one according to the model |
Machine weight | 2000kg |
Machine size | 3900(L)*1200(W)*1700mm(H) |

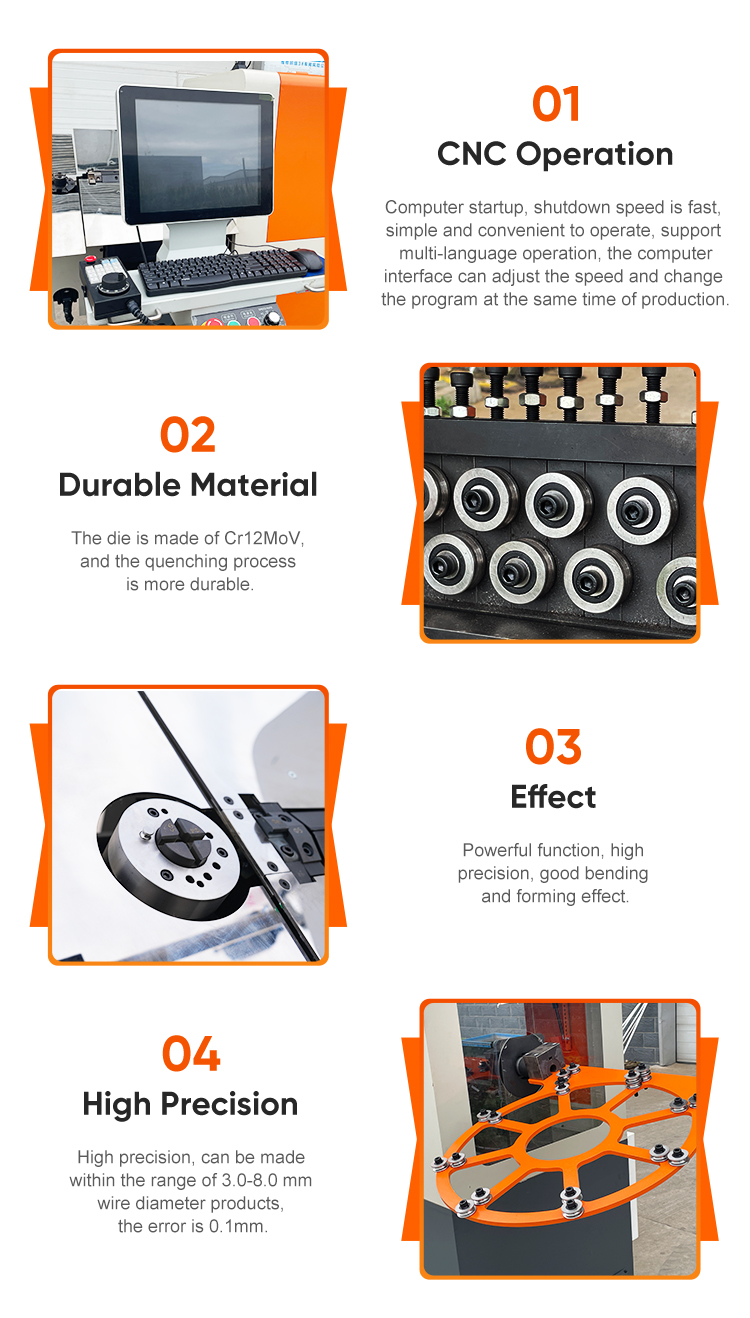

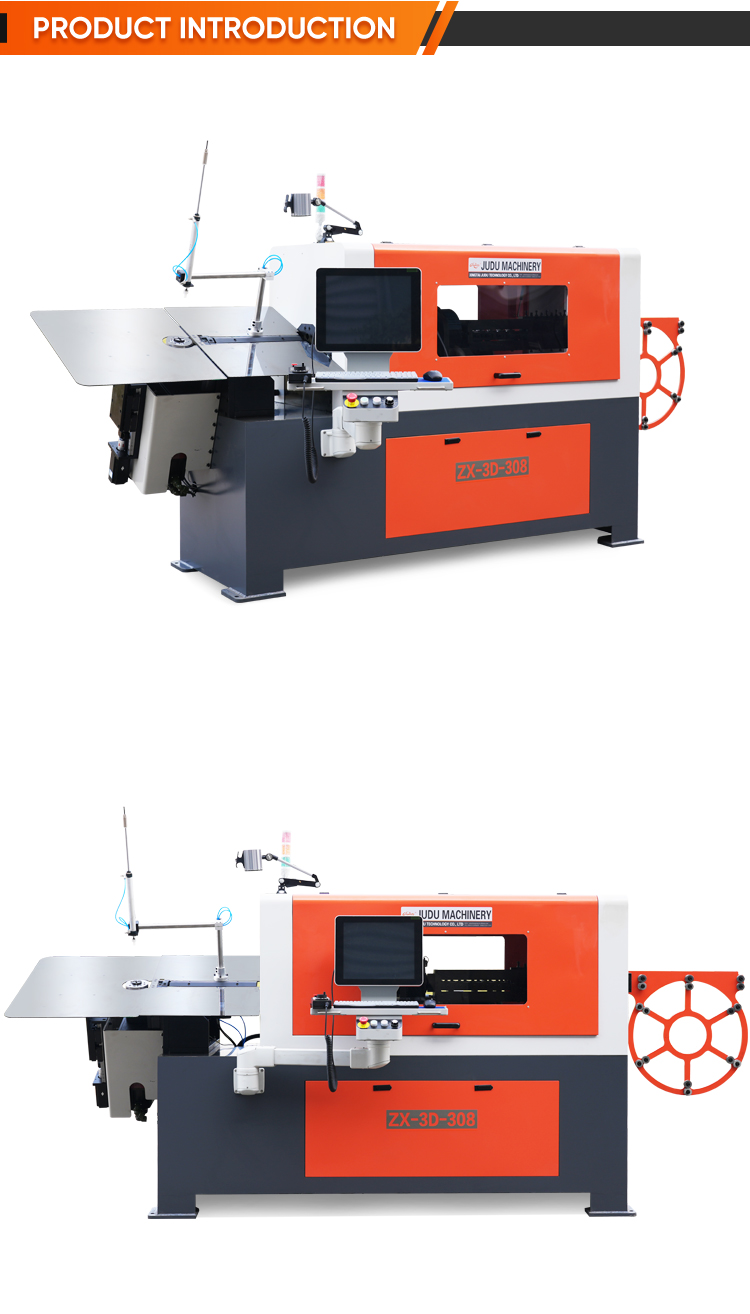

Detailed photos of this model 7 axis 3D wire bending machine:
Customer positive feedback
Company Profile
Xingtai Judu Technology Co. Ltd is located in the historical industrial zone, Hebei province. Founded in 1999, we are a professional manufacturer of series of automatic 2d & 3d cnc wire bending machine ,CNC stirrup bending machine and bucket handle making machine series. For twenty years in development, our company has always been adhering to credit the first best quality in after sale service, innovation, self-improvement, adhere an independent intellectual property right as the core of scientific and technological innovation. The current steel hoop bending machine and horizontal lathes for the company's main product are sold throughout the country, some products exported to Asia, Africa, and other countries and regions, we are abide by integrity and innovation, entrepreneurial spirit, relying on leading research and development capabilities efficient manufacturing, stable quality and good service to meet the needs of our customers at home and abroad, the company has now passed the ISO9001:2000 international quality management system certification.
"Greatcity" trademark has been identified as an unique brand name product that got the honorary title among many.
Within more than 20 years of development besides struggles, GreatCity is still keeping up its effort to maintain a brilliant business success in whole over the world due to its hardworking, courage and the will to improve its creation for customer satisfaction and maintain the reputation to be the best Chinese 3d cnc wire bending machine manufacturer.
Factory pictures
Our services
We are a Chinese manufacturer specializing in the production of 3D Wire Bending Forming Machine , with many years of industry experience. We have our own independent research and development design team and production team, as well as a complete after-sales service system. We can provide customized services according to your needs. If you are interested in our products, please feel free to contact us at any time.
