ZX-3D-308
Greatcity
8463300000

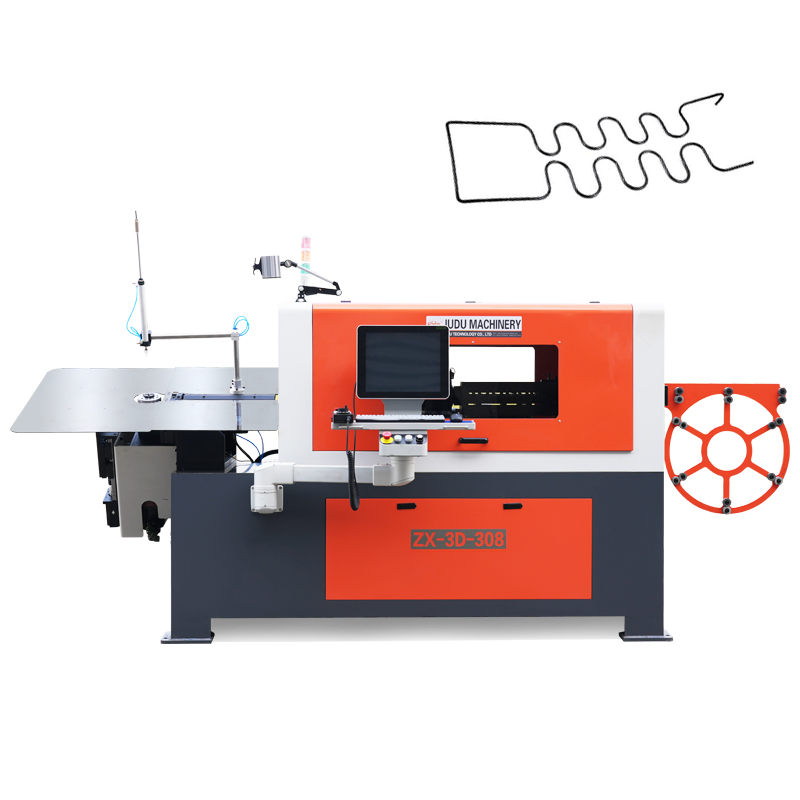

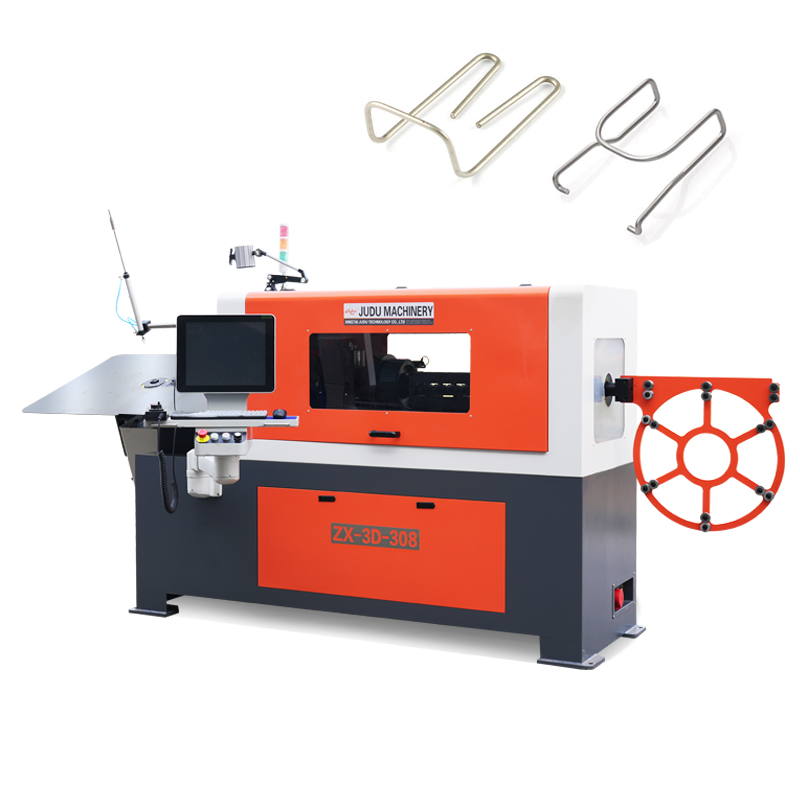

High precision Mul-function High speed 7 Axis 8 Axis Automatic 3d Cnc Wire Bending Machine ZX-3D-308 Model wire forming machine
3D cnc wire forming machine Advantages & Feature:
This model 3d cnc wire bending machine is 7 axis CNC control and can produce many different kinds of 2D and 3D wire forms expertly with high precision and fast speed. it Adopts famous brand Servo motorand screen display or customized controller such as Archuchi ,Inovance brand, CHINT, Sanyo and Siemens and so on.
4 pairs wire-feeding roller 3 groups straightening wheels, feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotatings more fast and light, turning angle is more precise and stable.
3D cnc wire forming machine can be used for
1) Auto Industry area 2) Metal wire industry
3) Furniture and kitchen4) Hardware industry
5) Mattress, sofa spring srea6) Architecture area
7) Hardware Artcrafe and so on.
3d cnc wire bending machine main technical parameters and configurations:
Model | ZX-3D-308 model 3d wire bending machine |
Number of shaft | 7 |
Diameter of the steel wire(mm) | Hard material:Φ2.0 ~Φ 6.0 Soft material :Φ2.0 ~ Φ8.0 |
Number of wire feeder | 2 suits |
Wire rotation angle | 360 degrees unlimited number of turns |
Applicable wire | Round wire, flat wire, square wire (applicable to any wire material) |
Data storage | 10000 data, 300 data as a group |
Maximum wire feed speed | 100m/min |
Wire Feeding servo motor power | 4.4kw |
Bending servo motor power | 2.4kw |
cutting servo motor | 1.0kw |
Swing wire motor | 2.9kw |
Platform lifting motor power | 1.0kw |
internal mold rotary Servo motor power | 1.8kw |
liftingh up and down for internal mold and outernal mold | 1.0kw |
| working platform moving servo motor | 1.0kw |
Action direction | Both the inner and outer molds can be raised and lowered, and the positive and negative bending |
Feeding accuracy | ±0.1 |
Internal mold angle rotation | ±180° |
Input power | 380V,3phase 50HZ/60HZ or customized |
linear slide rail ,power switch | Taiwan brand |
Controller system | industrial wire forming system(Yaqi) |
| System Language | Chinese/English(with upload and download functions) |
| Computer system | Yaqi(with upload and download functions) |
| machine based material | A3 sheet metal |
| WIre-feeding wheel,cutting blade ,bending die, wire passing die | hardened and heat treatment |
| bending dies, wire passing die | Ø 3, ø 4, ø 5, ø 6, ø 7, ø 8 are each equipped with one according to the model |
Machine weight | 2000kg |
Machine size | 3900(L)*1200(W)*1700mm(H) |
Detailed photos of this model 7 axis 3d cnc wire bending machine:
