Judu High Precision7 Axis 8 Axis Automatic 3d Wire Bending Machine ZX-3D-308 Model 3-8mm 3d Cnc Wire Forming Machine From Factory
3D wire bending machine Advantages & Feature:
This 3d wire bending machine is to produce many different kinds of 2D and 3D wire forms expertly with high precision and fast speed. it Adopts famous brand Servo motorand screen display or customized controller such as Archuchi , CHINT, Sanyo and Siemens and so on.
3 pairs wire-feeding roller 3 groups straightening wheels, feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotatings more fast and light, turning angle is more precise and stable.

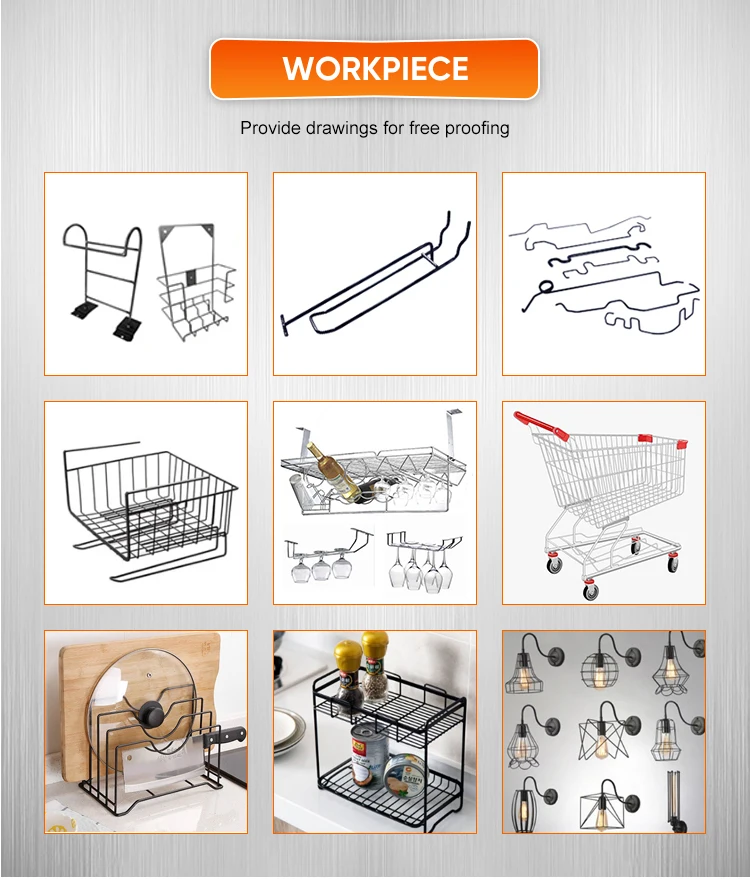

3D wire bending machine can be used for
1) Auto Industry area
2) Metal wire industry
3) Furniture and kitchen
4) Hardware industry
5) Mattress, sofa spring srea
6) Architecture area
7) Hardware Artcrafe and so on.
3D wire bending machine main technical parameters and configurations:
Model | ZX-3D-308 model 3d wire bending machine |
Number of shaft | 7 |
Diameter of the steel wire(mm) | Hard material:Φ2.0 ~Φ 6.0 Soft material :Φ2.0 ~ Φ8.0 |
Number of wire feeder | 2 suits |
Wire rotation angle | 360 degrees unlimited number of turns |
Applicable wire | Round wire, flat wire, square wire (applicable to any wire material) |
Data storage | 10000 data, 300 data as a group |
Maximum wire feed speed | 100m/min |
Wire Feeding servo motor power | 4.4kw |
Bending servo motor power | 2.4kw |
cutting servo motor | 1.0kw |
Swing wire motor | 2.9kw |
Platform lifting motor power | 1.0kw |
internal mold rotary Servo motor power | 1.8kw |
liftingh up and down for internal mold and outernal mold | 1.0kw |
Action direction | Both the inner and outer molds can be raised and lowered, and the positive and negative bending |
Feeding accuracy | ±0.1 |
Internal mold angle rotation | ±180° |
Input power | 380V,3phase 50HZ/60HZ or customized |
linear slide rail ,power switch | Taiwan brand |
Controller system | industrial wire forming system(Yaqi) |
| System Language | Chinese/English(with upload and download functions) |
| Computer system | Yaqi(with upload and download functions) |
| machine based material | A3 sheet metal |
| WIre-feeding wheel,cutting blade ,bending die, wire passing die | hardened and heat treatment |
| bending dies, wire passing die | Ø 3, ø 4, ø 5, ø 6, ø 7, ø 8 are each equipped with one according to the model |
Machine weight | 2000kg |
Machine size | 3900(L)*1200(W)*1700mm(H) |
Detailed photos of this model 7 axis 3D wire bending machine:

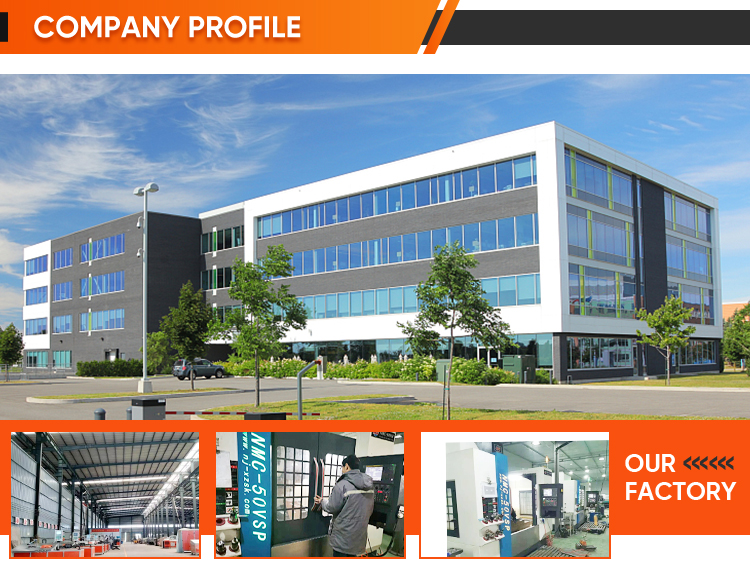

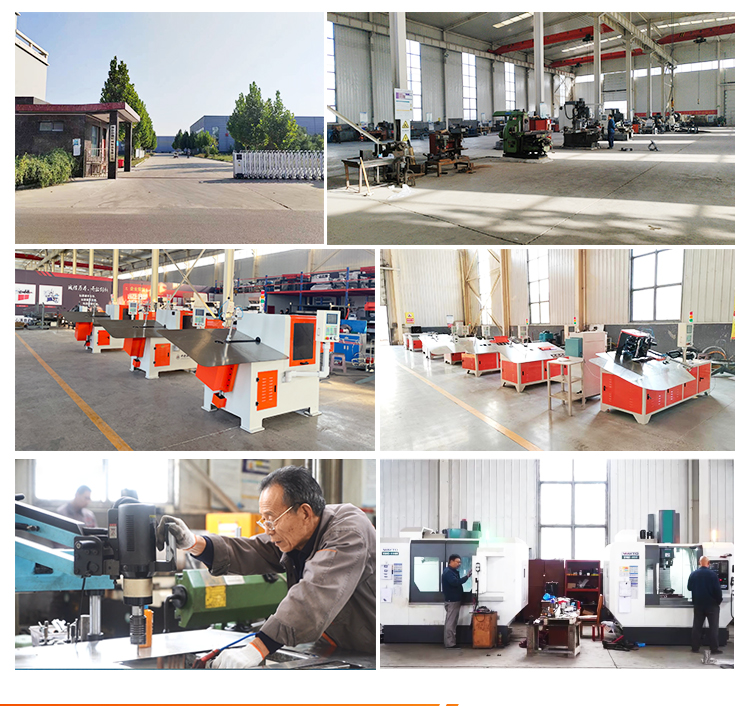

Company Information
Xingtai Judu Technology Co. Ltd is located in the historical industrial zone, Hebei province. Founded in 1999, we are a professional manufacturer of series of automatic 2d & 3D wire bending machine ,CNC stirrup bending machine and bucket handle making machine series. For twenty years in development, our company has always been adhering to credit the first best quality in after sale service, innovation, self-improvement, adhere an independent intellectual property right as the core of scientific and technological innovation. The current steel hoop bending machine and horizontal lathes for the company's main product are sold throughout the country, some products exported to Asia, Africa, and other countries and regions, we are abide by integrity and innovation, entrepreneurial spirit, relying on leading research and development capabilities efficient manufacturing, stable quality and good service to meet the needs of our customers at home and abroad, the company has now passed the ISO9001:2000 international quality management system certification.
"Greatcity" trademark has been identified as an unique brand name product that got the honorary title among many.
Within more than 20 years of development besides struggles, GreatCity is still keeping up its effort to maintain a brilliant business success in whole over the world due to its hardworking, courage and the will to improve its creation for customer satisfaction and maintain the reputation to be the best Chinese machinery manufacturer.
Our services

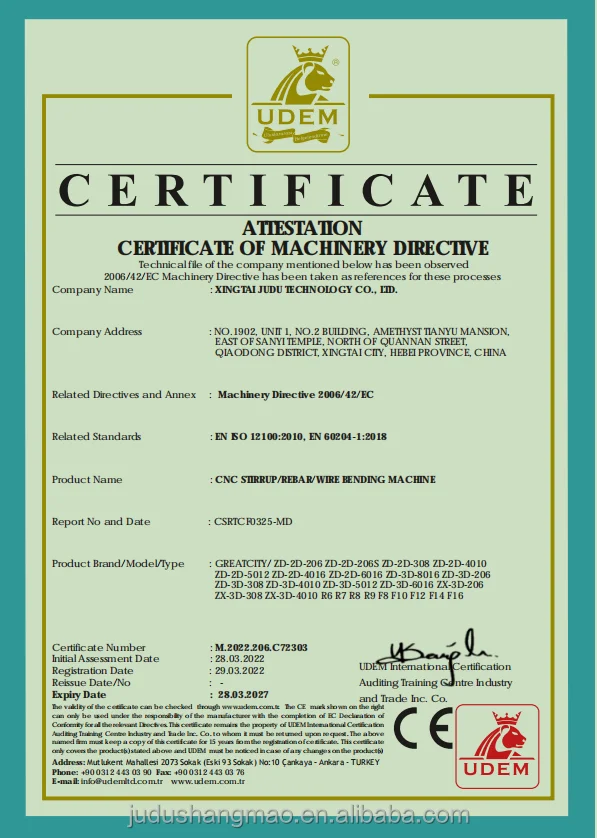

3D cnc wire bending machine certificate:

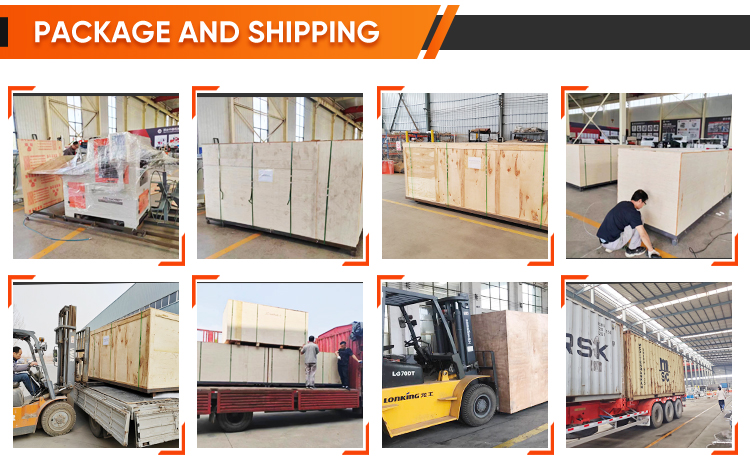

Packaging for 3D wire bending machine
We are a Chinese manufacturer specializing in the production of 3D wire forming machines, with many years of industry experience. We have our own independent research and development design team and production team, as well as a complete after-sales service system. We can provide customized services according to your needs. If you are interested in our products, please feel free to contact us at any time.
