| wire size: | |
|---|---|
| Inside diameter: | |
| Power: | |
| Feeding: | |
| Machine size: | |
2-8mm
greatcity
84633300000

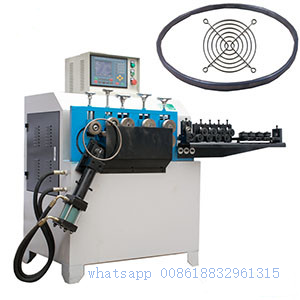

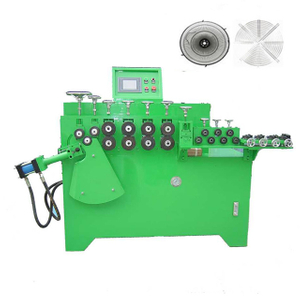

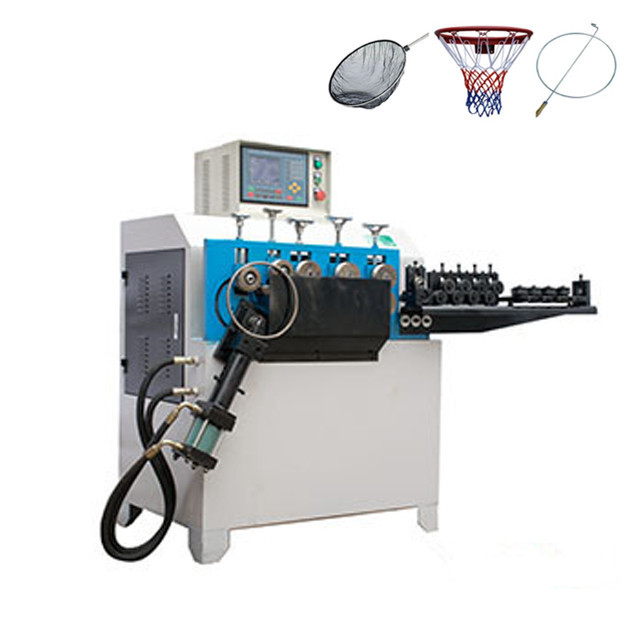

Automatic Hydraulic Round Wire Ring Making Machine Steel Strip Circle Making Machine
Machine Features for ring making machine:
1. PLC+Touch Screen Control;
2. Automatic feeding ( feeding the wire)
3. Automatic Wire straightening;
4. Automatic ring forming ( hydraulic system 2.2kw)
5. Automatic moving (pneumatic robot arm)
6. Automatic welding (AC resistance power)
7. Automatic unloading (pneumatic robot arm)
8. Sound-light alarm function: the machine will give alarm when wire lack,
power is not stable, etc to protect machine and operator safety.
9. Counting function: can preset the needed product quantity. When this quantity is reached,
the machine will stop automatically.
10. Monitoring function: the touch screen will monitor the whole process of actions
and the welding current of each welding process. It will give alarm, when the monitoring
function is abnormal.
Adopting PLC controlling system and 7'' touch screen operation, it is friendly and convenient to operate.
Input the basic parameter, the machine can finish the process automatically.
Adjustable for ring making machine:
Type of Ring: screw ring & o ring
Type of Material: round wire & flat wire
Technical Parameter of ring making machine
Model | Wire size (mm) | Inside diameter (mm) | Power (kw) | Feeding speed(m/min) | Machine size (mm) |
GT-RF-6 | 2-6 | 50-850 | 1.5+1.5 | 40 | 1210*730*1450 |
GT-RF-8 | 2-8 | 65-900 | 2.25+1.5 | 25 | 1470*750*1500 |
GT-RF-10 | 2-10 | 100-900 | 4+3 | 26 | 1470*750*1500 |
GT-RF-12 | 5-12 | 100-900 | 5.5+3 | 25.5 | 1630*750*1500 |
Notice: apart from above ,we can tailor-made | |||||
Our vision:
We are factory manufacturer of many kinds of wire machines including round wire steel strip ring making machine,located in Xingtai. We have been working hard to
provide reliable quality machine with reasonable price and qualified service for
our worldwide customers!
Our Advantages:
High quality parts, Compact Machine Structure, High Stability and Reliability.
We have professional teams experting in production, design and R&D for over 10 years to
meet clients' different demands.
High precison and excellent performance for producing all kinds of machines.
Machine test run (at least for one week) before we ship the machine, in an effort to insure
every mechanical and electrical parts are in perfect condition.
After order placed, we accept to adjust the products according to customer's demand,and remain the program and tool settings on machine in order to insure a quick
start of machine once customer receive it.
Pre-sale Service for ring making machine
1.Supply item design,process design.
2.Help you to chose the fitest machine.
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you .
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for a year.
2.Quality problem,we will sent you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
Welcome your inquiry and come to visit our company for automatic ring making machine!
