| wire size: | |
|---|---|
| Inside diameter: | |
| Power: | |
| Feeding: | |
| Machine size: | |
2-8mm
greatcity

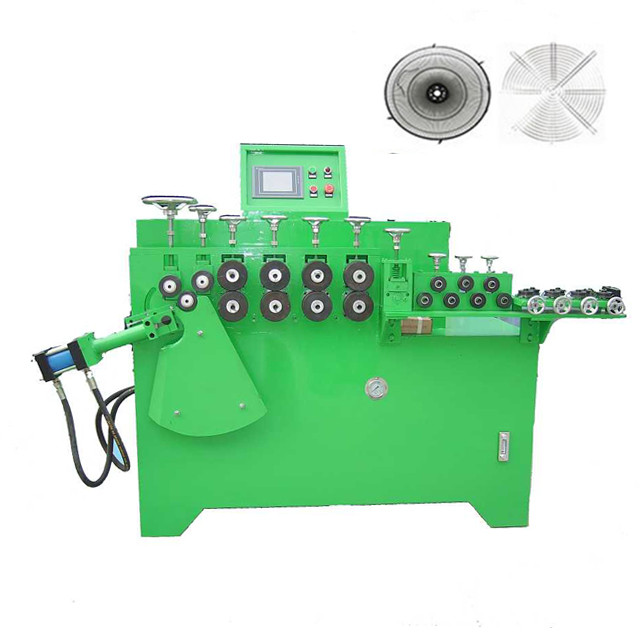

Hot Sale Automatic Steel Ring Making Machine From China Manufacturer
This steel wire making machine adopts mechanical driven system , which is the expert machine produce rings with very fast speed.
it was widely used in Cloths and packing area.
Model | Wire size (mm) | Inside diameter (mm) | Power (kw) | Feeding speed(m/min) | Machine size (mm) |
GT-RF-6 | 2-6 | 50-850 | 1.5+1.5 | 40 | 1210*730*1450 |
GT-RF-8 | 2-8 | 65-900 | 2.25+1.5 | 25 | 1470*750*1500 |
GT-RF-10 | 2-10 | 100-900 | 4+3 | 26 | 1470*750*1500 |
GT-RF-12 | 5-12 | 100-900 | 5.5+3 | 25.5 | 1630*750*1500 |
Notice: apart from above ,we can tailor-made | |||||
Machine Features:
1. PLC+Touch Screen Control;
2. Automatic feeding ( feeding the wire)
3. Automatic Wire straightening;
4. Automatic ring forming ( hydraulic system 2.2kw)
5. Automatic moving (pneumatic robot arm)
6. Automatic welding (AC resistance power)
7. Automatic unloading (pneumatic robot arm)
8. Sound-light alarm function: the machine will give alarm when wire lack,
power is not stable, etc to protect machine and operator safety.
9. Counting function: can preset the needed product quantity. When this quantity is reached,
the machine will stop automatically.
10. Monitoring function: the touch screen will monitor the whole process of actions
and the welding current of each welding process. It will give alarm, when the monitoring
function is abnormal.
1,What is the voltage/phase for key ring making machine?
220V 50Hz/single phase ,380V 50Hz/three phase ,
2,What is the Mode of transportation ?
LCL and FCL by ship ,By air
3,How long can we get the goods?
we usually delivery in 3-7 working days, we will inform you shipping time based on your seaport.
4,How long is the guarantee?
we promise guarantee as one years for non-human damage factor.
5,How should I do if meet some trouble while using?
we can supply English manual book and also take a video for showing how to resolve the problems
or dispatch our worker to your factory.
6,What about Payment term?
T/T(Telegraphic Transfer ) --30% as prepayment by T/T, balance after finish the machine
Western Union ,L/C ,Trade Assurance,Etc.
Xingtai Judu Technology Co.,Limited was founded in 1990.Specialized in machinery export,has been in this field for more than 20 years.The key ring making machine is our advantages machine.These machines now export to all over the world such as Asia,Africa,South America,Australia and so on.
Our factory located in Xingtai, Hebei province,China where is the 2th biggest steel manufacture all over the world.We can assure the quality and competitive price.
We are currently seeking for global partners like agent and dealers.
Welcome your inquiry and come to visit our company!
Mob/whatsapp/wechat: 008615512868421
